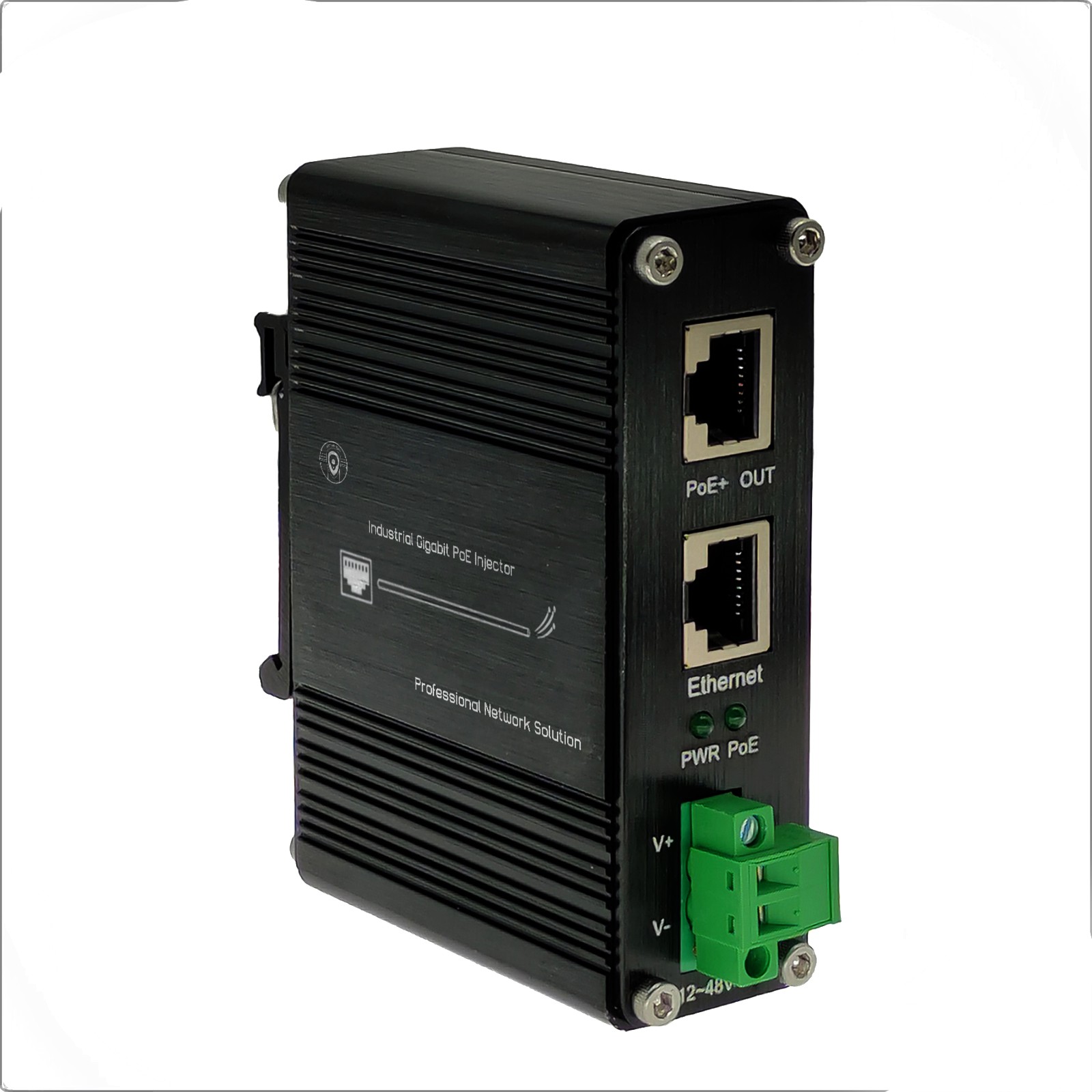

12~48V DC Wide-Range Industrial Gigabit 30W PoE Injector

12~48V DC Wide-Range Industrial Gigabit 30W PoE Injector

Model:WXA-INJ30-30
12~48V DC Power Input

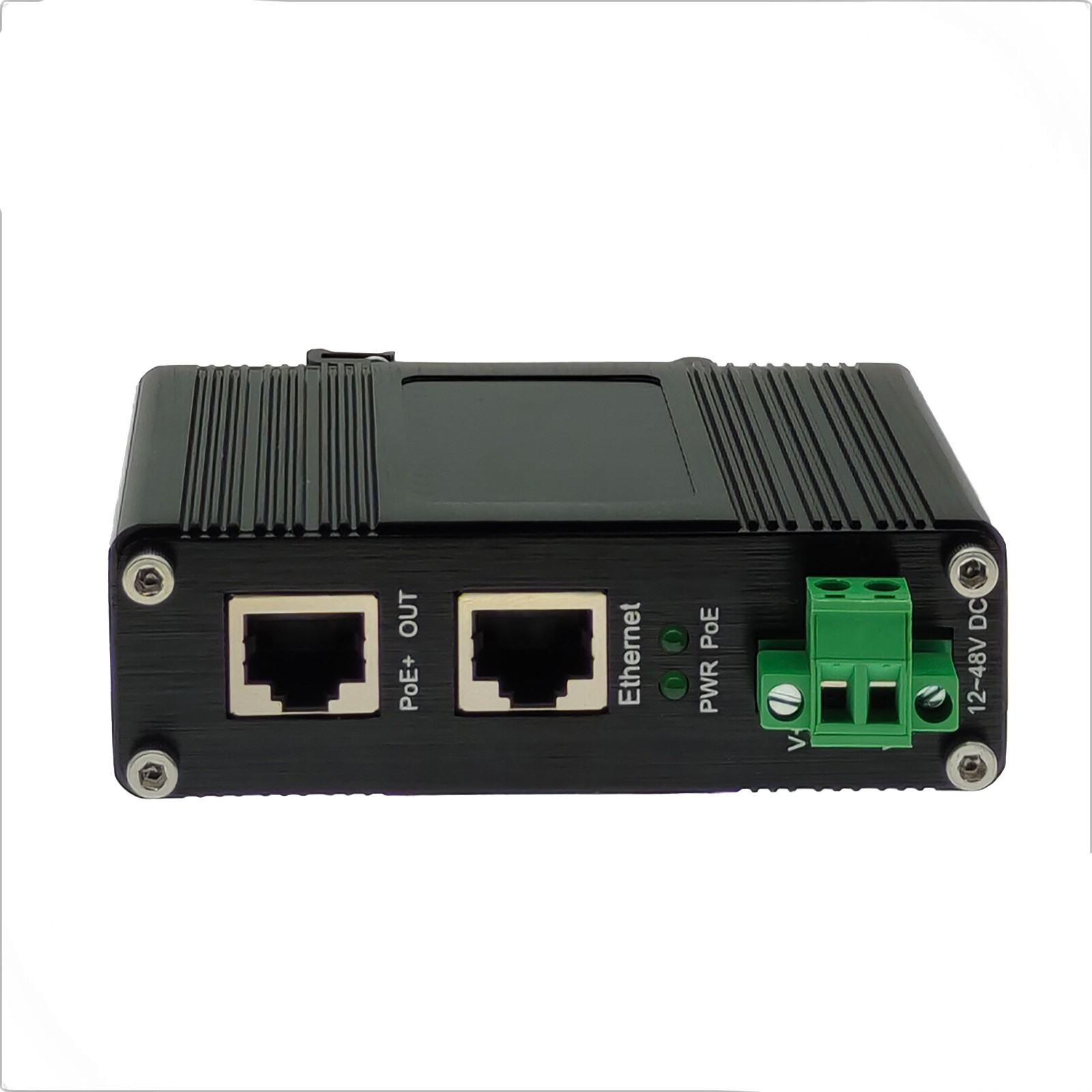

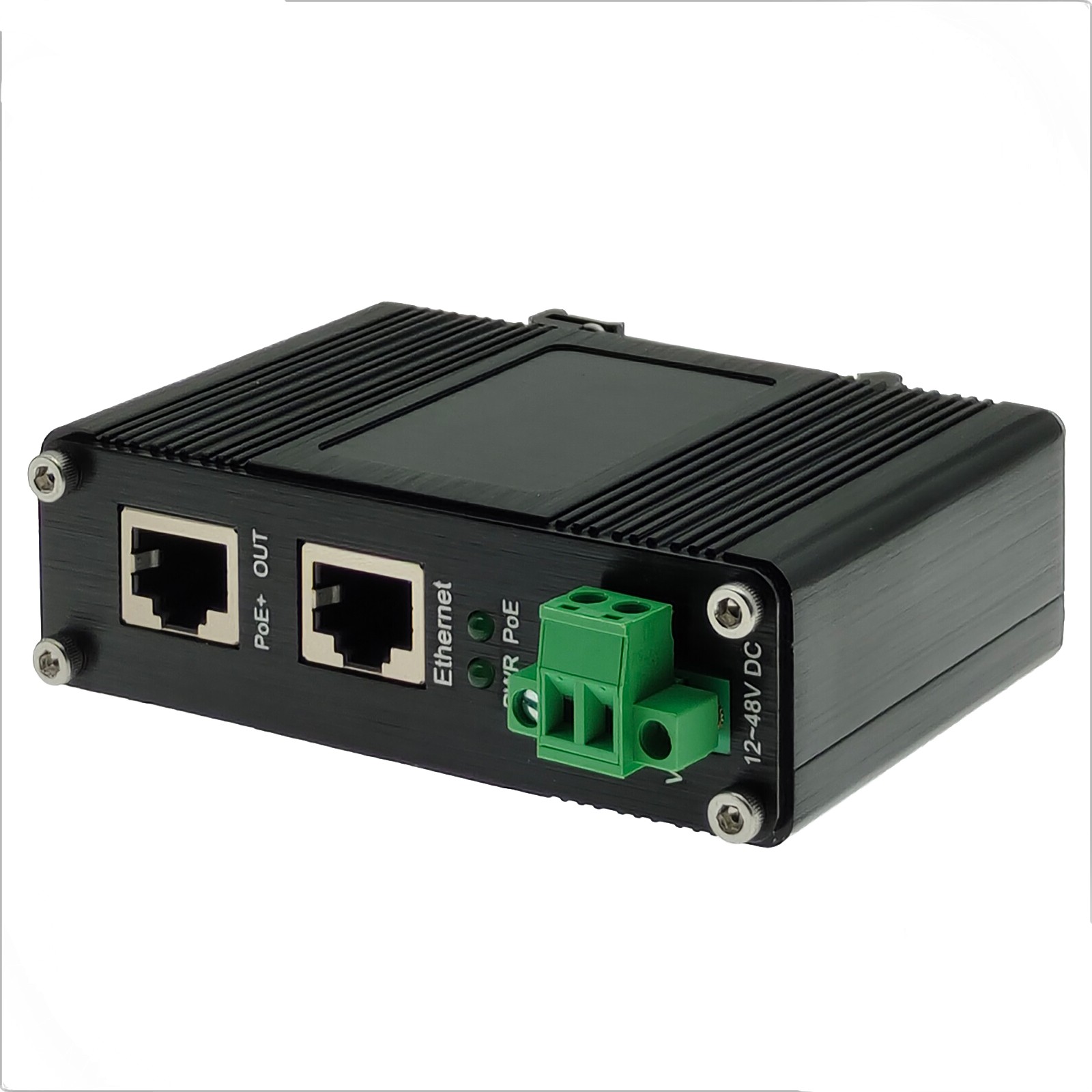

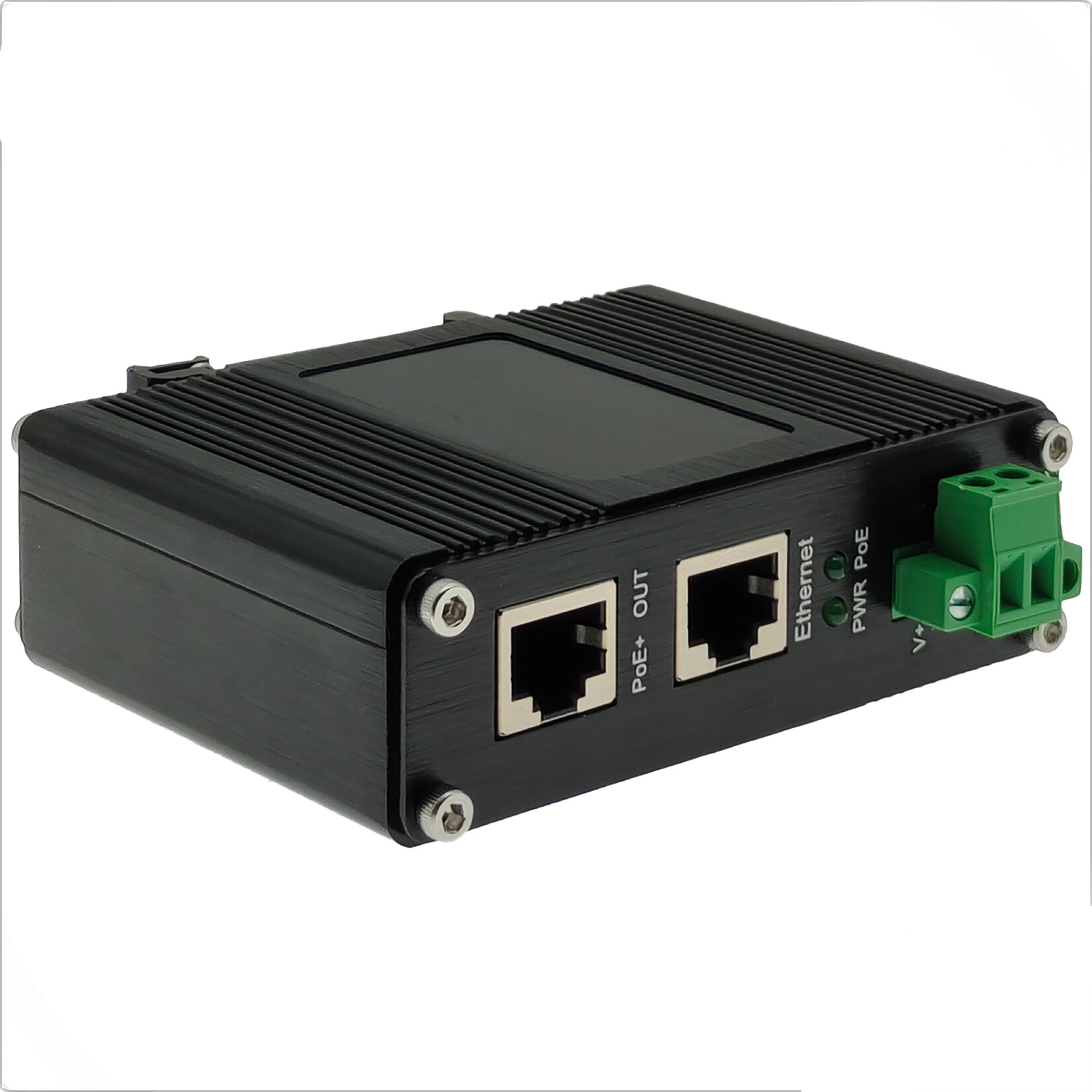

1 RJ45 Ethernet Data Input Port + 1 RJ45 PoE Output Port (Data + Power)

Supports IEEE 802.3af/at Power over Ethernet (PoE+) Power Sourcing Equipment

Supports 10/100/1000Base-TX(2.5/5/10G Optional)


￥ 0.00
0.00

Product Description

Model:WXA-INJ30-30
12~48V DC Power Input

1 RJ45 Ethernet Data Input Port + 1 RJ45 PoE Output Port (Data + Power)

Supports IEEE 802.3af/at Power over Ethernet (PoE+) Power Sourcing Equipment

Supports 10/100/1000Base-TX(2.5/5/10G Optional)


WXA-INJ30-30 is a hardened gigabit high-power PoE injector. It connects IEEE 802.3af/at PoE devices (such as cameras and APs) to non-PoE LAN switches, supporting 100-meter transmission. Both of its 10/100/1000Base-T ports (Ethernet/PoE Out) comply with the IEEE 802.3ab standard. In addition, the PoE Out port meets the IEEE 802.3af/at/bt standards, enabling compatibility with high-power devices. Being industrial-hardened, the WXA-INJ30 series excels in harsh environments.

 12~48V DC Power Input

 1 RJ45 Ethernet Data Input Port + 1 RJ45 PoE Output Port (Data + Power)

 Supports IEEE 802.3af/at Power over Ethernet (PoE+) Power Sourcing Equipment

 Supports 10/100/1000Base-TX(2.5/5/10G Optional)

 Comprehensive LED Indicators for PoE Diagnostics

 Industrial-grade Hardened Design (-40℃ to 80℃ / -40℉ to 176℉) Operating Temperature

 Compact Dimensions: 95 × 70 × 30 mm

 Aluminum Alloy Housing

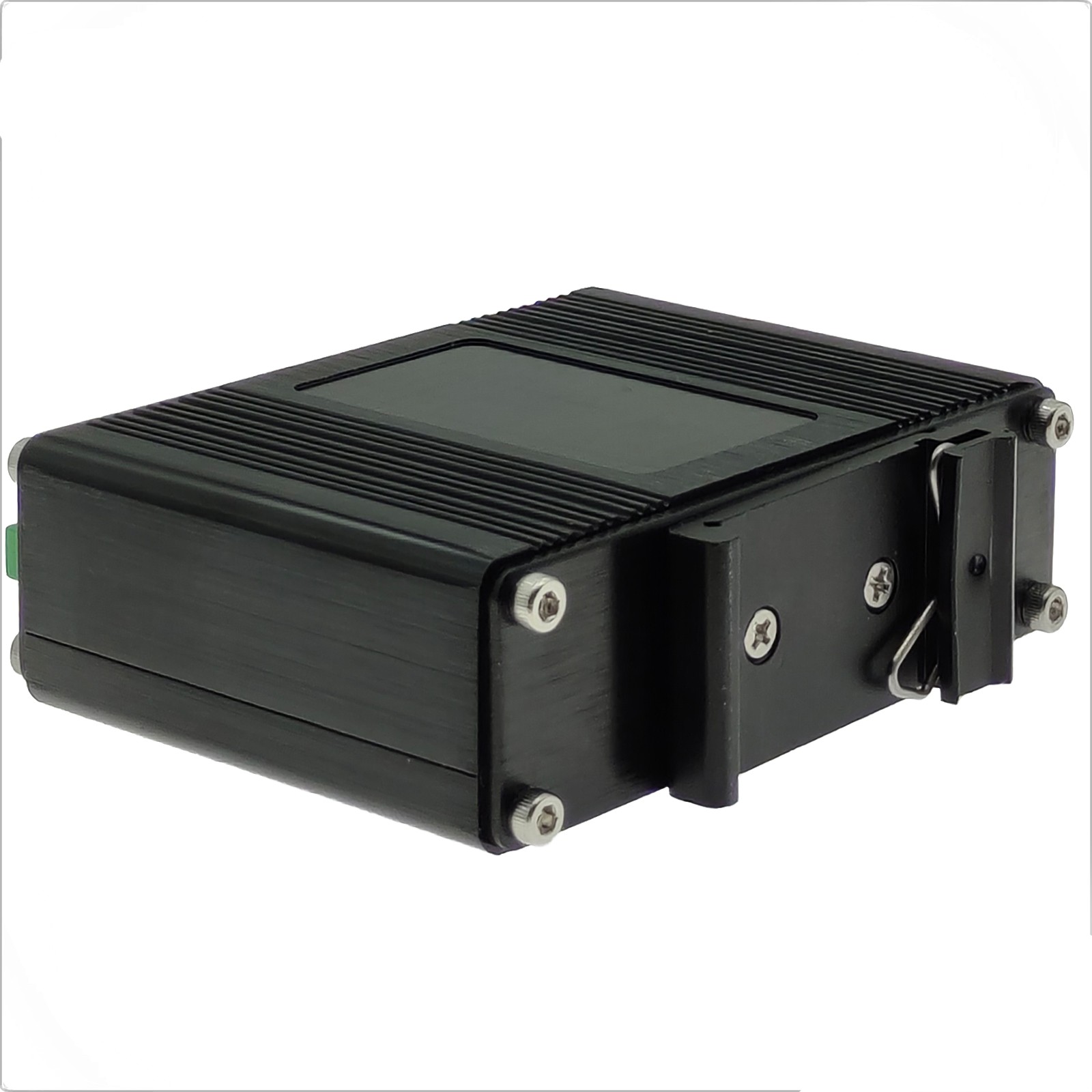

 Supports DIN-rail and Wall Mounting Installation


Security monitoring, industrial wireless coverage, outdoor AP transmission, intelligent park networking, harsh environment Ethernet power supply

Ethernet

Standards

IEEE 802.3/802.3u/802.3ab; 802.3x Flow Control


Forwarding Performance

Full/Half-duplex; 1,488,000pps @ 1000Mbps


Cabling & Distance

Cat5+; Max 100m (Cat5 UTP)


Interfaces

2×RJ45

Electrical and Mechanical

Input Voltage

12~48VDC (2-pin Terminal Block)


Max Power Consumption

36W

PoE

Standards

IEEE 802.3af/at


Power Delivery/Pin Assignment

4/5 (+), 7/8 (-) (Alternative B)


Max Power per Port

30W

Environmental

Operating Temperature

-40°C~80°C

(-40°F~176°F)


Relative Humidity

5%~95%

(non-condensing)


MTBF

＞200,000hrs

Protection

Casing & Rating

IP40 Aluminum Case


Surge/ESD Protection

RJ45: 1KV; Power: 500V; ESD: 4KV/8KV

Physical

Dimensions (W×D×H)

95×70×30mm


Weight

0.25Kg


Mounting Options

DIN-Rail / Wall-mount

Indicators

LED Functions

Power Status, PoE Status


Model

Description

WXA-INJ30-30

1 RJ45 Ethernet Data Input Port + 1 RJ45 PoE Output Port (Data + Power)

Mounting Options

► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.

Power Options

► Power Supply is to be purchased separately




Industrial Gigabit 30W PoE Injector
