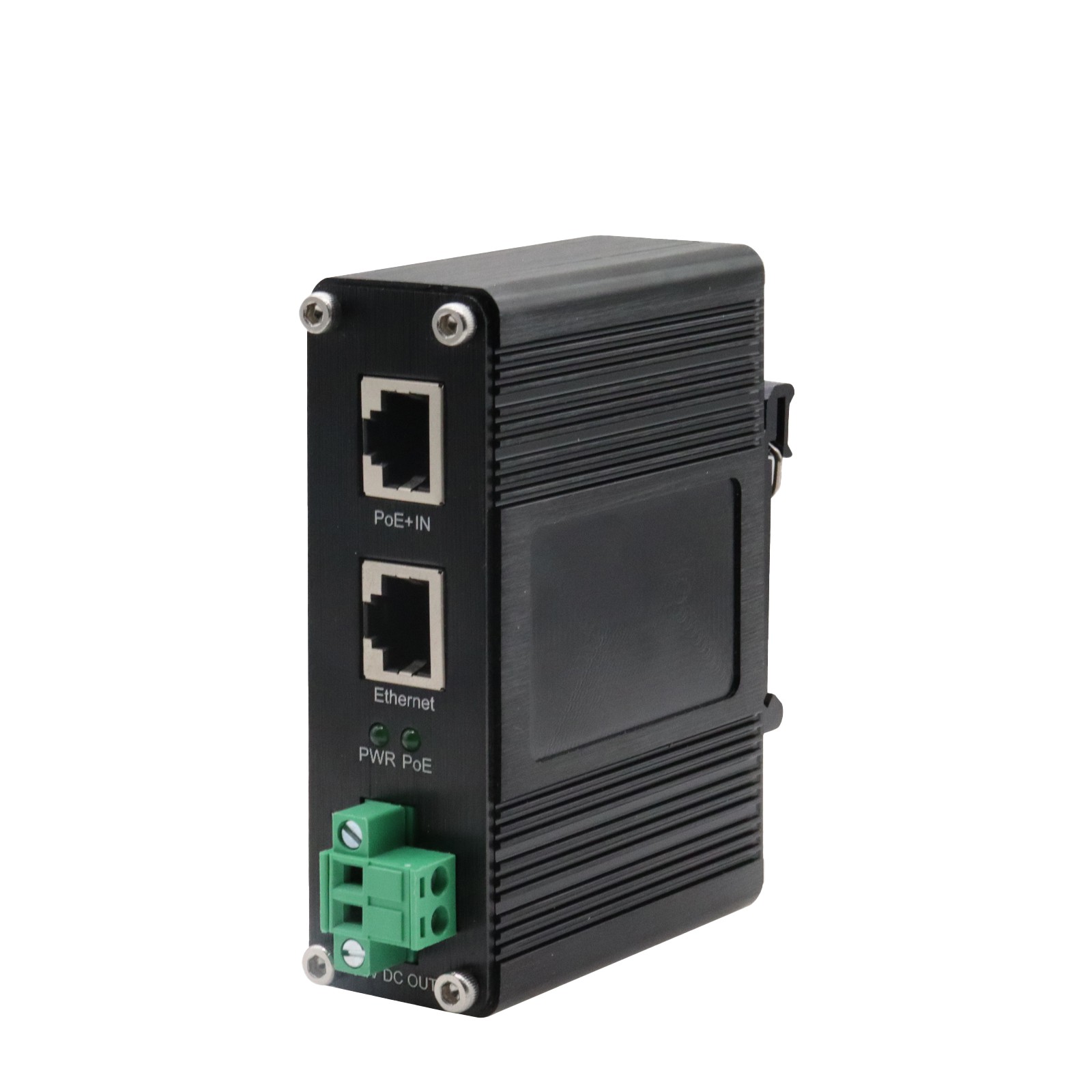

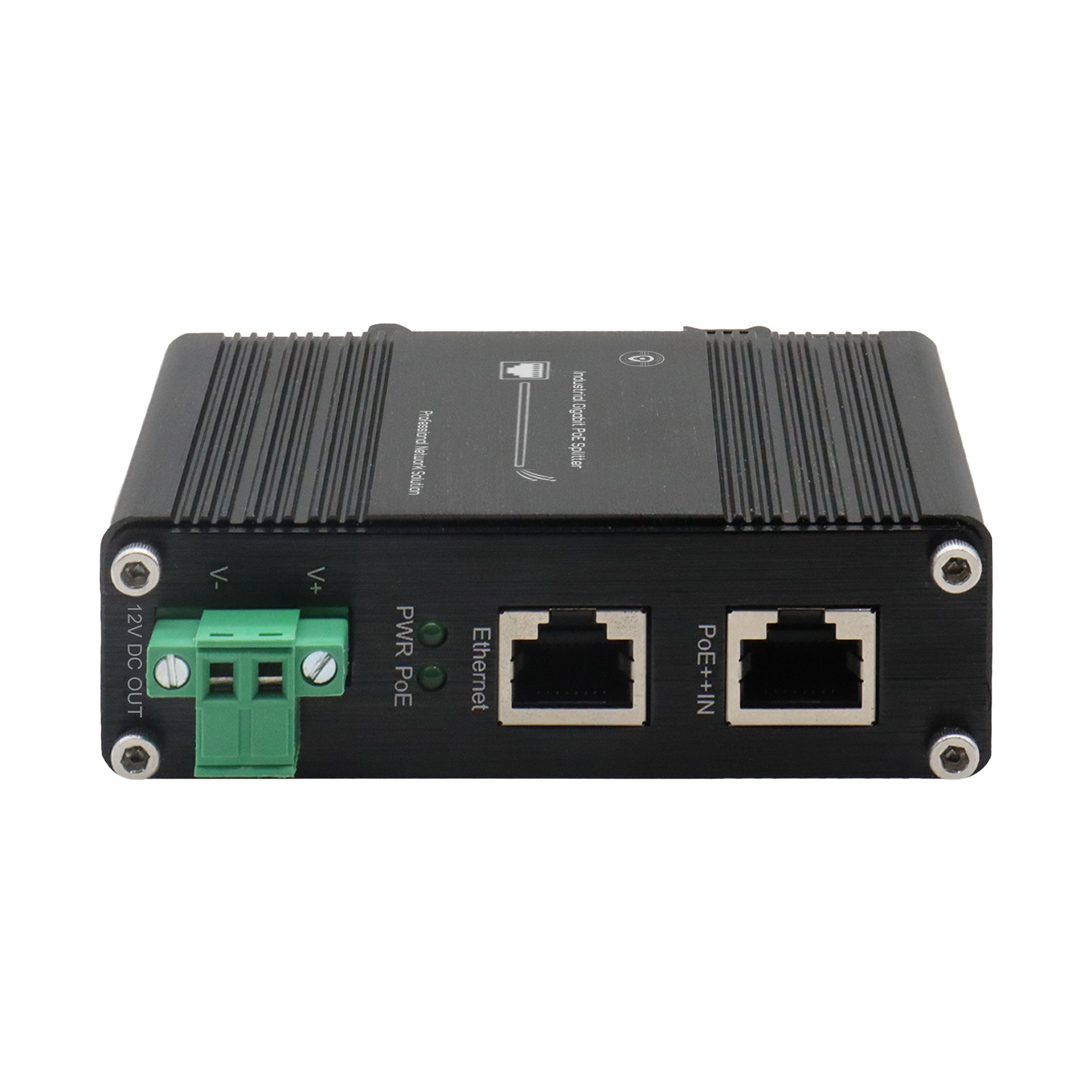

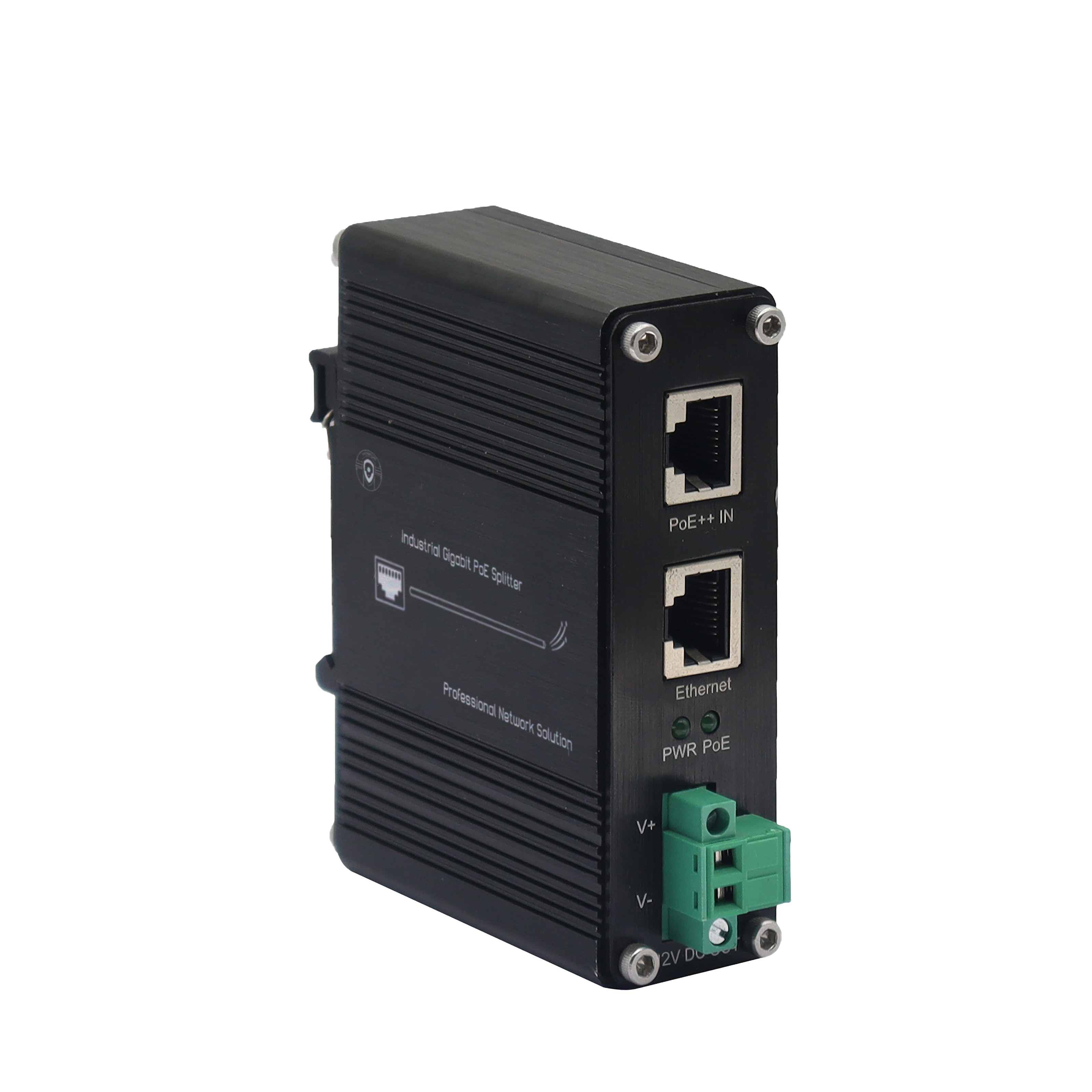

Industrial Gigabit 90W PoE++ Splitter

Industrial Gigabit 90W PoE++ Splitter

Model:WXA-SPLT90 Series

Splits power and data from PoE Input

1×RJ-45 PoE Port (Data & Power In) + 1×RJ-45 Port (Data Out)

Optional Voltage Output (12/19/24/36VDC, 2 - pin Terminal Block)

Supports IEEE 802.3at/bt PoE

￥ 0.00
0.00

Product Description

Model:WXA-SPLT90 Series

Splits power and data from PoE Input

1×RJ-45 PoE Port (Data & Power In) + 1×RJ-45 Port (Data Out)

Optional Voltage Output (12/19/24/36VDC, 2 - pin Terminal Block)

Supports IEEE 802.3at/bt PoE

WXA-SPLT90 series is an industrial Grade, Gigabit Ethernet, PoE Splitter series, designed to deliver data via RJ-45 Ethernet connector and electrical power via screw terminal block to non-PoE devices. This device series saves the high cost of running separate electrical service to edge devices.

Acting as PD equipment, the series can be powered by standard PoE IEEE802.3at/bt PSE (Power Source Equipment) switches or work when paired with compatible PoE Injectors. The data transmission, up to Gigabit speeds, runs simultaneously with power output (available in 12/19/24/36VDC options for different product models) up to the Ethernet limit of 100 meters. With simple settings, each model is a plug-and-play device requiring no tools or software configuration, providing ease of use, flexible installation and high reliability.


► Splits power and data from PoE Input

► 1×RJ-45 PoE Port (Data & Power In) + 1×RJ-45 Port (Data Out)

► Optional Voltage Output (12/19/24/36VDC, 2 - pin Terminal Block)

► Supports IEEE 802.3at/bt PoE

► Complies with 10/100/1000Base - T Gigabit Ethernet

► Distance up to 100 meters

► Short-circuit protection for power output

► Extensive LED indicators for PoE diagnostics

► IP40 rugged metal housing and fanless

► Support DIN-Rail & Wall-mount installation

Operating temperature -40 ~ 80°C (-40 ~ 176°F)


Ethernet & PoE

Standards/Processing Type

IEEE 802.3at/bt (PoE); Forward (Half/Full-duplex)


Forward Filter Rate/Cabling/Distance

1,488,000 pps (1000Mbps); Cat5+ (10/100/1000Base-T); 100m (Cat5 UTP)


Connector/PoE Output

2x RJ45;

36W 12VDC (PoE output)

36W 19VDC(PoE output)

40W 24VDC(PoE output)

70W 36VDC(PoE output)



Environmental

Operating/Storage Temp

-40°C~80°C (-40°F~176°F); -40°C~85°C (-40°F~185°F)


Humidity/MTBF

5%~95% non-condensing; >200,000 hrs

Electrical & Mechanical

Power Consumption/Dimensions/Weight

41W Max(12/19/24V Model),75W(36V Model)

; 95×70×30mm; 0.25Kg


Casing/Mounting/LED Indicators

Aluminum Case (DIN-Rail/Wall-mount); Power(5/12/19/24/36VDC Output), PoE(Power In)

Regulatory Approvals

Certifications

ISO9001; FCC Part 15 Class A; EN55022:2006+A1:2007 Class A

Surge Protection

Protection Level

RJ45:1KV; Power:500V; ESD:4KV/8KV


Model

Description

WXA-SPLT90

1×RJ-45 PoE Port (Data & Power In) + 1×RJ-45 Port (Data Out)

Mounting Options

► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.

Power Options

► Power Supply is to be purchased separately



Industrial Gigabit PoE++ Splitter (IEEE 802.3at/bt) – 12/19/24/36VDC Voltage Output
