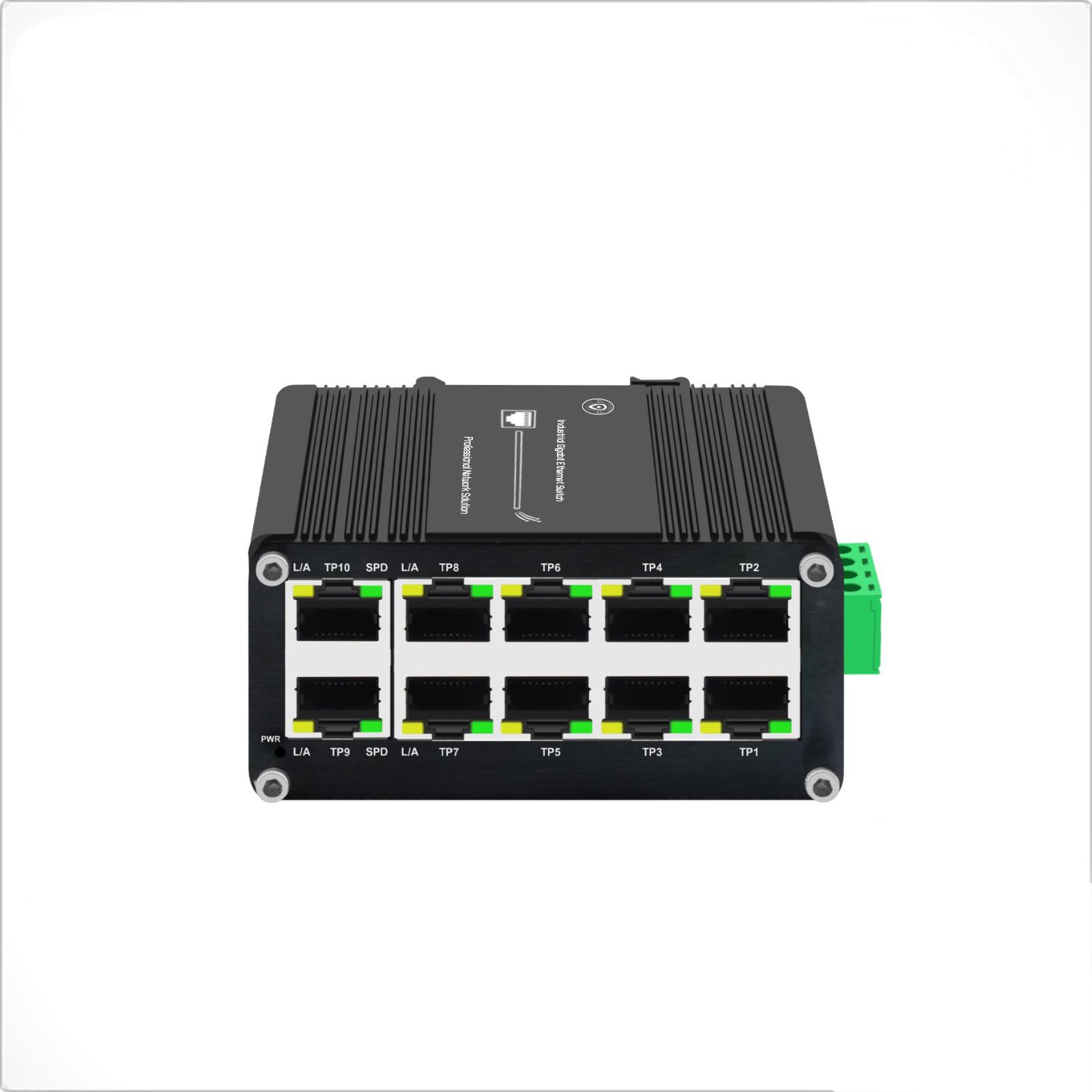

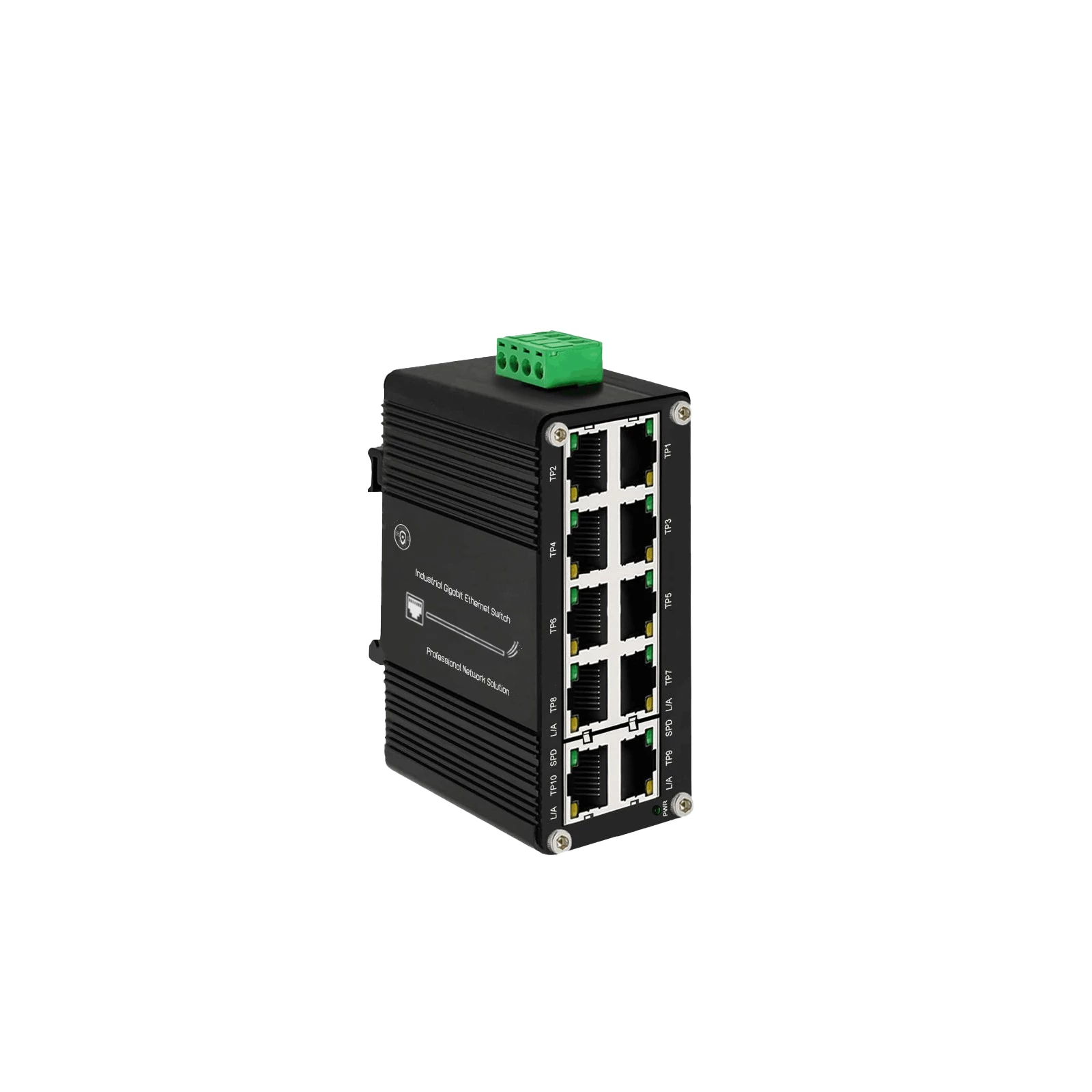

Mini Industrial 10-Port 10/100/1000T Compact Ethernet Switch

Model:WXA-I010G

► 10 x 10/100/1000BASE-T ports with Auto-MDI/MDI-X function

► Supports Auto-Negotiation and 10/100Mbps half/full duplex and 1000Mbps full duplex

► 12~48VDC wide range power input

￥ 0.00

Product Description

Model:WXA-I010G

► 10 x 10/100/1000BASE-T ports with Auto-MDI/MDI-X function

► Supports Auto-Negotiation and 10/100Mbps half/full duplex and 1000Mbps full duplex

► 12~48VDC wide range power input

The WXA-I010G Mini Industrial 10-Port 10/100/1000T Gigabit Ethernet Switch features a 12~48VDC wide-range power input. As an unmanaged industrial Ethernet switch, it adheres to key industrial standards, boasting reliable and user-friendly operation, robust vibration and shock resistance, and an extended operating temperature range—enabling seamless adaptation to diverse harsh industrial environments.

Compliant with CE and FCC certifications, the WXA-I010G undergoes 100% burn-in testing to guarantee consistent performance in industrial applications. It serves as a cost-effective solution for industrial Ethernet

connectivity needs.

► 10 x 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports

► 12~48VDC wide range power input with power booster function

► Supports 802.3x Flow control

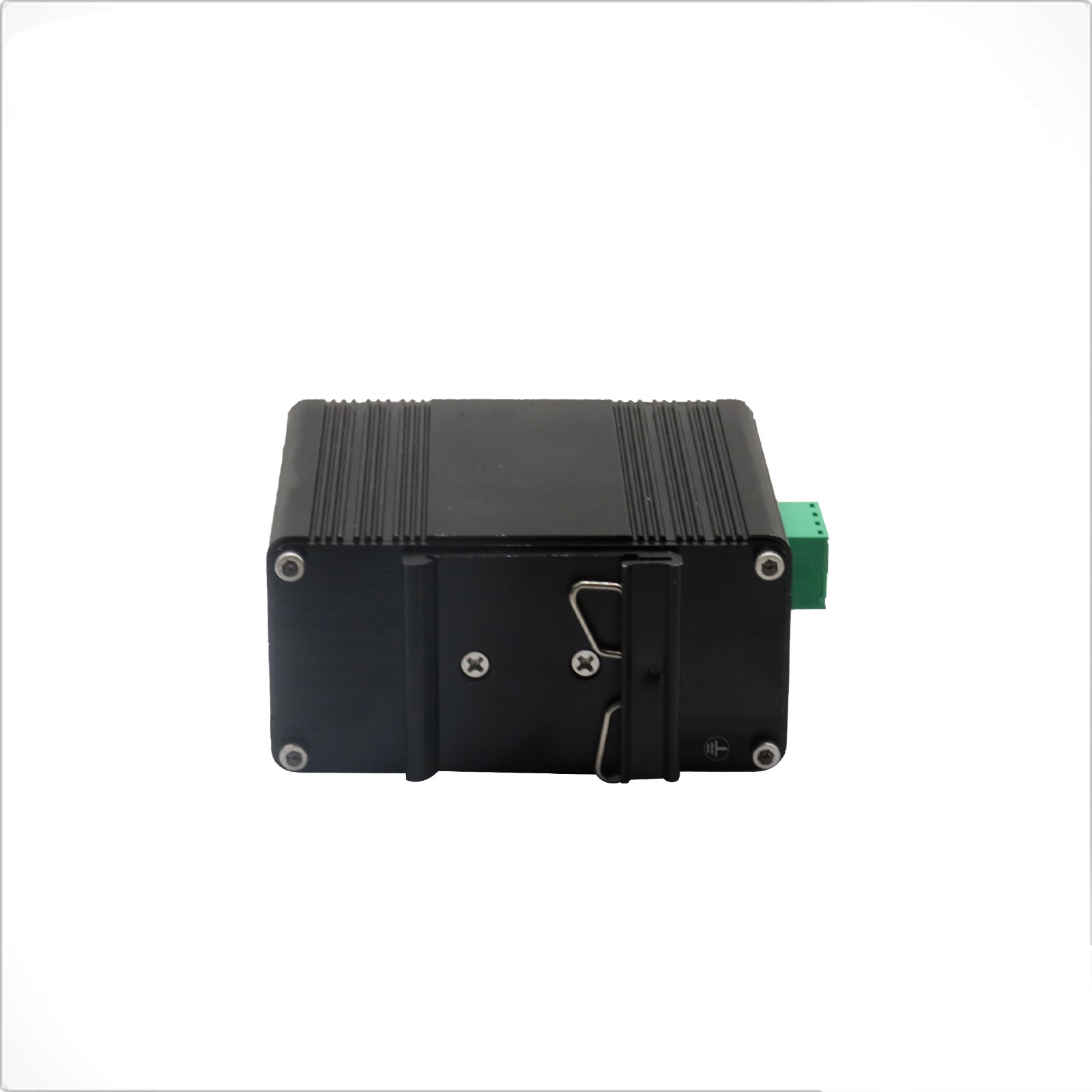

► Supports DIN-Rail installation

► Industry standard design, dustproof and close design IP40, rugged high-strength metal case

► -40°C to 80°C (-40°F to 176°F) operating temperature

Ethernet	Standards	IEEE 802.3/802.3u/802.3ab/802.3x/802.3az (EEE)
	Forward & Filtering Rate	14,880/148,800/1,488,000 pps (10/100/1000Mbps)
	Packet Buffer	2Mbits
	Packet Length	9216bytes
	MAC Address Table	4K entries
	Switch Fabric	20Gbps non-blocking
	Switch Throughput	14.88Mpps @64bytes
Interface	Connector	10x 10/100/1000BASE-T RJ45 (auto-MDI/MDI-X)
Environmental	Operating Temp	-40°C~80°C (-40°F~176°F)
	Storage Temp	-40°C~85°C (-40°F~185°F)
	Humidity	5%~95% non-condensing
	MTBF	>200,000 hrs

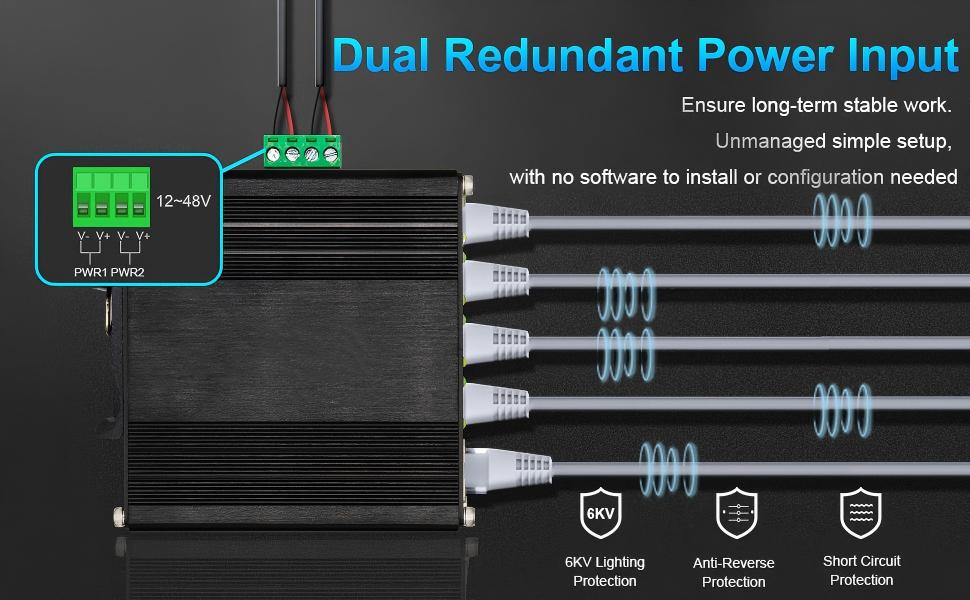

Electrical &Mechanical	Input Power	12~48VDC; Redundant power + reverse polarity protection
	Power Consumption	<10W
	Overload Protection	Automatic Resettable
	Reverse Polarity	Present
	Dimensions (W×D×H)	95×88×46mm
	Weight	0.3Kg
	Casing/Mounting	Aluminum Case; DIN-Rail mount
	LED Indicators	PWR (Power), L/A (Link/Activity), SPD (Data Rate)
Regulatory Approvals	Certifications	ISO9001; EN55022:2010+AC:2011 Class A; EN61000-3-3:2013; EN55032:2017; IEC 61000-4-2/3/4/5/8

Model	Description
WXA-I010G	10Port 10/100/1000T, 12-48VDC Wide Input
Mounting Options	► Default DIN-Rail Bracket installed;
Power Options	► Power Supply is to be purchased separately
