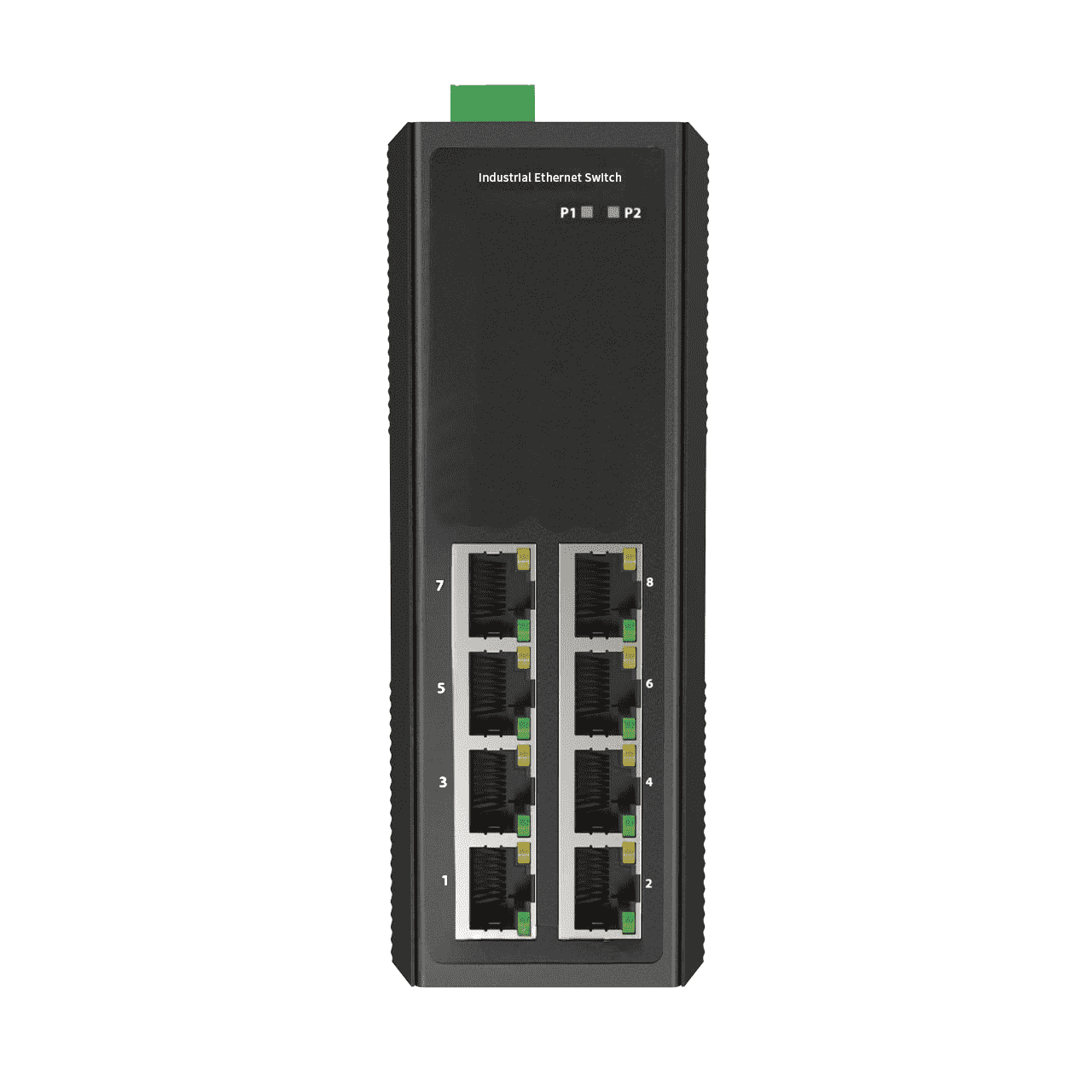

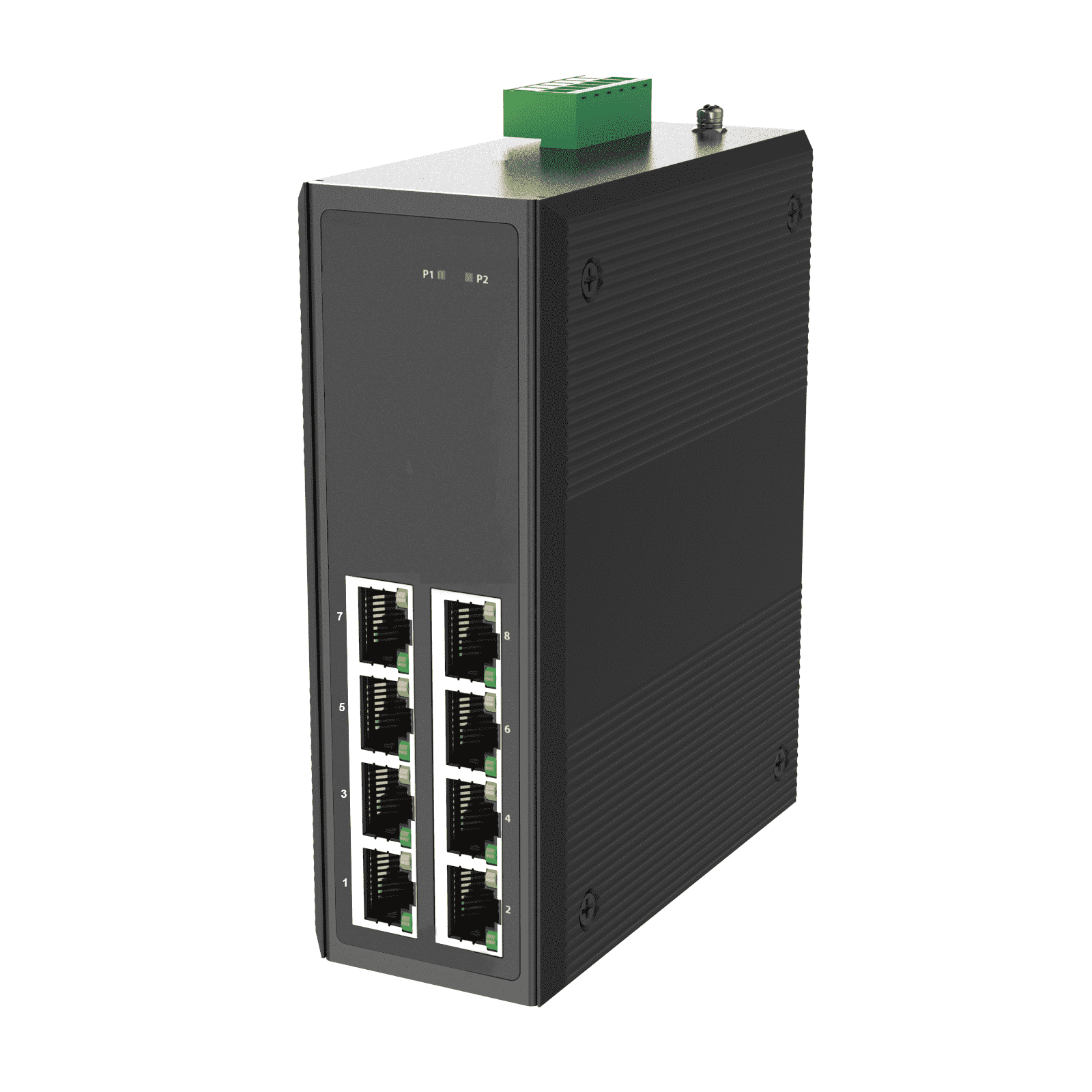

Industrial 8-Port Gigabit Ethernet Switch

Industrial 8-Port Gigabit Ethernet Switch

Model:WXA-I08G

►   8 x 10/100/1000BASE-T ports with Auto-MDI/MDI-X function

►   Supports Auto-Negotiation and 10/100Mbps half/full duplex and 1000Mbps full duplex

►   12~56VDC wide range power input



￥ 0.00
0.00

Product Description

Model:WXA-I08G

►   8 x 10/100/1000BASE-T ports with Auto-MDI/MDI-X function

►   Supports Auto-Negotiation and 10/100Mbps half/full duplex and 1000Mbps full duplex

►   12~56VDC wide range power input



The WXA-I08G series, an unmanaged industrial Ethernet switch designed specifically for outdoor CCTV applications and various industrial networking requirements, combines ruggedness with budget - friendliness.

It is engineered to endure harsh climatic conditions, ensuring flawless operation of surveillance and industrial network systems. Optional IEEE 802.3 af/at/bt PoE compliance allows power and data to be transmitted through one cable, simplifying deployment and minimizing wiring complexity.

Its multi - port design facilitates quick integration into existing network architectures. It provides consistent, reliable performance with low operational costs, making it a cost - effective solution for enterprises aiming to enhance network infrastructure while balancing quality and efficiency.

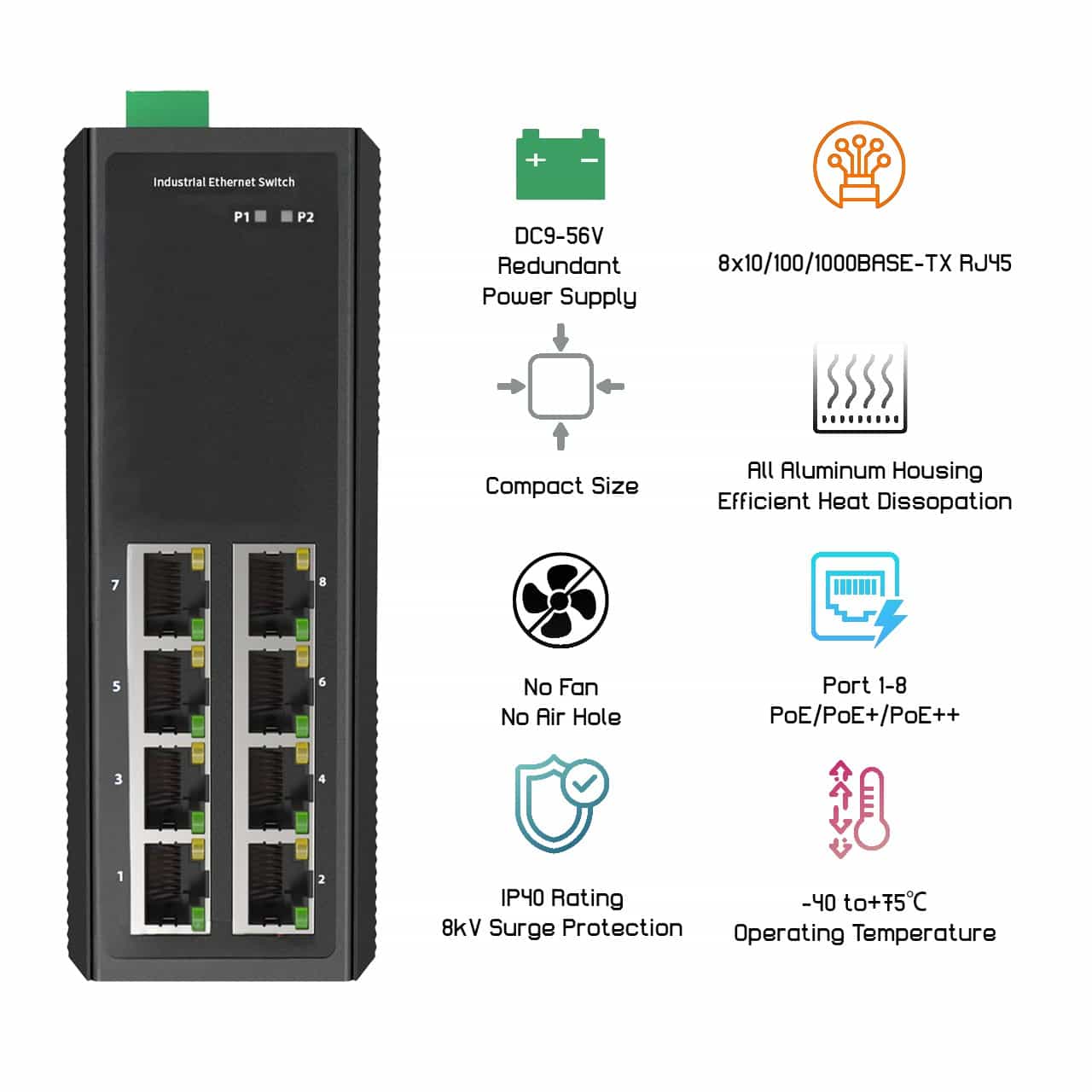

  •  8 x 10/100/1000Base-T RJ45 Ports

  •  Optional IEEE 802.3 af/at/bt PoE support

  •  Optional management function

  •  Non-blocking architecture, full wire-speed forwarding

  •  Supports IEEE 802.3x full-duplex flow control & half-duplex backpressure

  •  Auto-negotiation ports (10/100/1000Mbps)

  •  Auto-MDI/MDIX eliminates crossover cables

  •  MAC address auto-learning & auto-aging

  •  IEEE 802.1Q VLAN transparency

  •  Plug-and-play for easy installation

  •  Auto-negotiation ports (10/100/1000Mbps)

  •  Auto-MDI/MDIX eliminates crossover cables

  •  MAC address auto-learning & auto-aging

  •  IEEE 802.1Q VLAN transparency

  •  Plug-and-play for easy installation

Ethernet

Standards

IEEE 802.3 (Ethernet), IEEE 802.3u (Fast Ethernet), IEEE 802.3ab (Gigabit Ethernet), IEEE 802.3x (Flow Control), IEEE 802.3az (Energy Efficient Ethernet)


Forwarding & Filtering Rate

11.9 Mpps (64-byte packet size)


Packet Buffer / Maximum Length

2Mbits; 1500 bytes


MAC Address Table

4K entries, automatic source address learning and aging


Switch Fabric / Exchange Property

20Gbps non-blocking


Flow Control

Full Duplex: IEEE 802.3x Pause Frame; Half Duplex: Back Pressure

Interface

Copper Ports

8 x 10/100/1000BASE-T RJ45 ports, Auto-MDI/MDI-X (Ports 1-8)


PoE Standards (Optional)

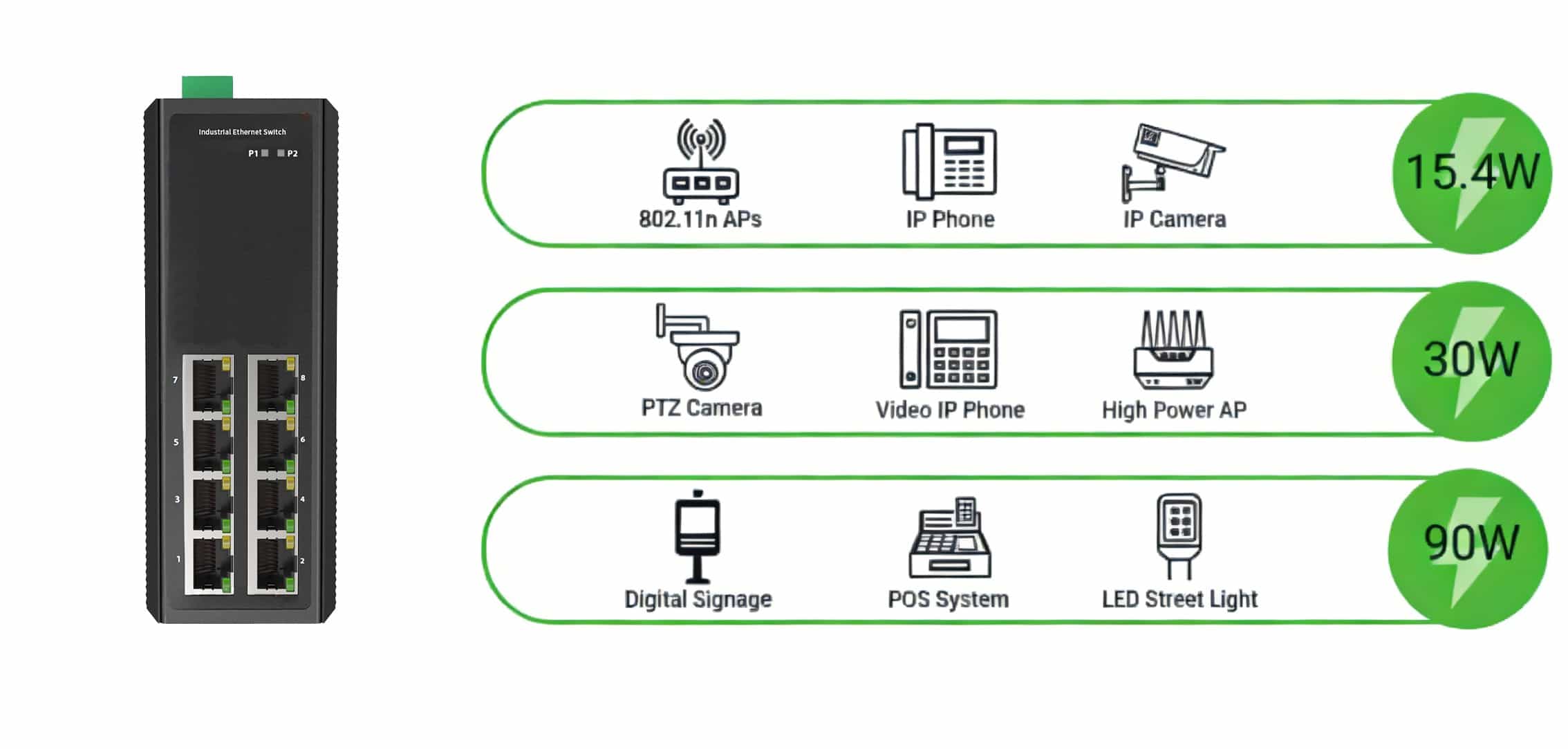

IEEE 802.3 af/at (30W); IEEE 802.3 af/at/bt (90W)


PoE Power Pins (Optional)

1/2(+), 3/6(-);

Dual-mode option: 1/2(+), 3/6(-) or 4/5(+), 7/8(-) (90W model)


Max Power per Port (Optional)

30W (PoE af/at); 90W (PoE bt)


PoE Power Budget (Optional)

240W (depending on power input)

Environmental

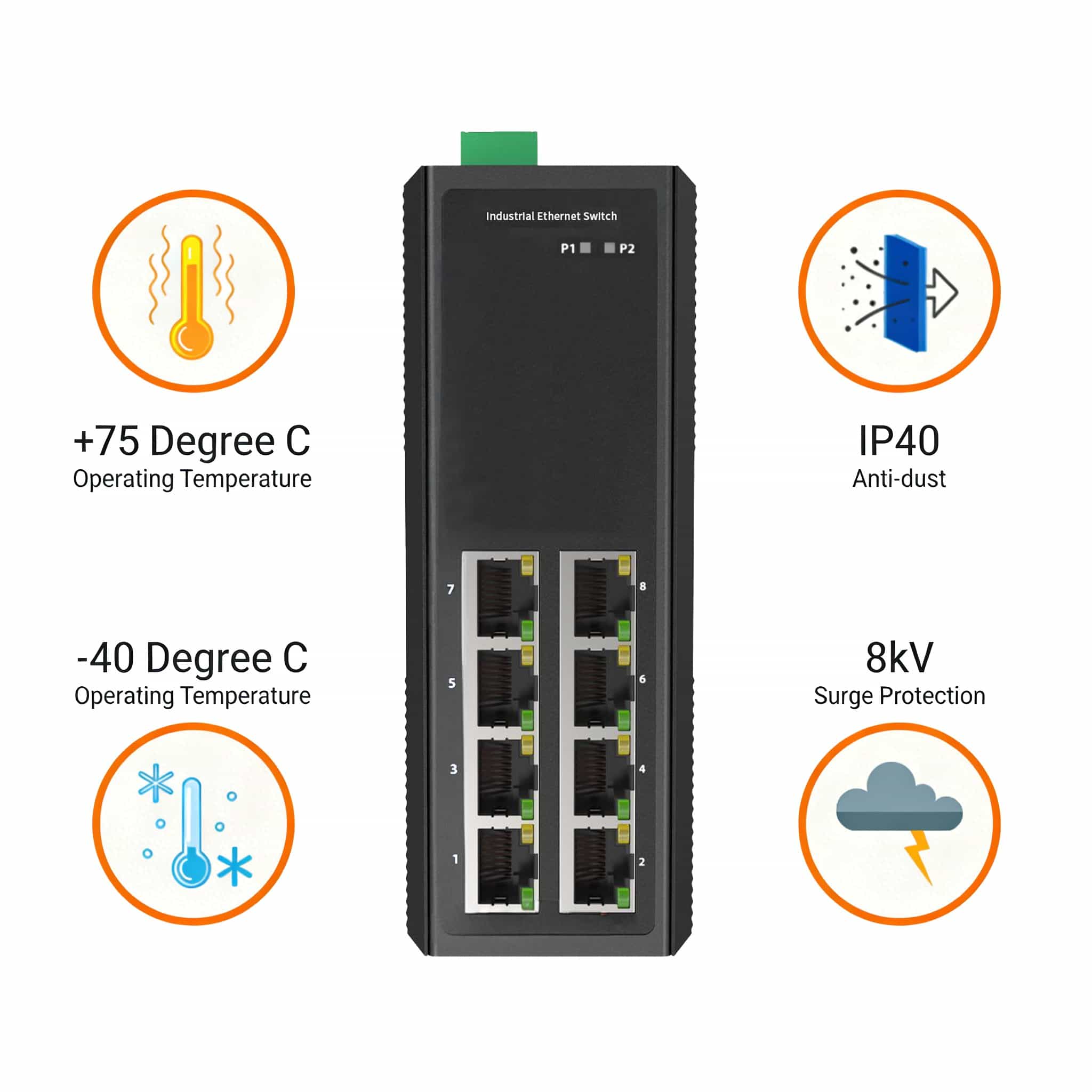

Operating Temperature

-40°C ~ 75°C (-40°F ~ 167°F)


Storage Temperature

-40°C ~ 85°C (-40°F ~ 185°F)


Humidity

5% ~ 95% non-condensing


MTBF

＞500,000 hours @ MIL-HDBK-217F GF 25℃

Electrical & Mechanical

Input Power

2 redundant DC inputs; Non-PoE: DC 9-56V; 30W PoE: DC 48-56V; 90W PoE: DC 52-56V


Power Connector

1 removable 6-contact terminal block (Pins 1/2: Power 1; Pins 3/4: Power 2; Pins 5/6: Fault Alarm, configurable)


Power Consumption

Max 7 Watts (without PoE load)


Power Protection

Reverse Polarity Protection, Overload Current Protection


Surge Protection

Power: ±6kV DC; RJ45 Ports: ±4kV ~ ±6kV (model-dependent)


Dimensions (W×D×H)

138mm × 108mm × 49mm


Weight

0.62Kg


Enclosure & Mounting

IP40-rated aluminum case; DIN-Rail and Wall-mountable


LED Indicators

Power (P1/P2): ON = Power supplied, OFF = No power; RJ45 Amber: ON = Active connection, Blinking = Data transmission; RJ45 Green: ON = 1000Mb/s, OFF = 10/100Mb/s

Regulatory Approvals

Certifications

ISO 9001; IEC62368-1:2020+A11:2020; FCC Part 15B Class A; IEC 61000-3-2; IEC61000-4-2 (ESD: Contact ±8kV, Air ±15kV); IEC61000-4-5 (Surge: Power ±6kV, RJ45 ±4kV/±6kV); IEC 60068-2-27 (Shock); IEC 60068-2-32 (Free Fall); IEC 60068-2-6 (Vibration); RoHS 2011/65/EU Annex II (EU)


Model

Description

WXA-I08G

8-Port 10/100/1000T, 12-56VDC  Input

Mounting Options

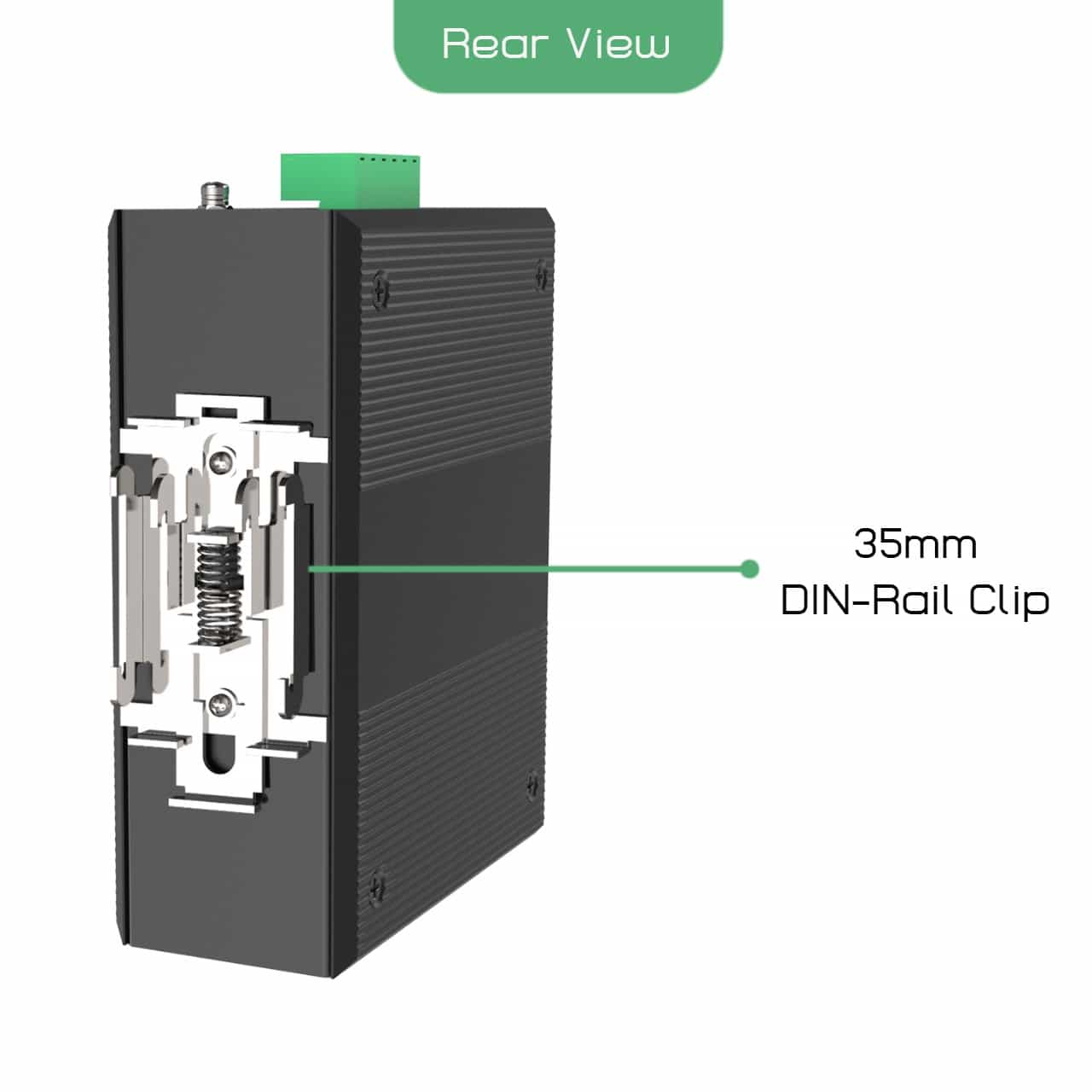

► Default DIN-Rail Bracket installed;

Power Options

► Power Supply is to be purchased separately
