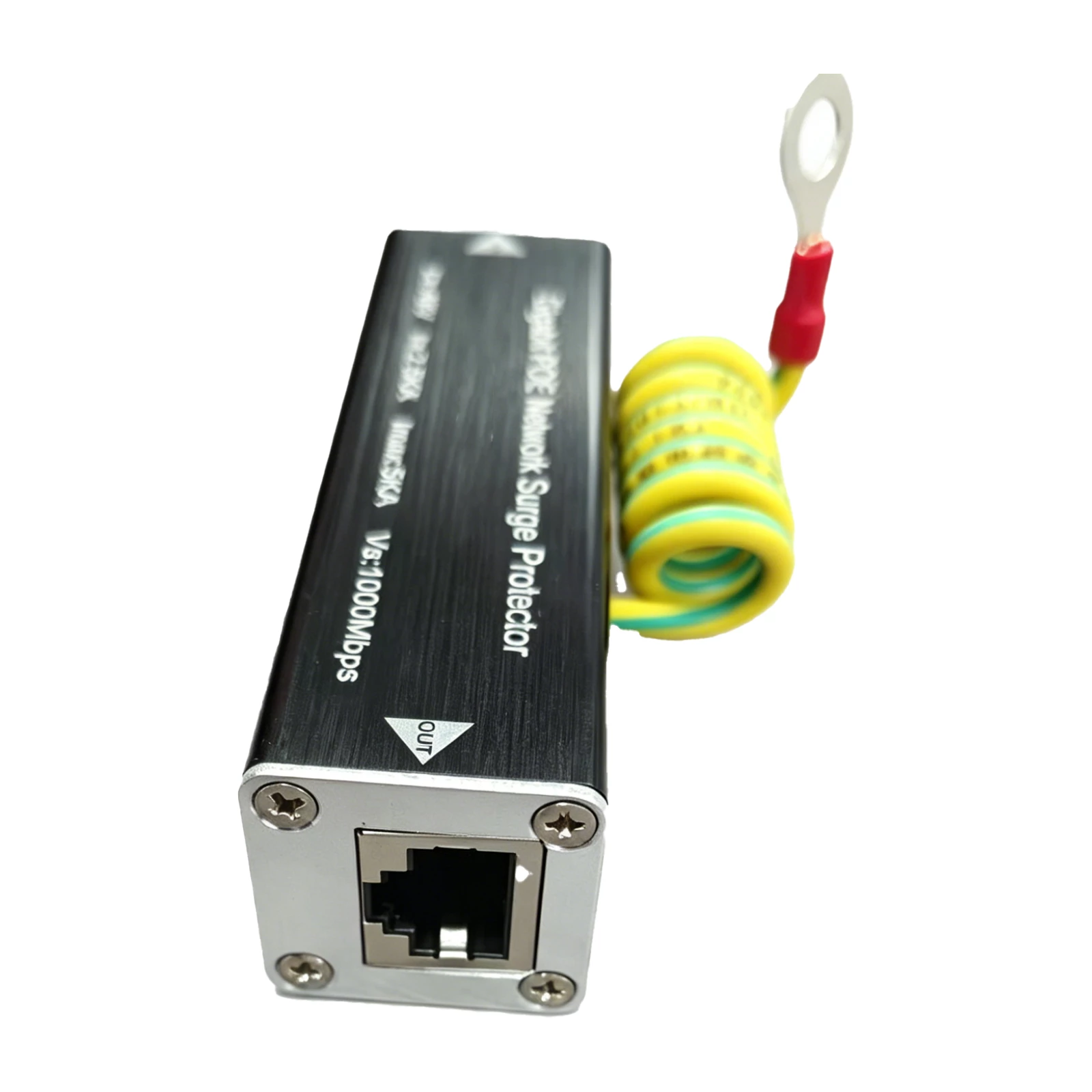

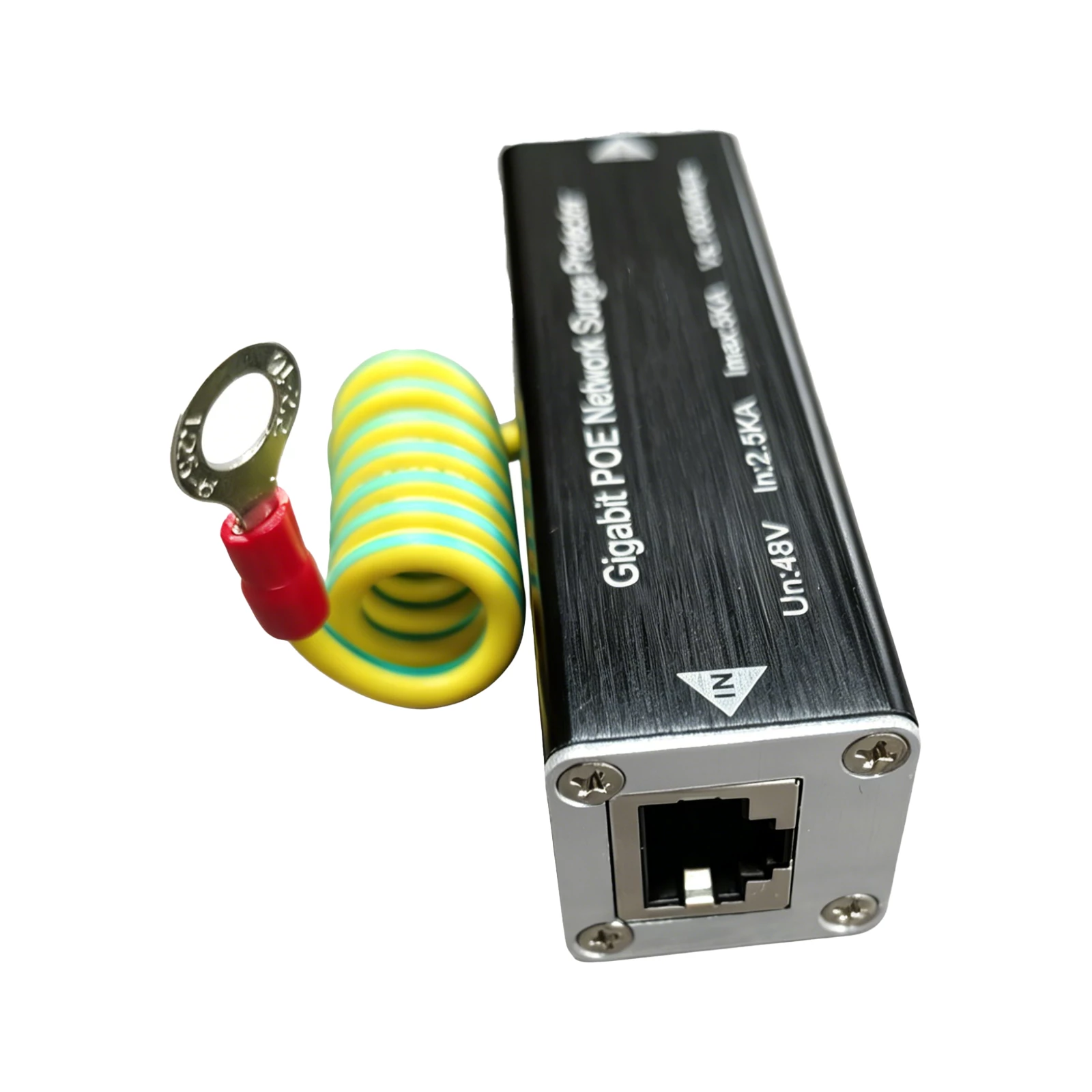

► RJ45 network surge protector.
► Adopt power supply + Ethernet signal surge protection integrated design.

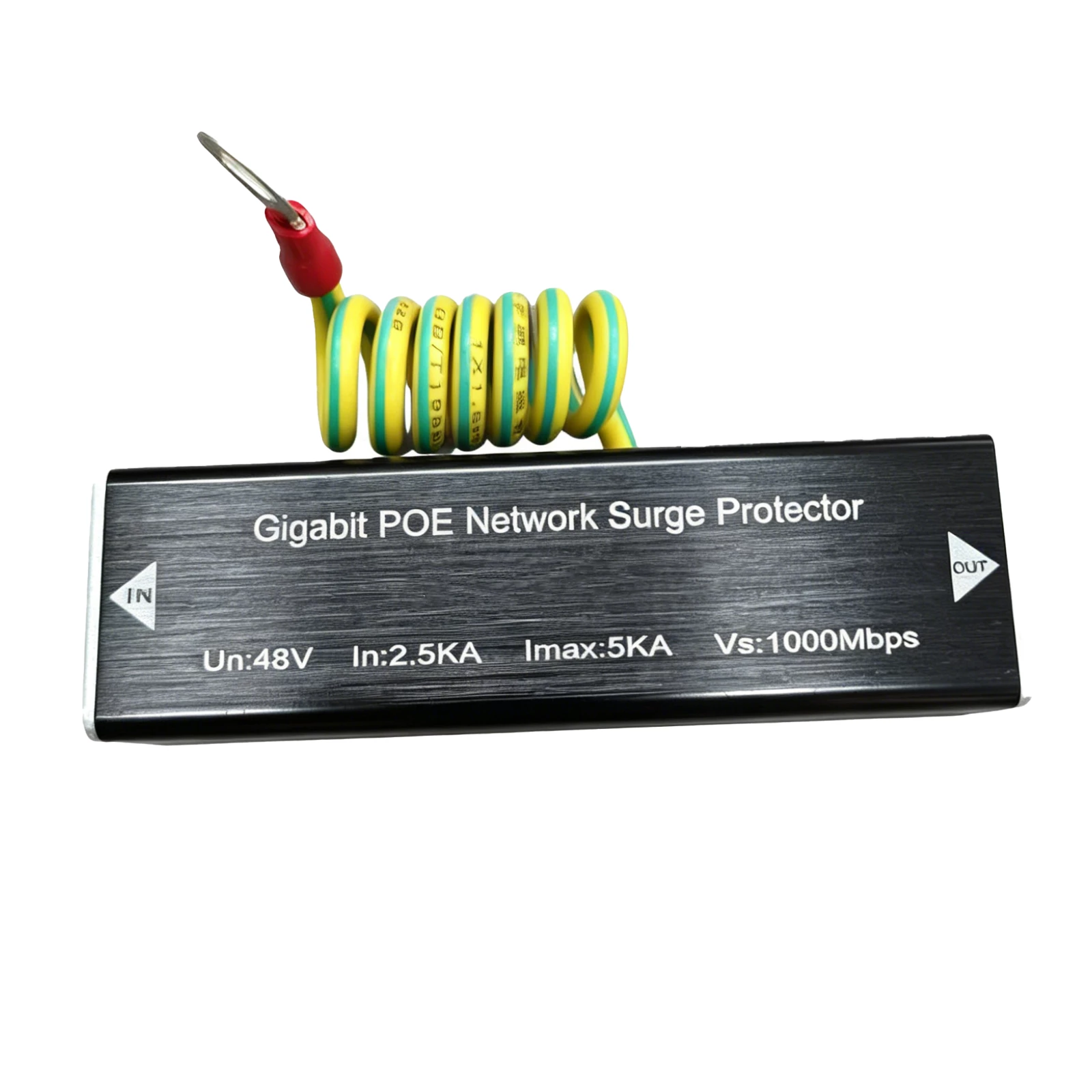

10/100/1000M Gigabit Ethernet & Power Surge Protector
Flow capacity, fast response
Multi-level protection circuit, residual depression
Use the core components of international brand products, excellent performance
Take place through the special treatment to avoid signal interference single network SPD
Small size, easy installation
Model
Parameters
SPD-POE1000EM
Nominal voltage U n
48V
Maximum continuous operating voltage U c
57V
Nominal discharge current (8/20μs) I n
2.5KA
Maximum Flow Capacity (8/20μs) I max
5KA
Limit voltage U r
≤60V
Transmission rate Vs
1000Mbps
Response time Ta
≤1ns
Insertion loss AE
≤0.5dB
Pin Protection
1/2/3/6 4/5/7/8
Connector Type
RJ45
Product size
9*2.5*2.5 cm
Order Information
