Multifunctional 4K@60Hz HDMI KVM Fiber Extender

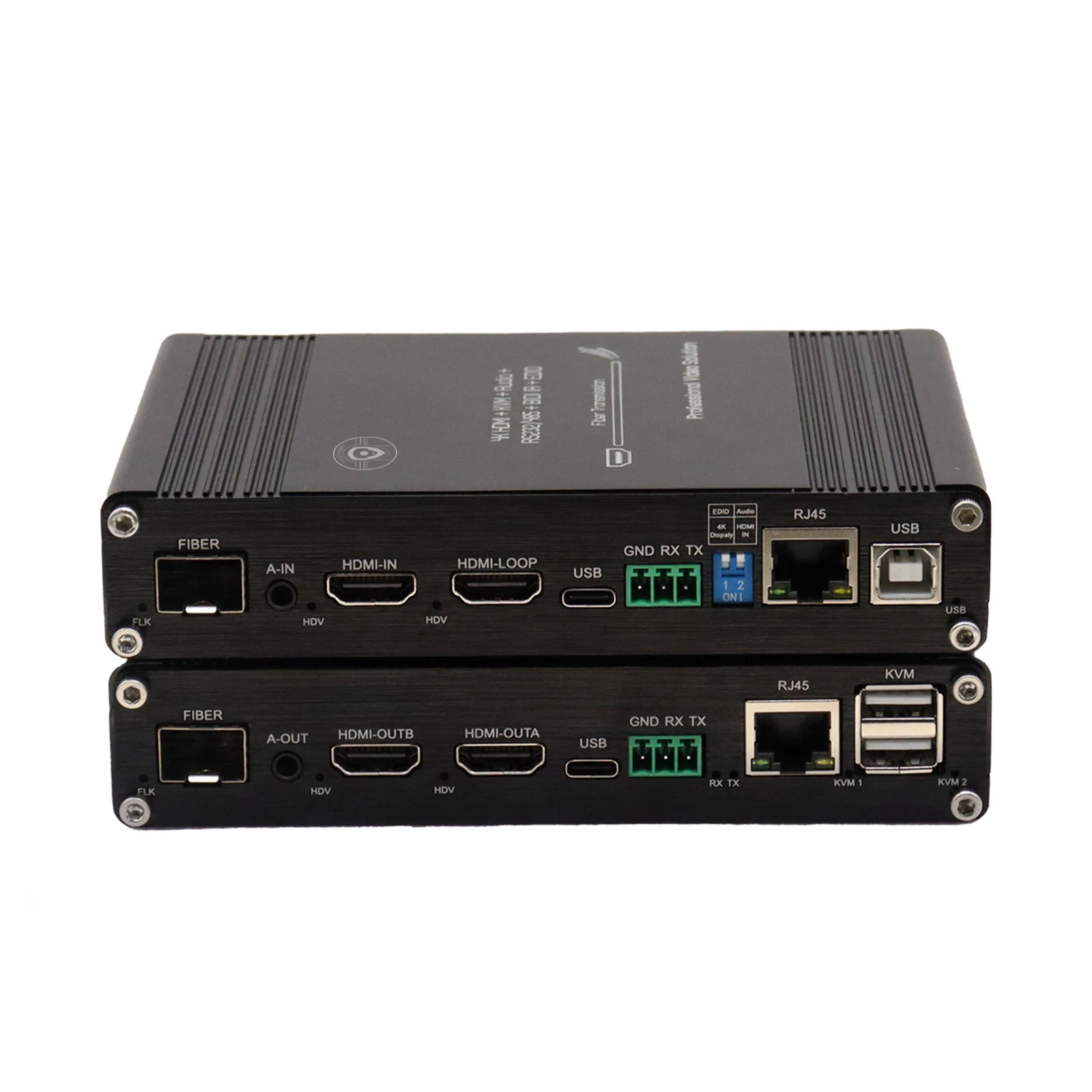

Multifunctional 4K@60Hz HDMI KVM Fiber Extender

Model:WXA-4KH-1D1U1E1A1R

  • Supports HDMI video resolution up to 4096×2160@60Hz

  • Supports 4K2K@50/60Hz with 4:4:4 chromatic sampling

  • Compliant with HDMI 2.0b, HDCP 2.2, DVI 1.0

  • Supports HDMI video loop output

  • Integrated KVM control function

￥ 0.00
0.00

Product Description

Model:WXA-4KH-1D1U1E1A1R

  • Supports HDMI video resolution up to 4096×2160@60Hz

  • Supports 4K2K@50/60Hz with 4:4:4 chromatic sampling

  • Compliant with HDMI 2.0b, HDCP 2.2, DVI 1.0

  • Supports HDMI video loop output

  • Integrated KVM control function

This multifunctional HDMI KVM fiber extender realizes long-distance extension of HDMI signals over a single fiber cable. It supports video resolution up to 4K@60Hz (4:4:4 chromatic sampling) and integrates KVM, audio, RS232/RS485, 10/100M TCP/IP, bi-directional IR, DIP switch, and EDID functions. With stable performance and high security, it is suitable for various long-distance high-definition transmission applications.

  • Supports HDMI video resolution up to 4096×2160@60Hz

  • Supports 4K2K@50/60Hz with 4:4:4 chromatic sampling

  • Compliant with HDMI 2.0b, HDCP 2.2, DVI 1.0

  • Supports HDMI video loop output

  • Integrated KVM control function

  • Supports RS232 / RS485 data transmission

  • Supports 10/100M TCP/IP network

  • Supports bi-directional IR control

  • Built-in DIP switch for audio separation and EDID

  • Supports 7×24 hours continuous operation

Video StandardHDMI 2.0b, HDCP 2.2, DVI 1.0
Max Resolution4096×2160@60Hz (4:4:4)
HDMI Interface1×Input, 1×Loop-out, 2×Output
Refresh Rate24/25/30/50/60Hz
Audio3.5mm jack; HDMI / external audio switchable
KVMTX: USB-B; RX: 2×USB-A; low latency
Data PortRS232/RS485, 600~115200bps
Network10/100Mbps RJ45 (TCP/IP)
IRBi-directional IR
Fiber PortSFP (LC/SC optional)
Fiber TypeMMF / SMF
Transmission DistanceMMF: 330m; SMF: 20/40/60/80km
PowerDC 12V/1A, Max 10W
Working Temp-25℃ ~ +55℃
Storage Temp-40℃ ~ +85℃
Humidity20% ~ 90%
Dimension148×115×28mm
Weight1kg
Working Time7×24 hours
Warranty1 year


Model

Description

WXA-4KH-1D1U1E1A1R

4K60Hz HDMI KVM Fiber Extender, KVM/Audio/RS232/RS485/10/100M LAN/IR/EDID, MMF 330m, SMF 20-80km, LC/SC

Power Options

US/EU/AU/UK Plug DC 12V



4K60Hz HDMI KVM Fiber Extender
