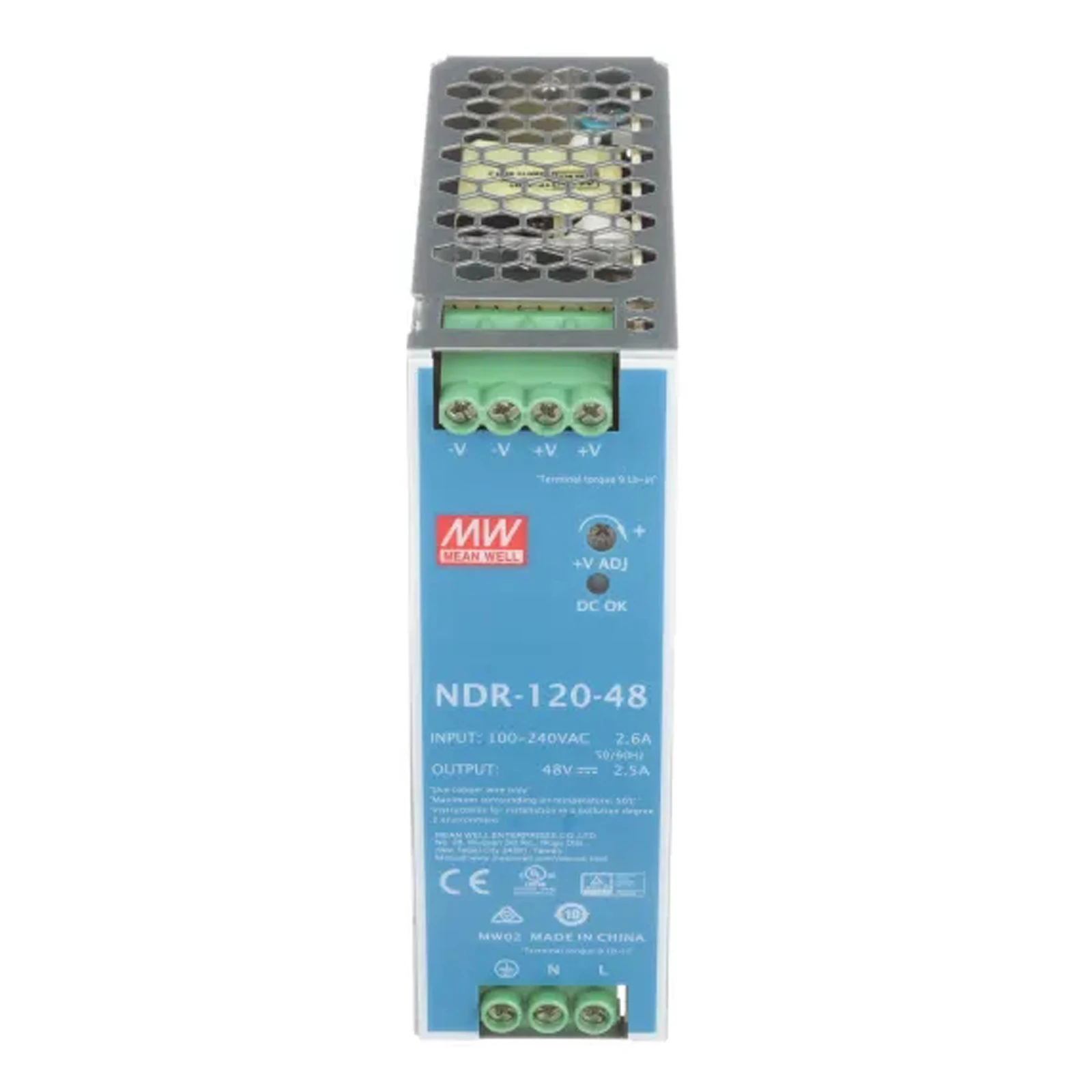

120W/48V 2.5A Industrial DIN RAIL Power Supply MEAN WELL NDR-120-48

Model:NDR-120-48

► Universal AC input for full operation

► Protection features: short circuit, overload, over voltage and over temperature

► Cooling by free air convection

► DIN rail TS-35/7.5 or 15 installation

￥ 0.00

Product Description

Model:NDR-120-48

► Universal AC input for full operation

► Protection features: short circuit, overload, over voltage and over temperature

► Cooling by free air convection

► DIN rail TS-35/7.5 or 15 installation

This is the original MEAN WELL NDR-120-48 industrial DIN rail power supply, featuring rated output power 120W, DC 48V voltage and 2.5A current. It supports full range AC 90-264V wide voltage input, suitable for global industrial power supply scenarios.

► Universal AC input for full operation

► Protection features: short circuit, overload, over voltage and over temperature

► Cooling by free air convection

► DIN rail TS-35/7.5 or 15 installation

► UL 508 (industrial control equipment) approved

► EN61000-6-2 (EN50082-2) industrial immunity level

► 100% full load burn-in test

► 3 years warranty

MEAN WELL/NDR-120-48
Configuration	Enclosed
Dimensions (W x H x D)	40 x 125.2 x 113.5 mm
Weight (kg)	0.6kg
Mounting Type	DIN-Rail Mount
Input Voltage	100-240V AC,50/60Hz, 2.25A
Power Output	120 Watts, 48V, 2.5A
Primary Type	AC-DC
Series	NDR Series
Type	Industrial
Temperature	Operating:-20~70 degrees C Storage:-40~85 degrees C
Humidity	Operating: 20 ~ 95% Storage: 10 ~ 95% (non-condensing)
Installation	DIN rail TS-35/7.5 or 15
Safety & Function	Ul508, TUV EN60950-1 approved (meeting EN60204-1)
Special Features	*3 Year Warranty; 100% Full Load Burn-In Test ; DC OK Active Signal; Short Circuit Protection ; Overload Protection; Over Voltage Protection
