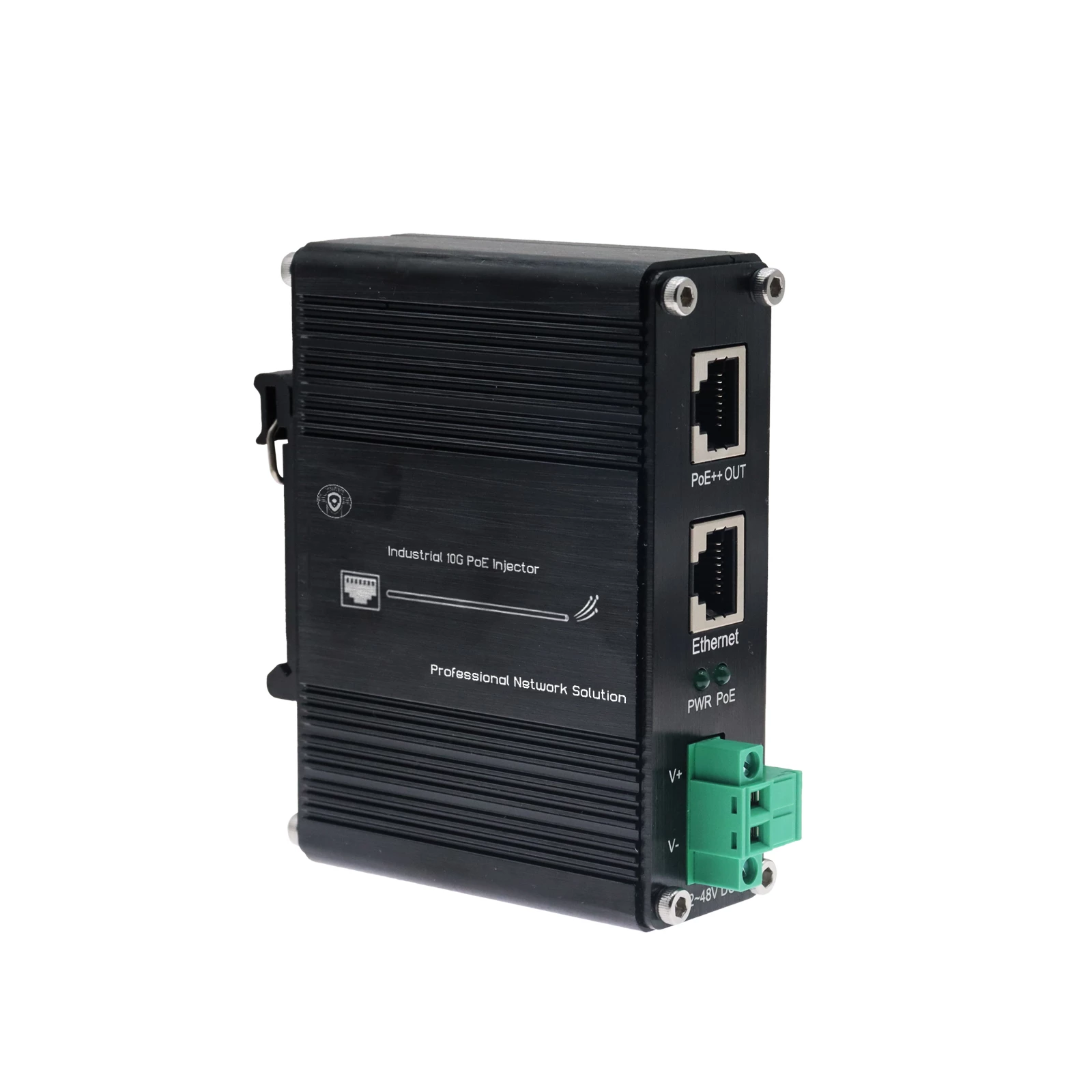

12~48V DC Wide-Range Industrial 10G 90W PoE Injector

12~48V DC Wide-Range Industrial 10G 90W PoE Injector

Model:WXA-INJ90-10G

1×RJ45 data input + 1×RJ45 PoE output (data + power)

Complies with IEEE 802.3af/at/bt; supports LTPoE++ 95W PSE

Rate: 10/100/1000/2.5G/5G/10G Base‑TX

12–48VDC wide voltage input with boost function

￥ 0.00
0.00

Product Description

Model:WXA-INJ90-10G

1×RJ45 data input + 1×RJ45 PoE output (data + power)

Complies with IEEE 802.3af/at/bt; supports LTPoE++ 95W PSE

Rate: 10/100/1000/2.5G/5G/10G Base‑TX

12–48VDC wide voltage input with boost function

WXA-INJ90 series is an industrial hardened single-port PoE injector compliant with IEEE 802.3af/at/bt standards, delivering up to 95W PoE output. It supports 10/100/1000/2.5G/5G/10G Base-TX Ethernet, features 12–48VDC wide-range input with built-in voltage boost, and combines data and power over one cable. It connects non-PoE switches to high-power PD devices (wireless APs, PTZ cameras, IP phones, etc.) for stable operation in harsh industrial environments..


  •  1×RJ45 data input + 1×RJ45 PoE output (data + power)

  •  Complies with IEEE 802.3af/at/bt; supports LTPoE++ 95W PSE

  •  Rate: 10/100/1000/2.5G/5G/10G Base‑TX

  •  12–48VDC wide voltage input with boost function

  •  PoE budget: up to 95W at 48VDC / 24VDC; up to 60W at 12VDC

  •  Dual LED indicators: Power, PoE status

  •  Industrial operating temperature: -40°C to +80°C

  •  Mounting: DIN‑rail / wall‑mount

  •  IP40 aluminum case, fanless design

Ethernet Standard

10/100/1000/2.5G/5G/10G BASE-T

Forwarding Mode

Forward

Duplex Mode

Half-duplex / Full-duplex

Forward Filter Rate

14,880,000 pps (10Gbps)

Cabling Requirement

CAT7 or above

Max Transmission Distance

30m (CAT7 UTP)

Port Configuration

1×RJ45 Data In; 1×RJ45 PoE Out

PoE Standard

IEEE 802.3af / 802.3at / 802.3bt

PoE Output Power

95W (48VDC / 24VDC); 60W (12VDC)

Power Input

12~48VDC (Terminal Block)

Max Power Consumption

100W

Power Pin Assignment

1,2,4,5(+); 3,6,7,8(-)

LED Indicators

Power; PoE

Operating Temperature

-40°C to 80°C

Storage Temperature

-40°C to 85°C

Humidity

5%~95% non-condensing

MTBF

>200,000 hours

Surge / ESD

RJ45: 1KV; Power: 500V; ESD: 4KV/8KV

Dimensions (W×D×H)

95×70×30 mm

Weight

0.25Kg

Housing

IP40 Aluminum Case

Mounting

DIN-Rail / Wall-mount

Certifications

ISO9001; FCC Part 15 Class A; EN55022:2006+A1:2007 Class A


Model

Description

WXA-INJ90-10G

1×RJ45 data input + 1×RJ45 PoE output (data + power)

Mounting Options

► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.

Power Options

► Power Supply is to be purchased separately
