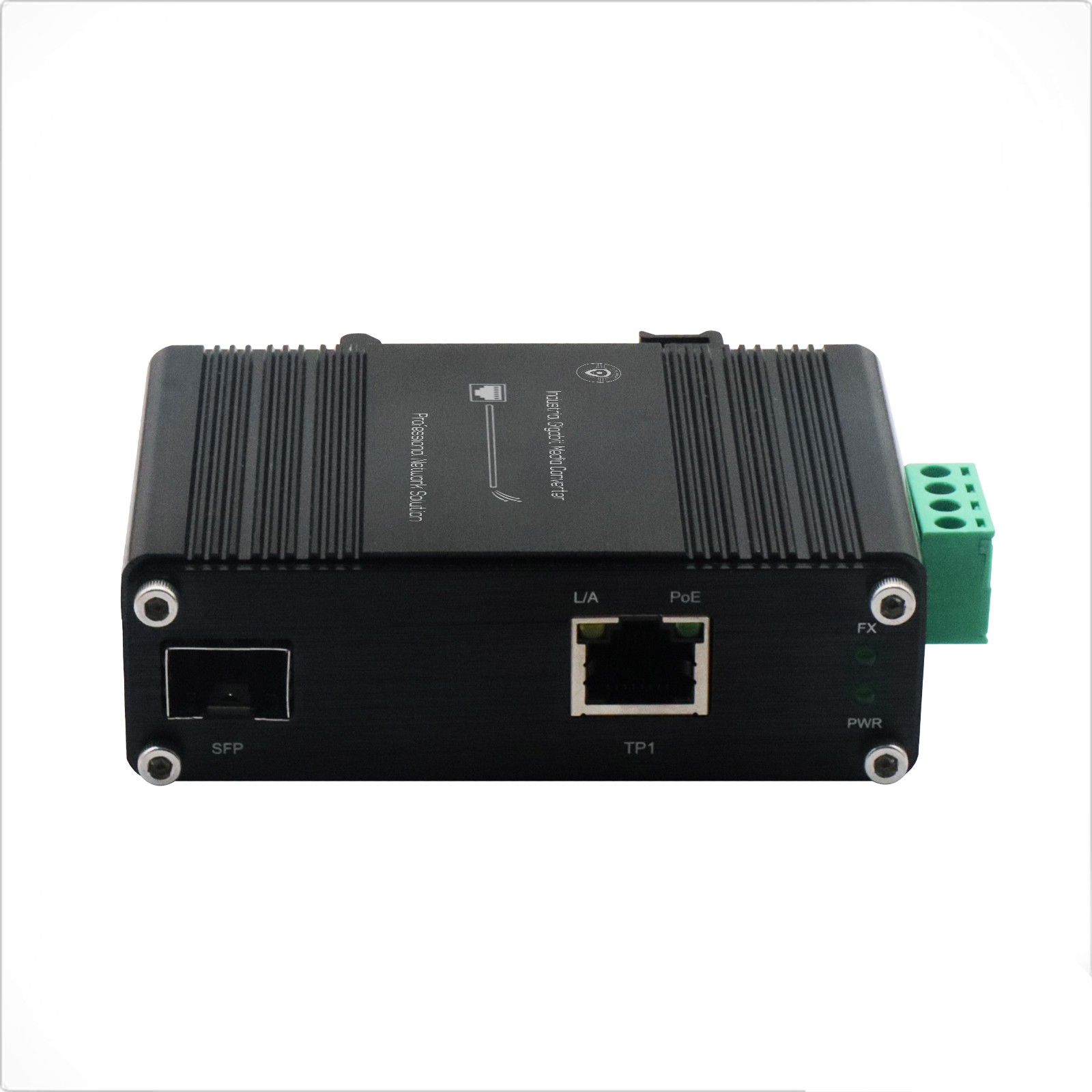

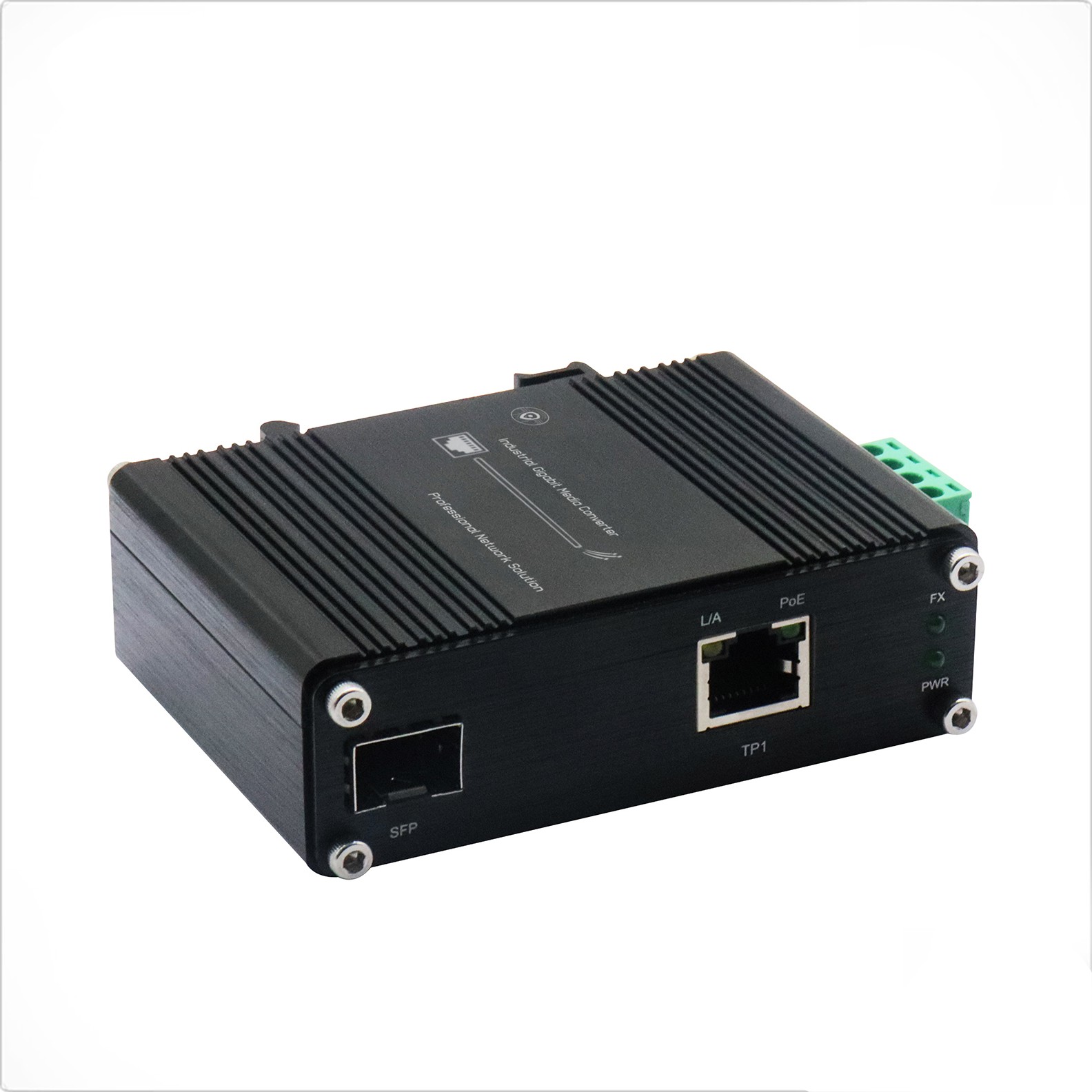

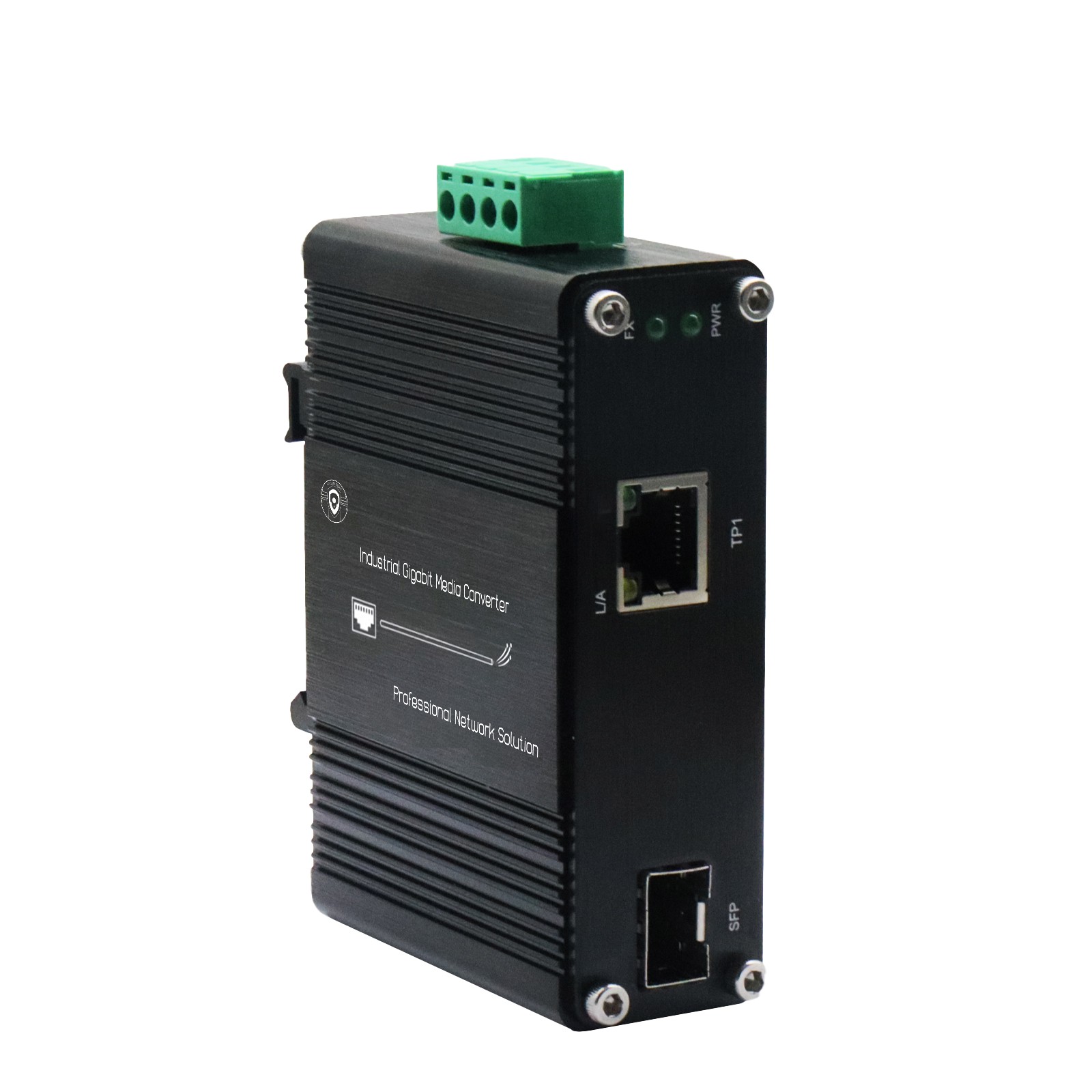

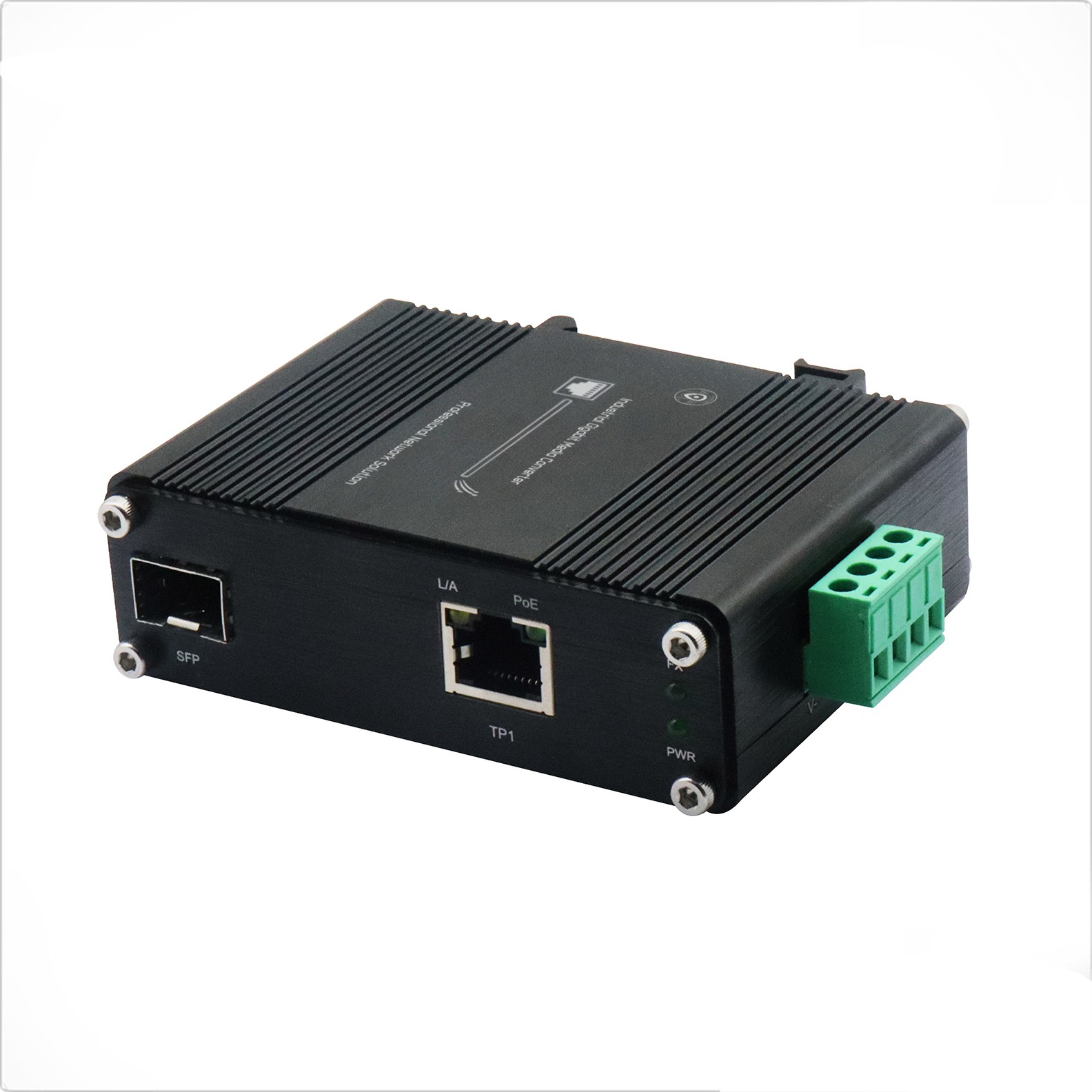

Mini Industrial Gigabit PoE Media Converter 1-Port 30W Gigabit RJ45 + 1-Port Gigabit FX
► 1-Port 10/100/1000BASE-T RJ45 with auto MDI / MDI-X function
► 1-Port 100/1000Base-X
► Supports IEEE802.3af/at 30W
► IEEE 802.3az Energy Efficient Ethernet (EEE)
► 48~57VDC Terminal Block Power Input
► 1-Port 10/100/1000BASE-T RJ45 with auto MDI / MDI-X function
► 1-Port 100/1000Base-X
► Supports IEEE802.3af/at 30W
► IEEE 802.3az Energy Efficient Ethernet (EEE)
► 48~57VDC Terminal Block Power Input
WXA-I01G-1SFP series hardened media converter is a dedicated industrial-grade networking device for copper-fiber signal conversion. It supports 10/100/1000BASE-T ↔ 1000BASE-X bidirectional transmission, and the fiber port is backward compatible with 100M bandwidth to meet diverse network deployment needs.
The Ethernet port provides flexible half/full-duplex mode switching, while the -40°C~75°C wide temperature tolerance and rugged aluminum enclosure ensure reliable performance in extreme industrial scenarios such as factory workshops, outdoor monitoring systems and mining sites.
► 1 x 10/100/1000BASE-T RJ45 Auto-MDI/MDI-X Ports
► 1 x 100/1000BASE-X
► Supports Full/Half-duplex, Auto-negotiation
► IEEE 802.3az Energy Efficient Ethernet (EEE)
► IEEE 802.3af/at PoE Support
► Supports DIN-Rail & Wall-mount Installation
IP40 Aluminum Case
► Environmentally hardened Operating Temperature: -40°C to 75°C (-40°F to 167°F)
Applications
/ | 30W PoE | |
Ethernet | Ethernet Standards | IEEE802.3 10Base-T, IEEE802.3u 100Base-TX/FX, IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-X, IEEE 802.3az (EEE) |
PoE Standards | IEEE802.3af/at | |
Forwarding Mechanism | Store-and-Forward | |
Forwarding Rate | 14,880pps (10Mbps), 148,800pps (100Mbps), 1,488,000pps (1000Mbps) | |
Packet Buffer Memory/Max Packet Length | 1 Mbit/9K Bytes | |
Address Table Size | 2048K MAC Addresses | |
Interface | Connector Optical Port | 1x RJ45 1 x 100/1000Base-X |
Electrical & Mechanical | Input Power | 12~48VDC, 4-pin terminal block |
Output Power | 48VDC | |
Power Consumption | 36W / 65W (Max.) | |
LED Indicators | PWR (Power Status), L/A (Data LINK Status), POE (PoE Status), 100M/1000M (Fiber LINK Status) | |
Dimensions (WxDxH) | 95 x 70 x 30 mm | |
Weight | 0.25Kg | |
Environmental | Operating Temperature | -40°C to 75°C (-40°F to 167°F) |
Storage Temperature | -40°C to 85°C (-40°F to 185°F) | |
Relative Humidity | 5% to 95% non-condensing | |
MTBF | > 200,000 hrs | |
Ordering Information
Model | Description |
WXA-I01G-1SFP-P30 | Mini Industrial PoE Media Converter, 1-port 100/1000BASE-X + 1-port 10/100/1000BASE-T 802.3at PoE |
Mounting Options | ► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
