Mini Industrial 10G Media Converter

Mini Industrial 10G Media Converter

Model:WXA-I010G-SFP+

100M/1G/2.5G/5G/10G BASE-T auto negotiation, with auto MDI/MDI-X

 Standard 10GBASE-X SFP+ slot, compatible with industrial SFP+ transceivers

 Compliant with IEEE 802.3u / 802.3ab / 802.3bz / 802.3ae

￥ 0.00
0.00

Product Description
Model:WXA-I010G-SFP+

100M/1G/2.5G/5G/10G BASE-T auto negotiation, with auto MDI/MDI-X

 Standard 10GBASE-X SFP+ slot, compatible with industrial SFP+ transceivers

 Compliant with IEEE 802.3u / 802.3ab / 802.3bz / 802.3ae

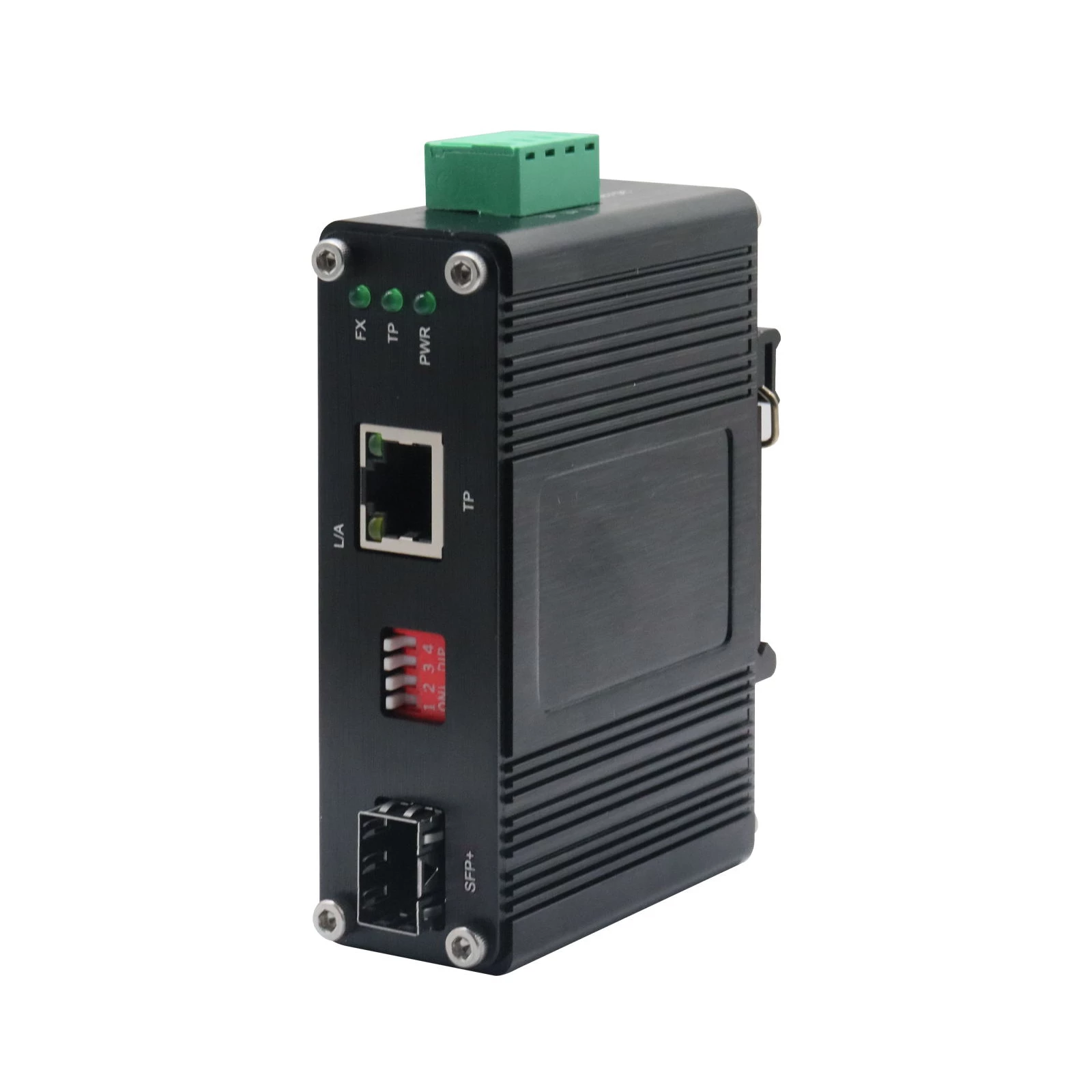

WXA-I010G-SFP+ is a mini industrial-grade 10G/5G/2.5G/1G/100M Copper to SFP+ Fiber Media Converter. It features one auto-adaptive RJ45 copper port and one 10G SFP+ fiber slot.Adopting IP40 aluminum alloy housing, wide-temperature industrial design and redundant power input, it supports non-blocking wire-speed forwarding for copper-to-fiber conversion.Compact size supports DIN-rail and wall mounting, ideal for industrial sites, surveillance centers, park networks, wireless core networking and harsh outdoor environments requiring 10G bandwidth extension.


  •  100M/1G/2.5G/5G/10G BASE-T auto negotiation, with auto MDI/MDI-X

  •  Standard 10GBASE-X SFP+ slot, compatible with industrial SFP+ transceivers

  •  Compliant with IEEE 802.3u / 802.3ab / 802.3bz / 802.3ae

  •  100M/1G supports half/full duplex; 2.5G/5G/10G full duplex only

  •  IEEE 802.3az Energy Efficient Ethernet (EEE) compliant

  •  Rich LED indicators for network diagnosis and troubleshooting

  •  12~48VDC terminal power input, redundant power & reverse polarity protection

  •  Industrial wide temperature: -40℃ ~ 80℃ operating temperature

  •  Store-and-forward architecture, 20Gbps switching capacity

  •  Supports 16K jumbo frame; 9K MAC address table

  •  IP40 aluminum case, DIN-rail / wall-mount optional

  •  Built-in overload auto-reset, ESD, surge and EFT protection

[IP Camera / 10G AP]        ↓ 100M/1G/2.5G/5G/10G RJ45        ↓10G-SFP+ Media Converter        ↓ SFP+ Fiber Link (10km~80km)        ↓ [10G Core Switch / Control Center]


Model

Description

WXA-I010G-SFP+

Mini Industrial  Media Converter, 1-port 10G/1G BASE-X + 1-port 10G/5G/2.5G/1000/100BASE-T 12-48VDC

Mounting Options

► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
