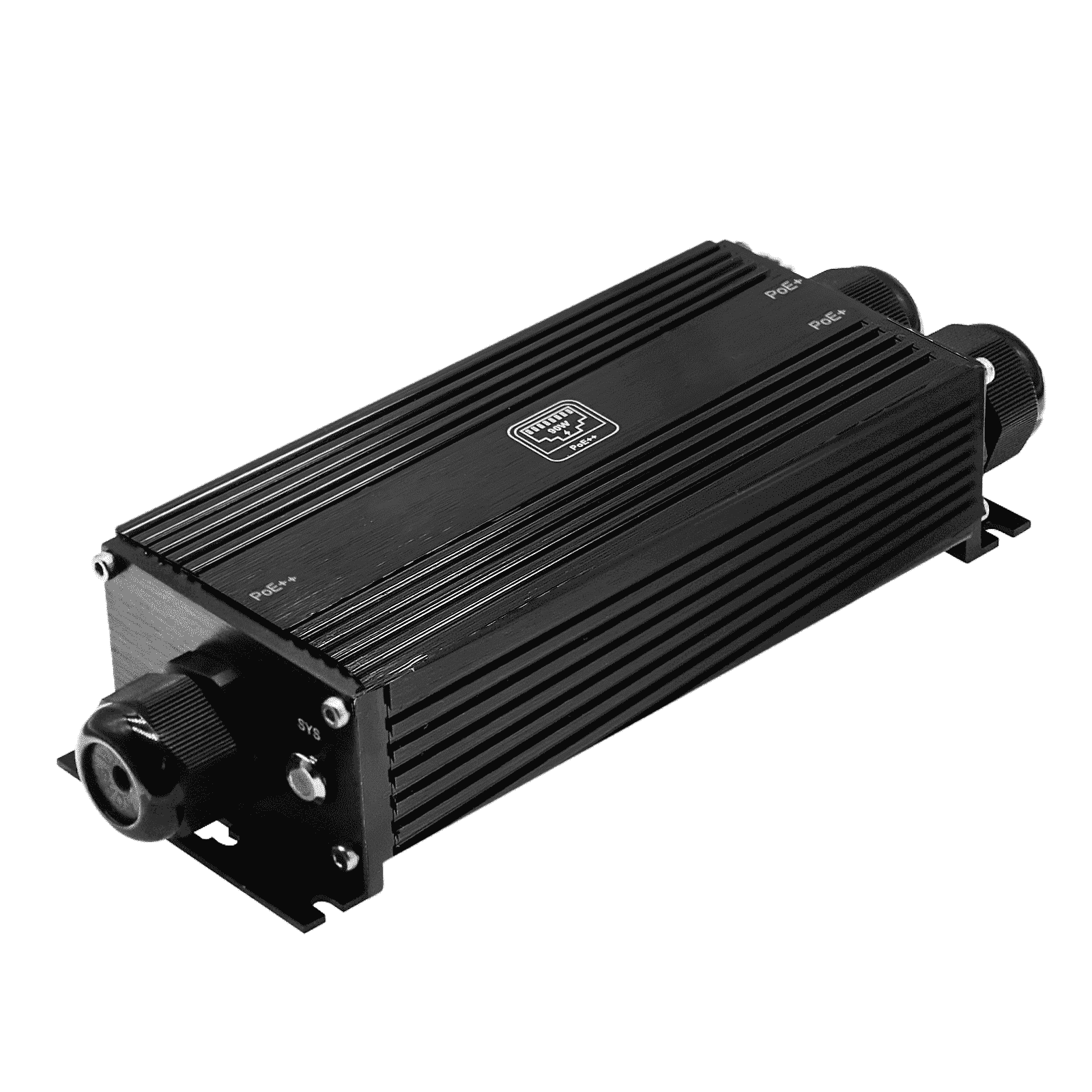

IP67 Industrial Gigabit PoE Extender (1 Input 2 Output)

IP67 Industrial Gigabit PoE Extender (1 Input 2 Output)

Model:WXA-WP-IPE1T2
44~57V DC Input

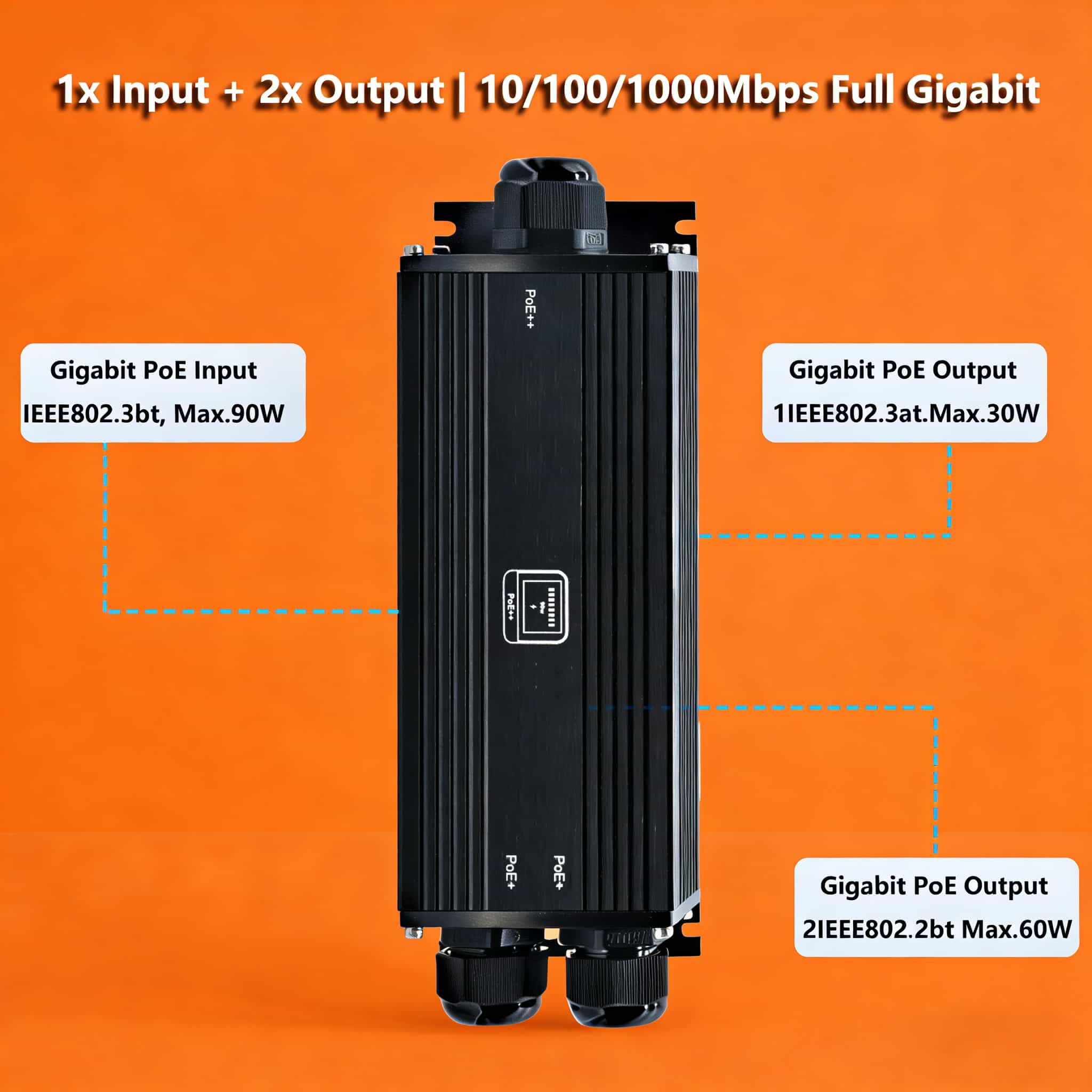

1 RJ45 Ethernet Data Input Port + 2 RJ45 PoE Output Port (Data + Power)

Supports IEEE 802.3bt Power over Ethernet (PoE++) Power Sourcing Equipment

Supports 10/100/1000Base-TX

￥ 0.00
0.00

Product Description

Model:WXA-WP-IPE1T2
44~57V DC Input

1 RJ45 Ethernet Data Input Port + 2 RJ45 PoE Output Port (Data + Power)

Supports IEEE 802.3bt Power over Ethernet (PoE++) Power Sourcing Equipment

Supports 10/100/1000Base-TX

WXA-WP-IPE1T2  is an industrial-grade IP67 Gigabit PoE Extender (1-in 2-out, 90W) using PoE technology. It extends 1000Mbps Ethernet signals to 100m and supplies 50–57V PoE power to devices. Its IP67-rated enclosure, waterproof terminals, and -40°C to 80°C wide temperature range ensure reliable performance for security surveillance and network engineering applications.



  • IP67-Rated Rugged Aluminum Enclosure

  •  1×Input 2×Output Gigabit Connectivity

  •  Full-Range PoE Compatibility

  •  100m PoE & Ethernet Extension

  •  Plug-and-Play, Cable-Free Installation

  •  Flexible Wall-Mountable Design

  •  Wide Temperature Tolerance -40°C to 80°C

  •  Supports 2K MAC address table

  •  10kB Jumbo Frame Support


Ethernet

PoE Input Port

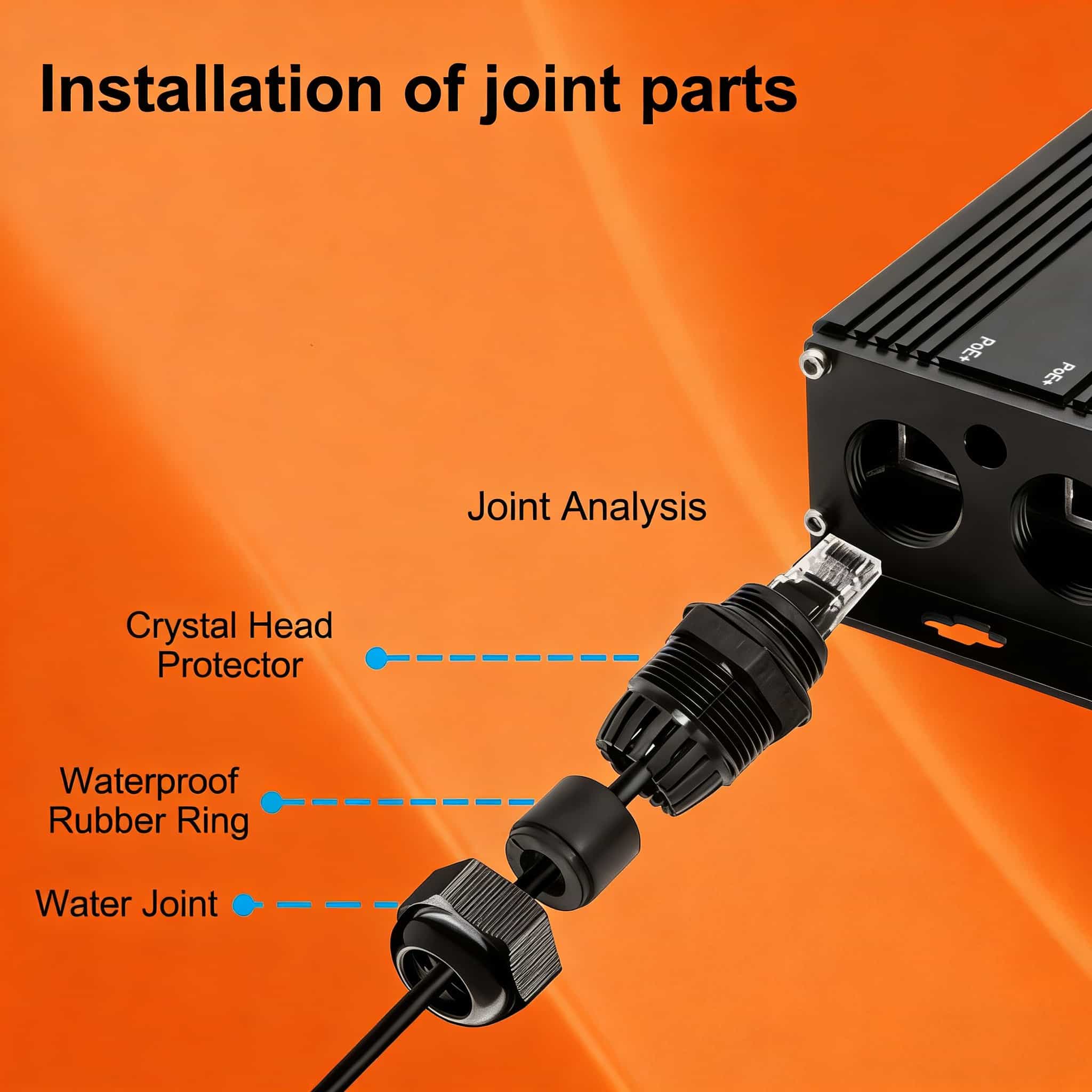

1 x 10/100/1000Base-TX RJ-45, M25 x 1.5 Cable Glands



PoE Output Port



2 x 10/100/1000Base-TX RJ-45, M25 x 1.5 Cable Glands



Ethernet Standards

IEEE 802.3 Ethernet, IEEE 802.3u Fast Ethernet, IEEE 802.3ab Gigabit Ethernet



Forwarding Mechanism

Store-and-Forward

Switching Capacity

 6Gbps

Address Table Size

2K MAC Addresses

Packet Forwarding Rate



4.46Mpps

Flow Control

IEEE 802.3x pause frame for full duplex, Back pressure for half duplex



Jumbo Frame



10K bytes



Transmission Distance

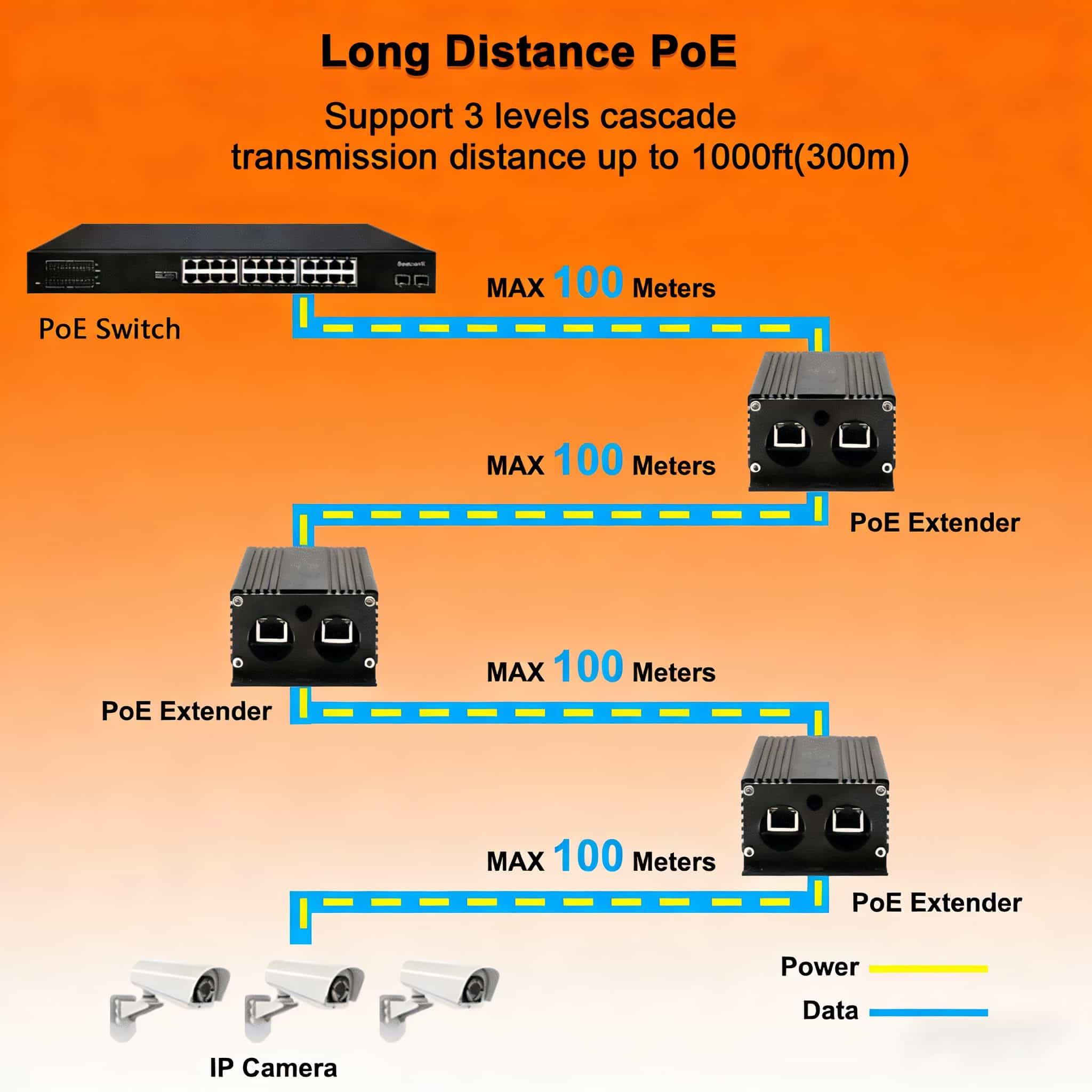

 Each extender extends by 100m, max 3 grade Cascade, total 400m.



PoE

PoE Standards

IEEE 802.3af/at/bt (90W Input Support)



PoE Power Supply Type



Mid-span and End-span



PoE Pin Assignment



1/2(+), 3/6(-), 4/5 (+), 7/8 (-)

Input Voltage



IEEE802.3 bt 90W

PoE Output Power



Maximum 65W

 Single Port PoE Output



Maximum 60W



Electrical & Mechanical

Mounting Options

Wall-mount

LED Indicators

PWR (Power Status), L/A (Data LINK Status), SPD (Ethernet Status), 100M/1000M (Fiber LINK Status)

Dimensions (WxDxH)

195 x 75 x 46 mm

Weight

0.6Kg

Environmental

Operating Temperature

-40°C to 75°C (-40°F to 167°F)

Storage Temperature

-40°C to 85°C (-40°F to 185°F)

Relative Humidity

5% to 95% non-condensing

MTBF

> 200,000 hrs


Model

Description

WXA-WP-IPE1T2

1 RJ45 Ethernet Data Input Port + 2 RJ45 PoE Output Port (Data + Power)

Mounting Options

►  Wall Mount
