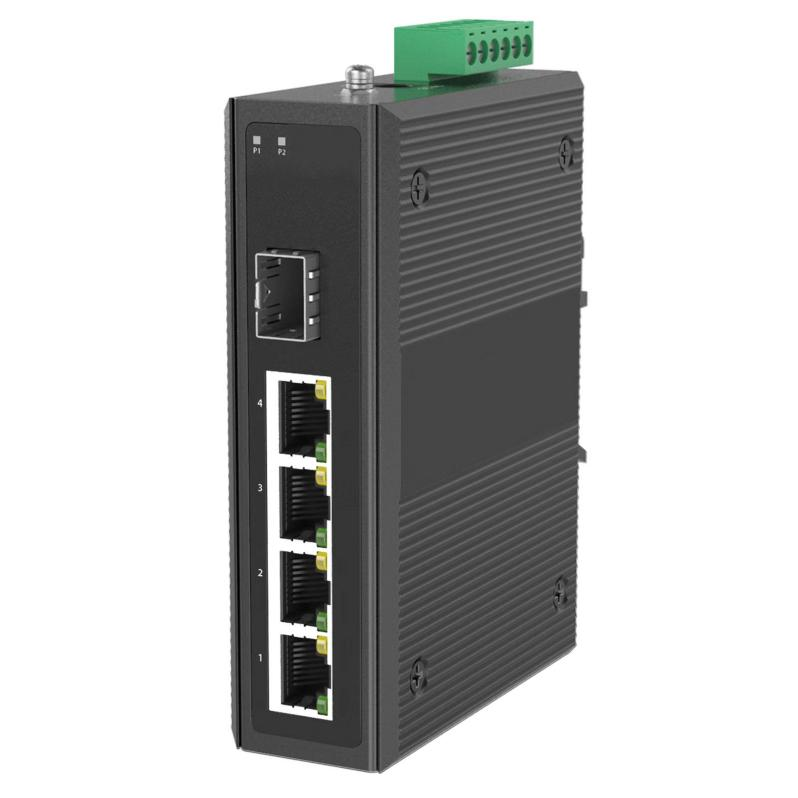

4-Port Gigabit RJ45+1-Port SFP Industrial PoE Switch

Model:WXA-I04G-1SFP-P360

► 4 x 10/100/1000BASE-T ports with Auto-MDI/MDI-X function

► Supports Auto-Negotiation and 10/100Mbps half/full duplex and 1000Mbps full duplex

► 12~56VDC wide range power input

￥ 0.00

Product Description

Model:WXA-I04G-1SFP-P360

► 4 x 10/100/1000BASE-T ports with Auto-MDI/MDI-X function

► Supports Auto-Negotiation and 10/100Mbps half/full duplex and 1000Mbps full duplex

► 12~56VDC wide range power input

The WXA-I04G-1SFP series is industrial unmanaged gigabit PoE switch equipped with 4 gigabit PoE RJ45 ports and 1 gigabit SFP fiber port. It has two versions including standard PoE and high-power BT PoE model.

With IP40 aluminum fanless casing and dual redundant power design, the switch features wide temperature tolerance, suitable for industrial control, intelligent traffic, outdoor monitoring and power system to realize long-distance fiber transmission and PoE power supply.

4×Gigabit PoE RJ45 +1×Gigabit SFP slot
PoE options: af/at 30W & af/at/bt 90W per port
Auto-MDI/MDI-X & duplex auto-negotiation
SFP supports LC/SC/FC/ST, single/dual fiber optional
Support 9K jumbo frame, IPv6 and IEEE802.3az
4K MAC address table, 8KV surge protection

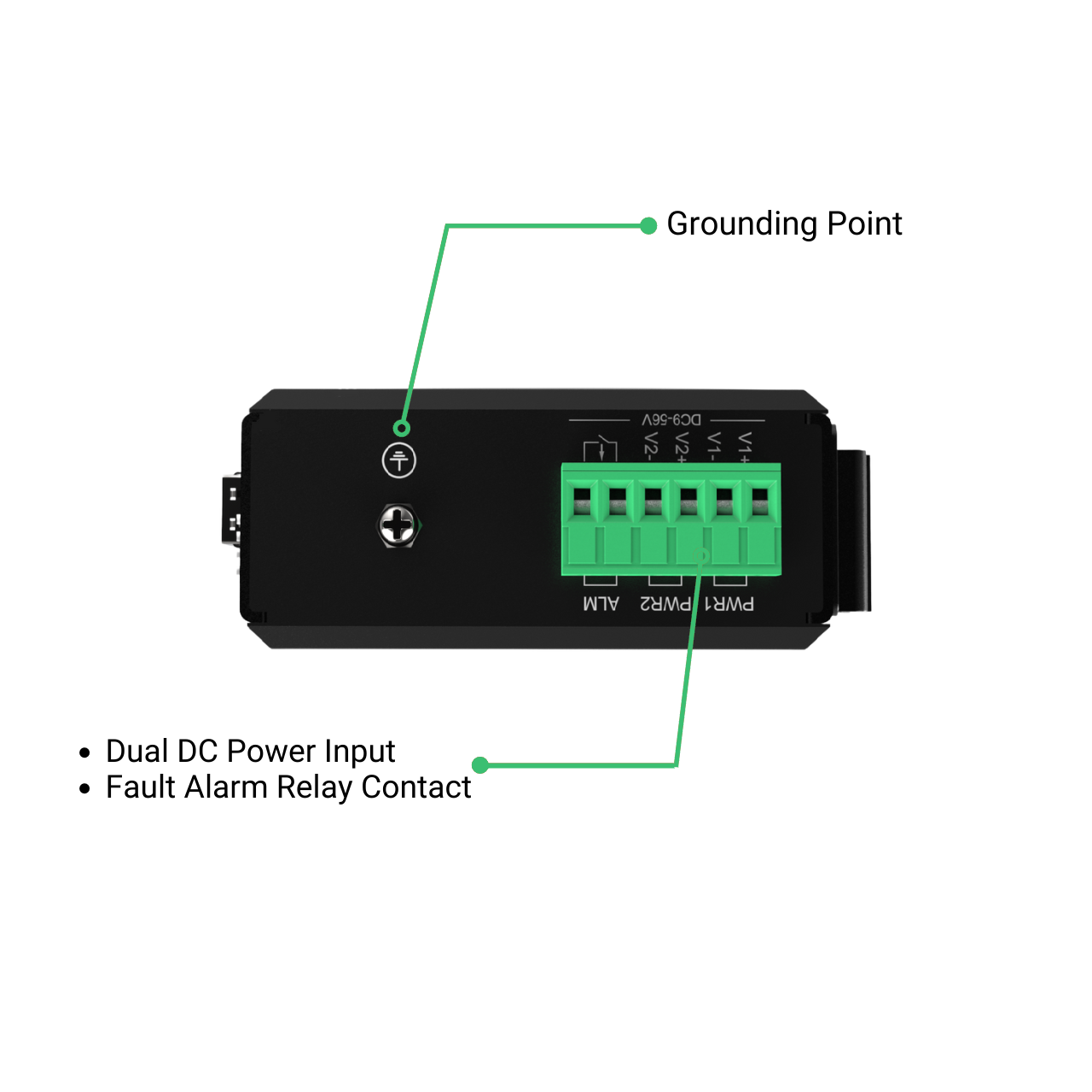

Dual redundant DC input with reverse polarity protection
Complete LED status indicators

Monitoring Center ↓ Core Network Switch ↓ (Long-distance Fiber Transmission) 1×SFP Fiber Port ↓ 4×PoE RJ45 Ports ├─ PoE IP Cameras ├─ Outdoor PoE Wireless AP ├─ PoE Intercom Devices └─ Other PoE Security Peripherals

Interface	RJ45 Port	4×10/100/1000Base-TX full PoE
Interface	Fiber Port	1×1000Base-FX SFP, LC/SC/FC/ST optional
Switch Performance	Compliance Standard	IEEE802.3/3u/3ab/3z/3x/3ah
	Packet Buffer	1Mbits
	MAC Address Table	4K entries
	Max Jumbo Frame	9000Bytes
	Switch Mode	Store & Forward
	Latency	＜7μs
	Backplane Bandwidth	10Gbps
PoE	PoE Standard	IEEE802.3af/at/bt
	PoE Pinout	1/2(+),3/6(-),4/5(+),7/8(-)
	Single Port Max Power	90W
	Total PoE Budget	360W
	Idle Consumption	≤10W
	Non-PoE Voltage	DC9~56V
	Rated PoE Voltage	DC52~56V
	Power Design	Dual redundant, anti-reverse polarity
Mechanical	Shell	IP40 Aluminum, Fanless cooling
	Dimension	120×90×35mm
	Weight	350g

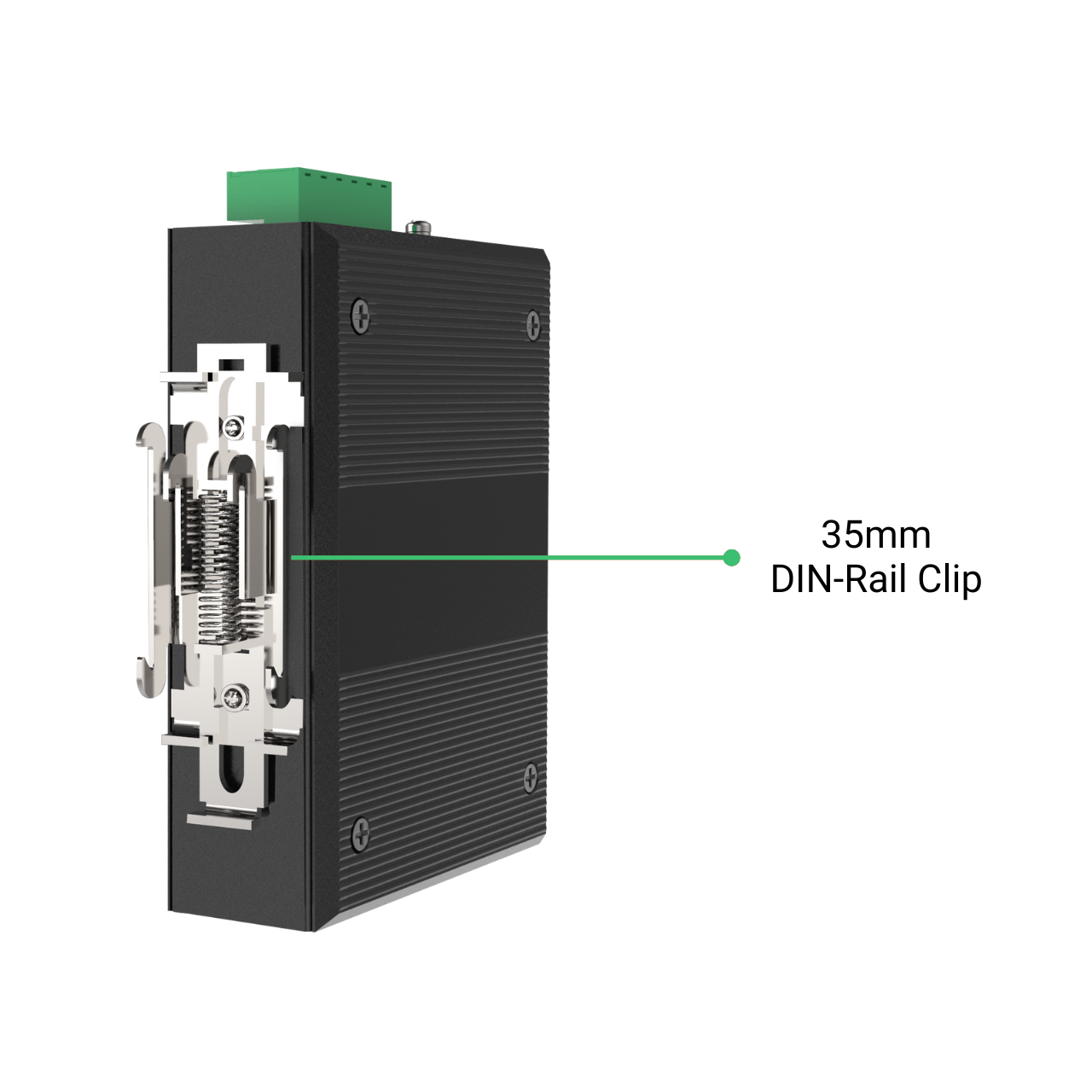

	Installation	DIN rail / Wall mount
Environmental	Operating Temp	-40℃~+75℃
	Storage Temp	-40℃~+85℃
	Humidity	5%~90%RH non-condensing
	Certification	FCC RoHS CE
	MTBF	500,000 Hours

Model	Description
WXA-I04G-1SFP-P360	Industrial Ethernet PoE Switch, 4-Port 10/100/1000T 802.3at/bt 90W, 12-56VDC Input
Mounting Options	► Default DIN-Rail Bracket installed;
Power Options	► Power Supply is to be purchased separately
