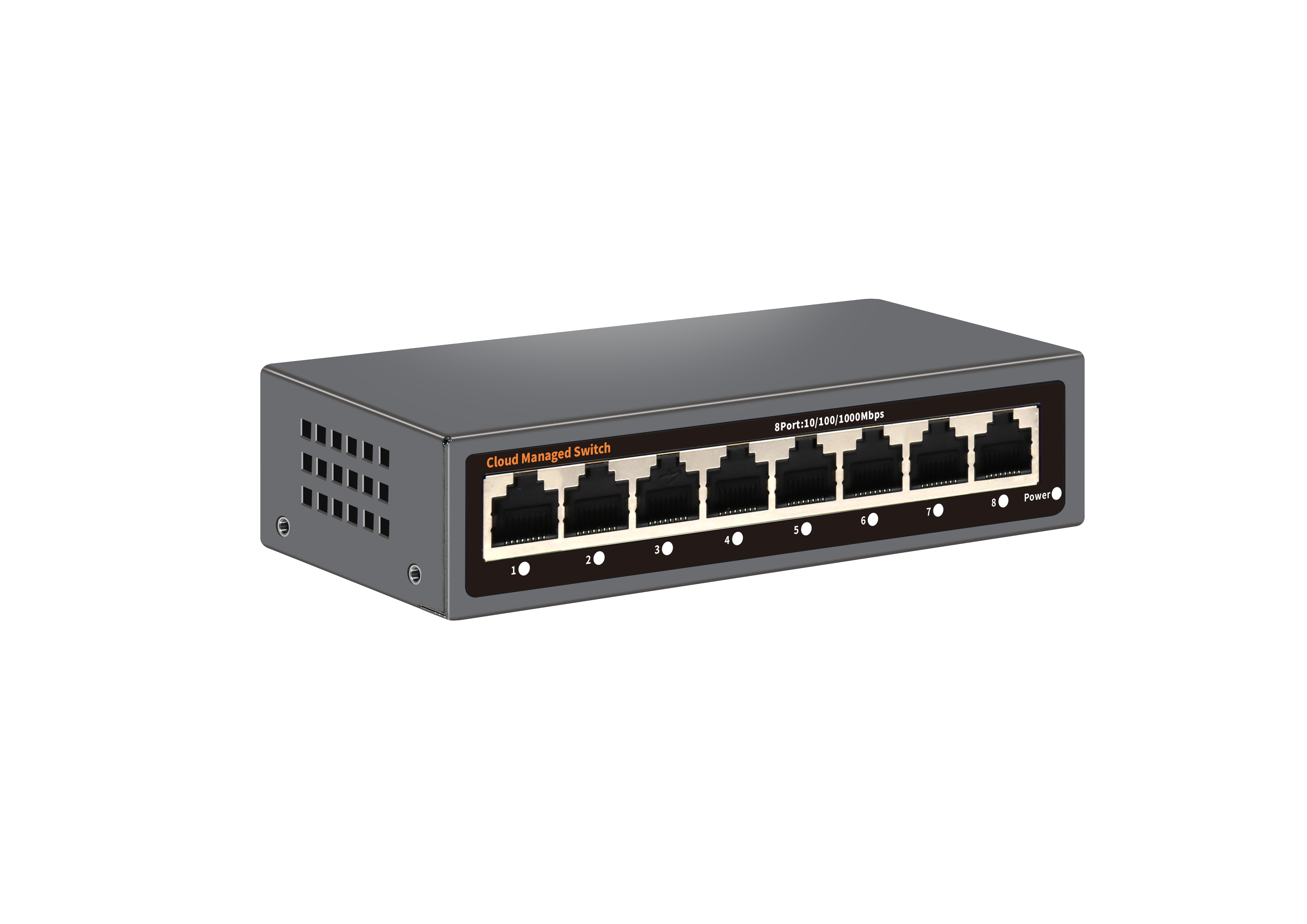

Cloud Managed 8-port Full Gigabit Ethernet Switch

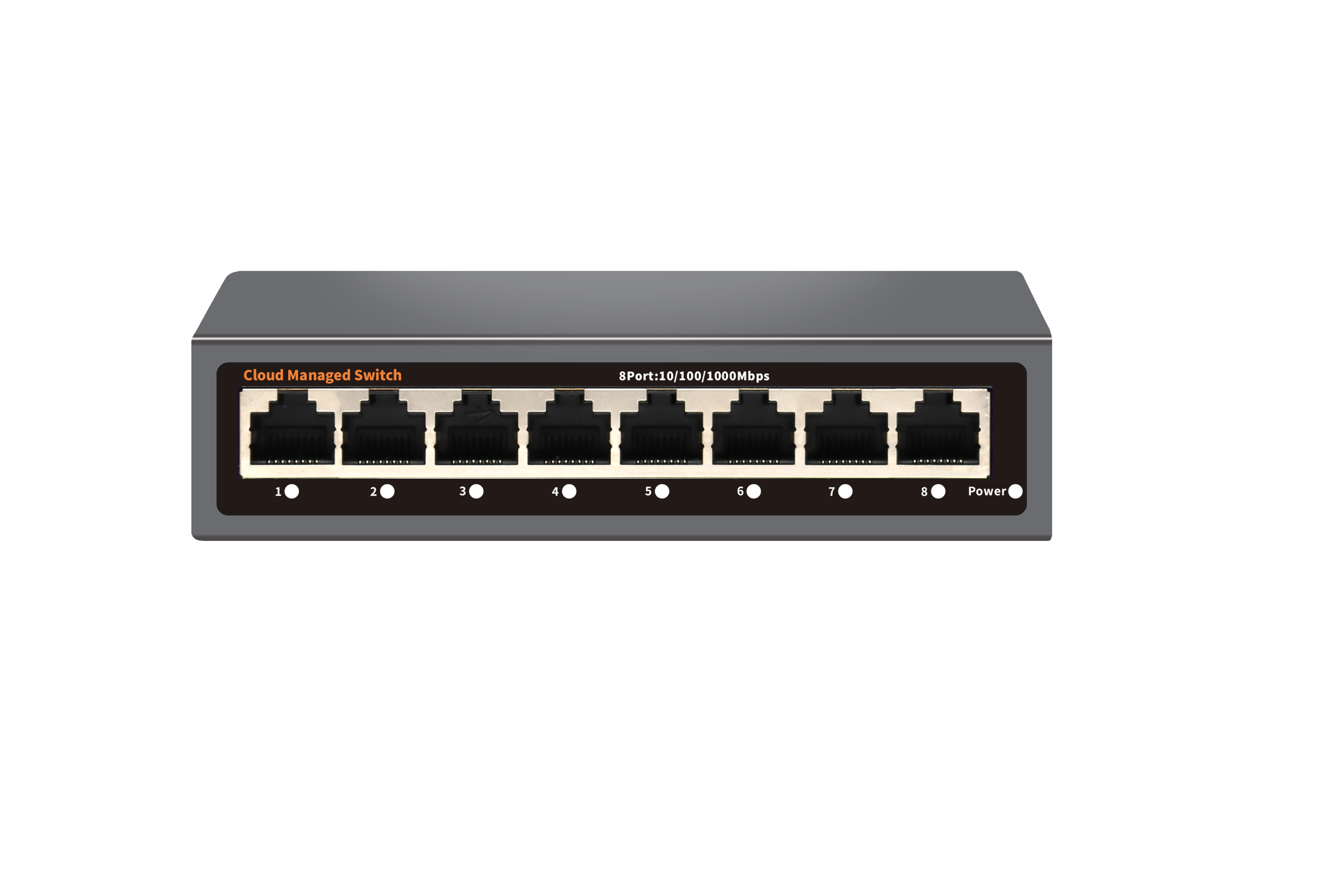

8-port 10/100/1000BASE-T RJ45 with auto MDI / MDI-X function

12VDC Input

￥ 0.00

Product Description

8-port 10/100/1000BASE-T RJ45 with auto MDI / MDI-X function

12VDC Input

This cloud managed gigabit switch adopts high-performance hardware chip with 4M large cache, stable data processing and forwarding capability. Equipped with 8 full gigabit RJ45 ports, total max power consumption 12W.

It supports complete Layer 2 management functions including VLAN, QoS, IGMP Snooping, loop protection, port aggregation, port mirroring and storm suppression.

It can be configured via web page, telnet, CLI or mobile APP cloud platform, widely used in small office, monitoring, retail and smart home networking scenarios.

► 8 x 10/100/1000BASE-T RJ45 Auto-MDI/MDI-X Ports

► Supports Full/Half-duplex, Auto-negotiation

► IEEE 802.3az Energy Efficient Ethernet (EEE)

► Supports VLAN, QoS, IGMP Snooping and management

► Environmentally Operating Temperature: -10°C to 55°C

Ethernet Standards	IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3ab, IEEE802.1Q, IEEE 802.1p
Packet Forwarding Rate	10BASE-TX: 14880 pps/port 100BASE-TX: 148800 pps/port 1000BASE-TX: 1488000 pps/port
Port Functions	Power priority, fast forwarding, auto MAC learning & aging IEEE802.3X full-duplex flow control & half-duplex backpressure
MAC Address Table	8K entries
Backplane Bandwidth	16Gbps
Total Forwarding Rate	11.9Mpps
Web Management	Dual IP management Fixed static IP: 10.77.88.100Default IP: DHCP auto-obtain, static IP configurable on web UI Default account: Username: admin, Password: admin
IP Configuration	Static IP setup / DHCP auto acquisition
User Management	Modify login username & password
Port Management	Port enable/disable control Adjust speed, duplex mode, flow control & MTU value
Link Aggregation	Max 4 aggregation groups, up to 8 member ports per group
Port Isolation	Support port isolation function
Loop Protection	Built-in loop detection & protection
Port Mirroring	Up to 4 mirror sessions Mirror ingress & egress traffic of ports and aggregation groups
Port Rate Limiting	Inbound speed limit per port
EEE	IEEE 802.3az energy-saving Ethernet
VLAN	Port-based VLAN / 802.1Q tagged VLAN / Voice VLAN / Surveillance VLAN
QoS	Traffic classification: 802.1p COS, DSCP, port-based Scheduling modes: SP, WRR, WFQ
Spanning Tree	Support STP, RSTP
LLDP	Support LLDP link layer discovery protocol
Multicast	Support IGMP Snooping & IGMP Querier

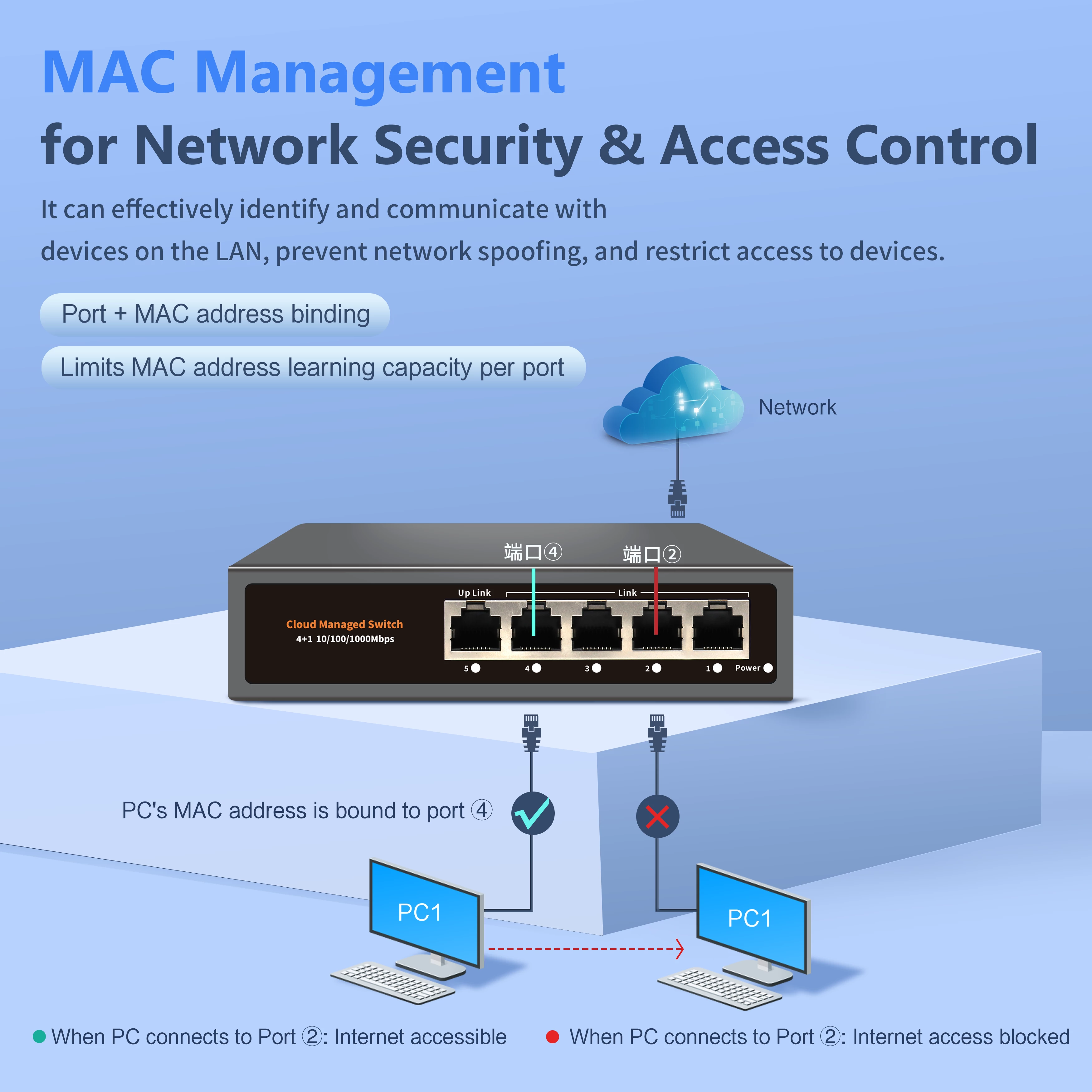

MAC Management	Limit learned MAC count per port Add/delete static MAC entries MAC address search & dynamic MAC table view
Storm Suppression	Restrain unknown unicast, multicast & broadcast storm traffic
Traffic Statistics	Monitor Tx/Rx byte & packet counters
Cable Tester	Detect cable connection status & cable length
Network Diagnosis	Built-in PING tool for network troubleshooting
Cloud Management	Mobile APP remote cloud management
System Maintenance	Firmware upgrade Configuration backup & restore Factory reset / web reboot / config save Chinese & English UI switch Customizable device system name

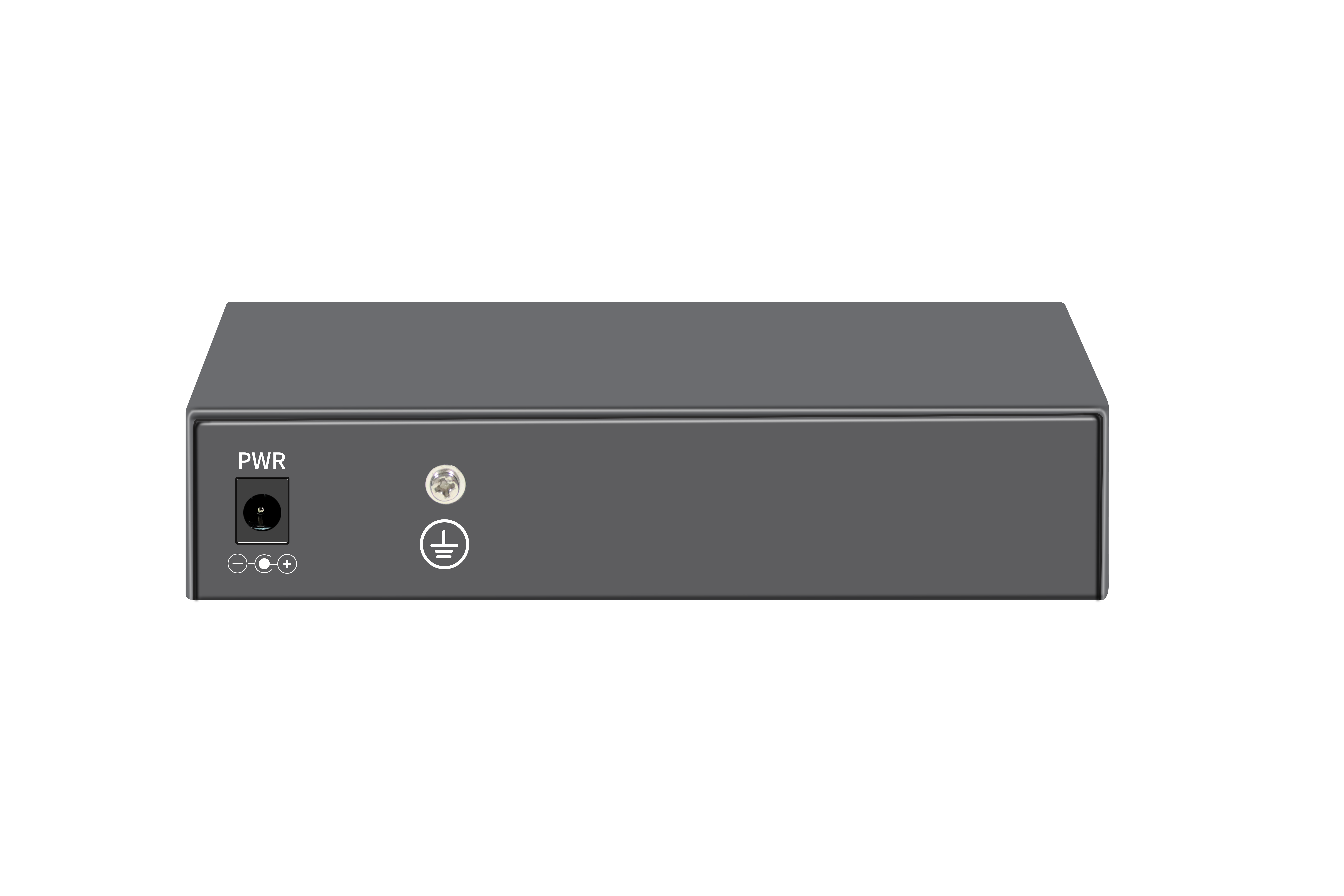

DC Internal Working Voltage	12V DC
DC Working Current	≤1A
DC Standby Power	≤1W
Operating Temperature	-10°C ~ +55°C
Storage Temperature	-40°C ~ +85°C
Operating Humidity	10%~90% RH, non-condensing
Storage Humidity	5%~95% RH, non-condensing
Max Working Altitude	2000m (6500ft)
Cooling Method	Natural air cooling
