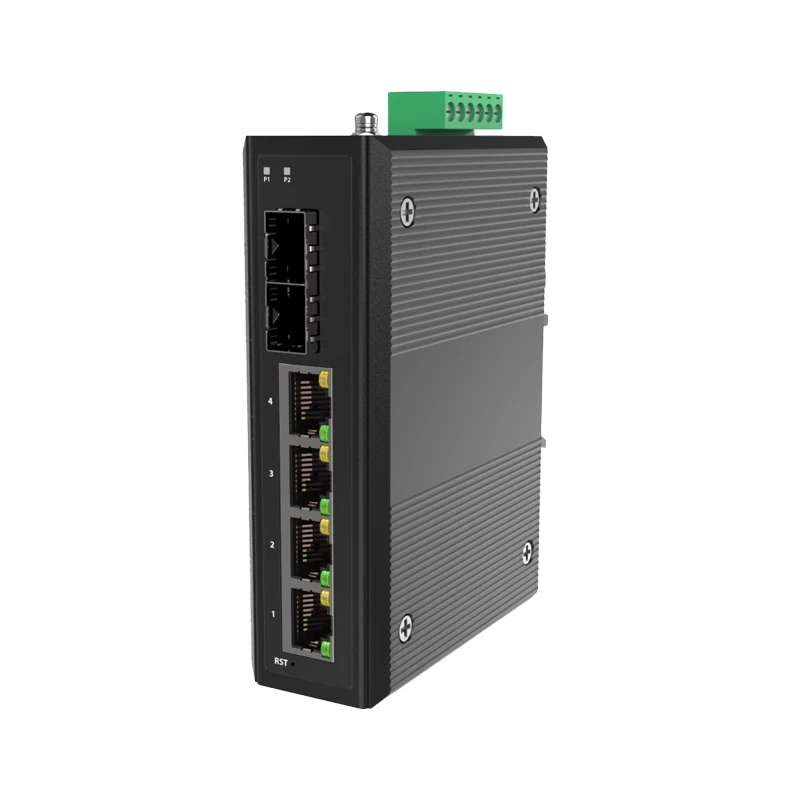

4-Port 10/100/1000TX + 2-Port 100/1000FX Industrial PoE Ethernet Switch

Model:WXA-I04G-2SFP

4-port 10/100/1000BASE-T RJ45 with auto MDI / MDI-X function

2×1.25G SFP ports
12-56VDC Input

￥ 0.00

Product Description

Model:WXA-I04G-2SFP

4-port 10/100/1000BASE-T RJ45 with auto MDI / MDI-X function

2×1.25G SFP ports
12-56VDC Input

This industrial PoE switch features 4×10/100/1000Mbps Gigabit RJ45 ports and 2×1000Mbps SFP fiber uplink ports. It supports data aggregation and long-distance fiber transmission, adopting fanless cooling, wide temperature design and dual redundant power input. With IP40 aluminum housing, it adapts to harsh industrial, transportation and outdoor network environments.

4×10/100/1000Base-TX RJ45 ports, 2×100/1000Base-FX SFP fiber ports; 4 PoE capable ports
Auto-MDIX, full-duplex / half-duplex auto-negotiation
Fiber interface supports SC / LC connector, singlefiber and dual-fiber transmission
Supports 9K bytes jumbo frame, compatible with multiple extended protocols
8K MAC address table
IEEE 802.3az Energy-Efficient Ethernet support
IPv6 protocol compliant
8KV surge protection on copper ports, suitable for outdoor deployment
Comprehensive LED status indicators for real-time working status visibility
Power input reverse-polarity protection against mis-wiring damage

Field End Devices IP Cameras / PLC / Industrial Sensors │ ▼ ┌────────────────────────────────────────────────┐ │4×10/100/1000TX PoE + 2×100/1000FX SFP Switch │ └──────────────────┬────────────────────┬────────┘ │ │ PoE RJ45 Access SFP Fiber Uplink │ │ │ Long‑haul Fiber Transmission │ │ └───────────┬────────┘ ▼ Control Room / NMS Platform

Port Configuration	4×10/100/1000Base-TX RJ45 PoE ports
	2×100/1000Base-FX SFP fiber ports
	Fiber supports SC / LC connector
	Single-fiber / dual-fiber transmission
Ethernet Standards	IEEE 802.3
	IEEE 802.3u
	IEEE 802.3ab
	IEEE 802.3z
	IEEE 802.3x Flow Control
	IEEE 802.1D2004 STP
	IEEE 802.1w RSTP
	IEEE 802.1s MSTP
	IEEE 802.1p QoS
	IEEE 802.1Q VLAN Tagging
	IEEE 802.1X Authentication
	IEEE 802.3ad LACP
	IEEE 802.3az EEE
	IPv6
Switch Performance	Backplane Bandwidth: 12Gbps
	Packet Forwarding Rate: 1488100 pps(64-byte frame)
	Latency: ＜7μs
	Packet Buffer: 1Mbits
	MAC Address Table: 8K
	Max Jumbo Frame: 9K bytes
	Forwarding Mode: Store and Forward
PoE30W Version	PoE Ports: Port1-4
	Standard: IEEE802.3 af/at
	Per-port Max: 30W
	Total PoE Budget: 120W
	PoE Pin: 1/2(+), 3/6(-)
	Input Voltage: DC 48-56V
PoE90W Version	PoE Ports: Port1-4
	Standard: IEEE802.3 af/at/bt
	Perport Max: 90W
	Total PoE Budget: 360W
	PoE Pin: 1/2(+),3/6(-),4/5(+),7/8(-)
	Input Voltage: DC 52-56V
Power Supply	Dual 956VDC redundant input
	Reversepolarity protection
	Max device consumption: 10W (without PoE load)
	Non-PoE working voltage: 9-56VDC
Surge Protection	8KV surge protection on copper ports
LED Indicators	POWER: Solid-on for power input
	RJ45 Link/Act: Solid-on link up, Blinking data transmission
	Fiber Link/Act: Solid-on link up, Blinking data transmission
Mechanical	IP40 aluminum housing
	Fanless natural cooling
	Installation: DIN-rail / wall-mount
	Dimension(D×W×H): 120×90×35mm
	Weight: 350g
Environmental	Operating Temperature: -40℃ ~ 75℃
	Storage Temperature: -40℃ ~ 85℃
	Operating Humidity: 5%-90% noncondensing
Reliability	MTBF: 500,000 hours
Certifications	CE,FCC,RoHS

Model	Description
WXA-I04G-2SFP	Industrial PoE Swtich, 2-port 1.25G SFP Uplink + 4-port 10/100/1000M RJ45,802.3af/at/bt, 12-56VDC

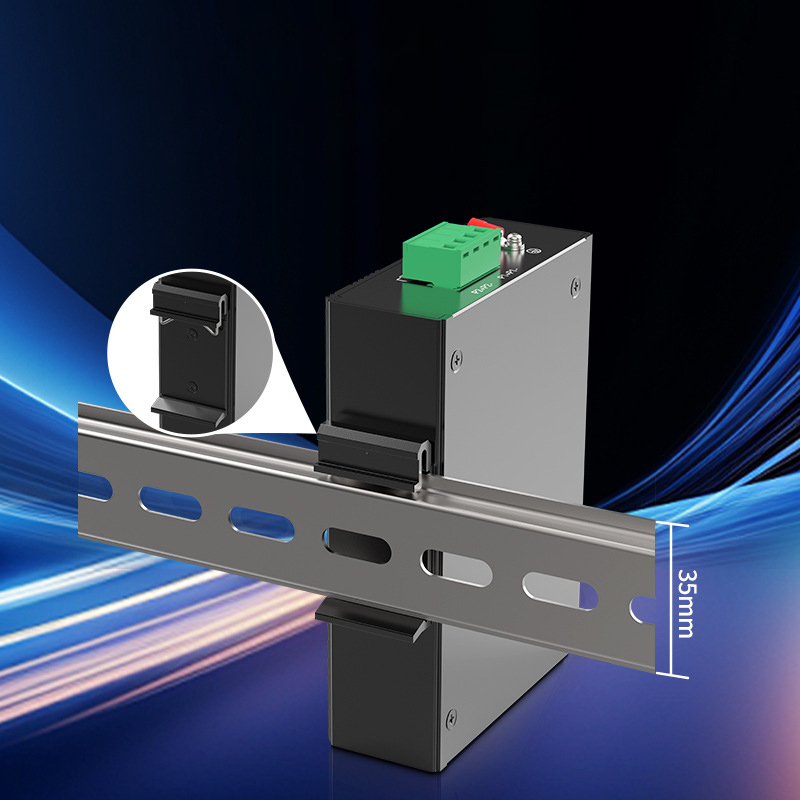

Mounting Options	► Din-rail Mount Bracket is included.
