Standards

IEEE 802.3 for 10BaseTIEEE 802.3u for 100BaseT(X) and 100BaseFX

IEEE 802.3ab for 1000BaseT(X)

IEEE 802.3z for 1000BaseSX/LX/LHX/ZXIEEE 802.3x for flow control

IEEE 802.1D-2004 for Spanning Tree Protocol

IEEE 802.1w for Rapid Spanning Tree Protocol

IEEE 802.1s for Multiple Spanning Tree Protocol

IEEE 802.1p for Class of Service

IEEE 802.1Q for VLAN Tagging

IEEE 802.1X for authentication

IEEE 802.3ad for Port Trunk with LACP

Packet buffer

4Mbits

Maximum packet length

Up to 10k Bytes

MAC address table

8K

Transmission mode

Store and Forward (full/half duplex mode)

Exchange property

Delay time: < 7μsBackplane bandwidth: 24GbpsPacket forwarding rate: 1488100 (64Byte)

Power (LED)

Connect-always

RJ45 (LED)

Link/Act: connect-always; data exchange-twinkle

Environmental

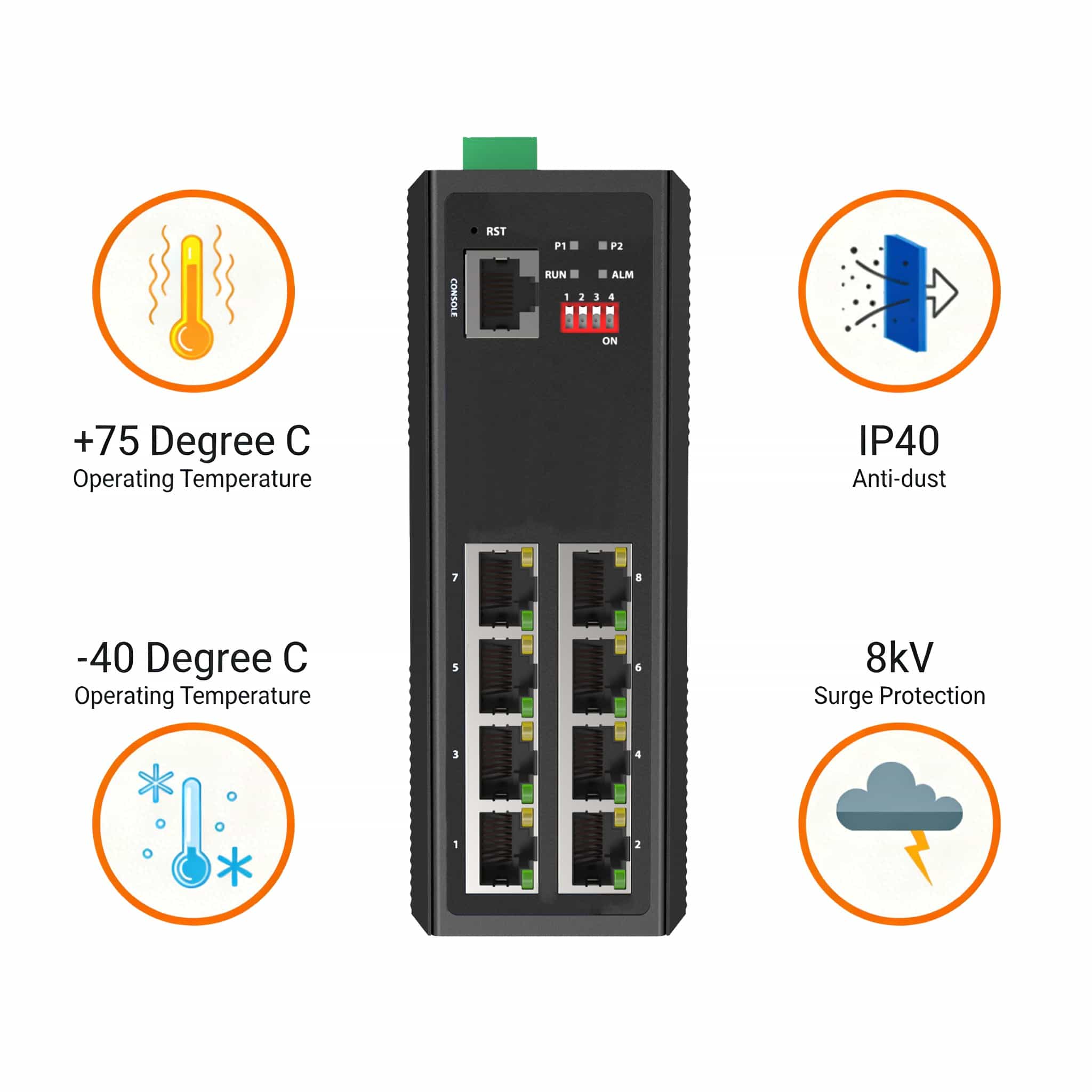

Operating Temperature

-40℃~75℃

Relative Humidity

5%~90% non-condensing

Storage Temperature

-40℃~85℃

MTBF

500,000 hours

PoE (Power over Ethernet)

PoE Ports

Port 1-8

Pin Assignment

Default: 1/2/4/5(+), 3/6/7/8(-)

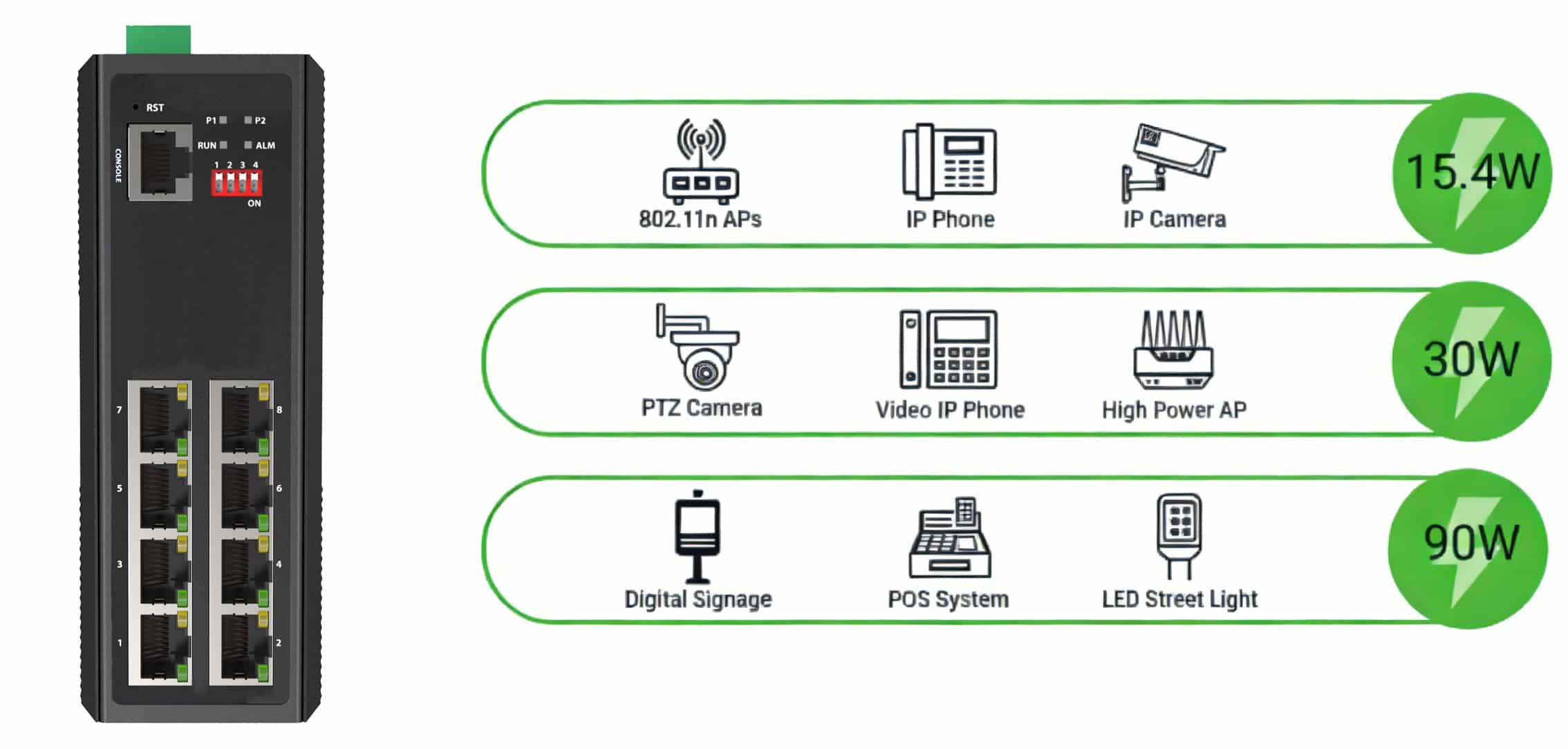

Max Power Per Port

IEEE 802.3af/at/bt 90W

Total PWR / Input Voltage

DC12-56V

Power Consumption

10Watts Max (without PoE load)

PoE Power Budget

Mode: 12VDC, Total PoE Power (Max) 70WMode: 24VDC, Total PoE Power (Max) 120WMode: 48VDC, Total PoE Power (Max) 240WMode: 52-56VDC, Total PoE Power (Max) 480W

Physical

Dimensions (W x D x H)

138 x 108 x 49 mm

Weight

0.68Kg

Casing

IP40 aluminum case

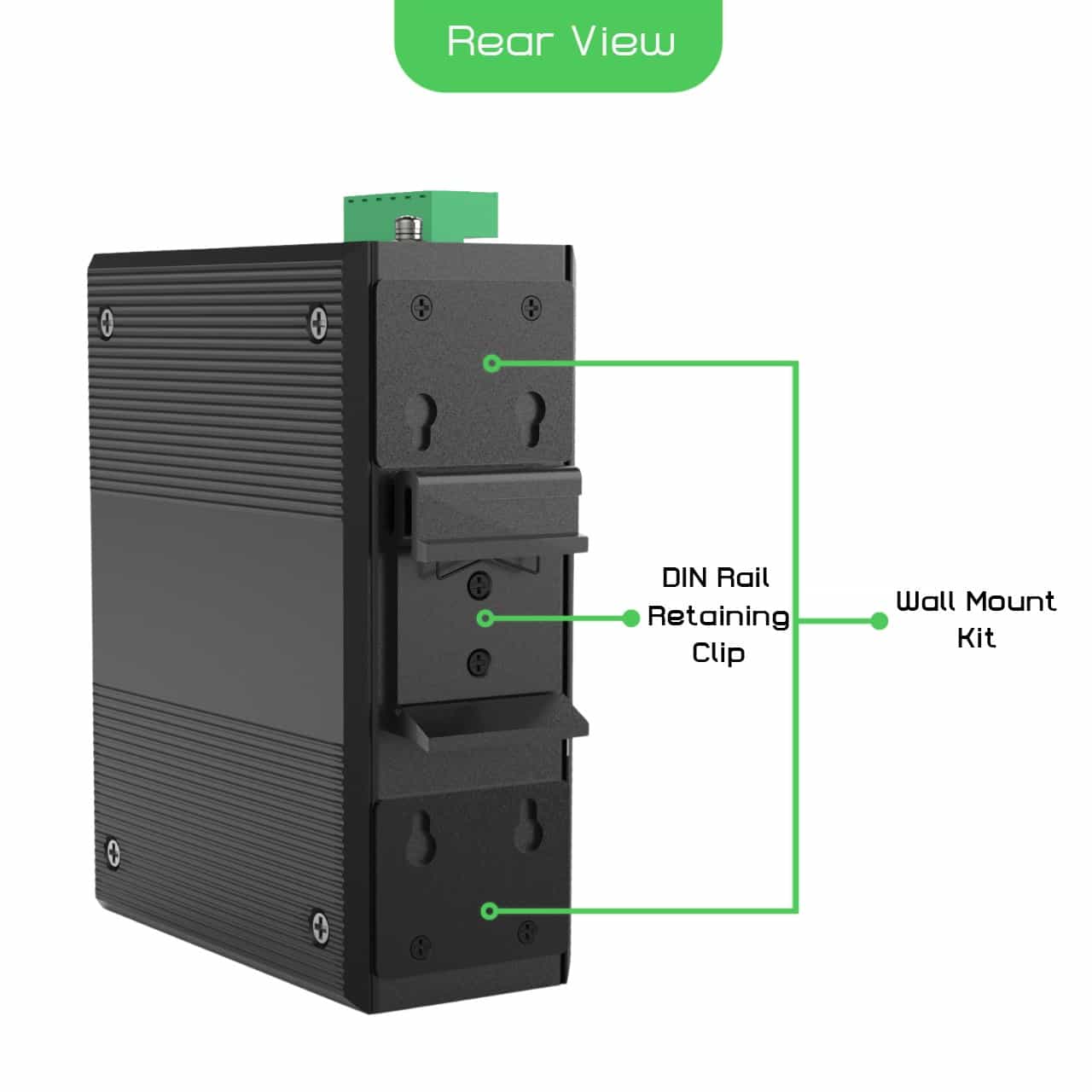

Mounting Options

DIN Rail / Wall-Mount

Software

Redundant Network

Support STP/RSTP/MSTP/ERPSv2 (Sub-50ms), Link Aggregation

Multicast Support

Support IGMP Snooping V1/V2/V3, GMRP, GVMP, IEEE 802.1Q

VLAN

Supports IEEE 802.1Q (4K VLANs), QINQ, Double VLAN

Time Management

SNTP

QOS

Flow-based (redirection, rate limiting, packet filtering); 8 queues/port; 802.1p/DSCP priority mapping; Diff-Serv; Priority Marking/Remark; Scheduling (SP, WRR, SP+WRR)

ACL

Port/VLAN ACL; L2-L4 packet filtering (80-byte packet matching); Supports filtering by MAC (src/dst), IP (src/dst), IP protocol, TCP/UDP port/range, VLAN, etc.

Diagnostic Maintenance

Support port mirroring, Syslog, Ping

Management Function

Supports CLI, WEB, SNMPv1/v2/v3, Telnet; EEE, LLDP; DHCP Server/Client (IPv4/IPv6); Cloud/MQTT management

Alarm Management

Support 1 way relay alarm output, RMON, TRAP

Security

Broadcast Storm Protection, HTTPS/SSLv3, AAA & RADIUS, SSH2.0Support DHCP Snooping, Option 82, 802.1X security accessSupport user hierarchical management, ACL access control listSupport DDOS, port-based MAC filtering / binding, MAC black holes, IP source protection, Port isolation, ARP message speed limit

Advance Layer 2+ Features

IPv4/IPv6 Management; Static Route

DIP Switch

#1

ON: RSTP Disabled OFF: RSTP Enable (Default)

#2

ON: Port VLAN Enable OFF: Port VLAN Disable (Default)

#3

Function Reserve

#4

Function Reserve

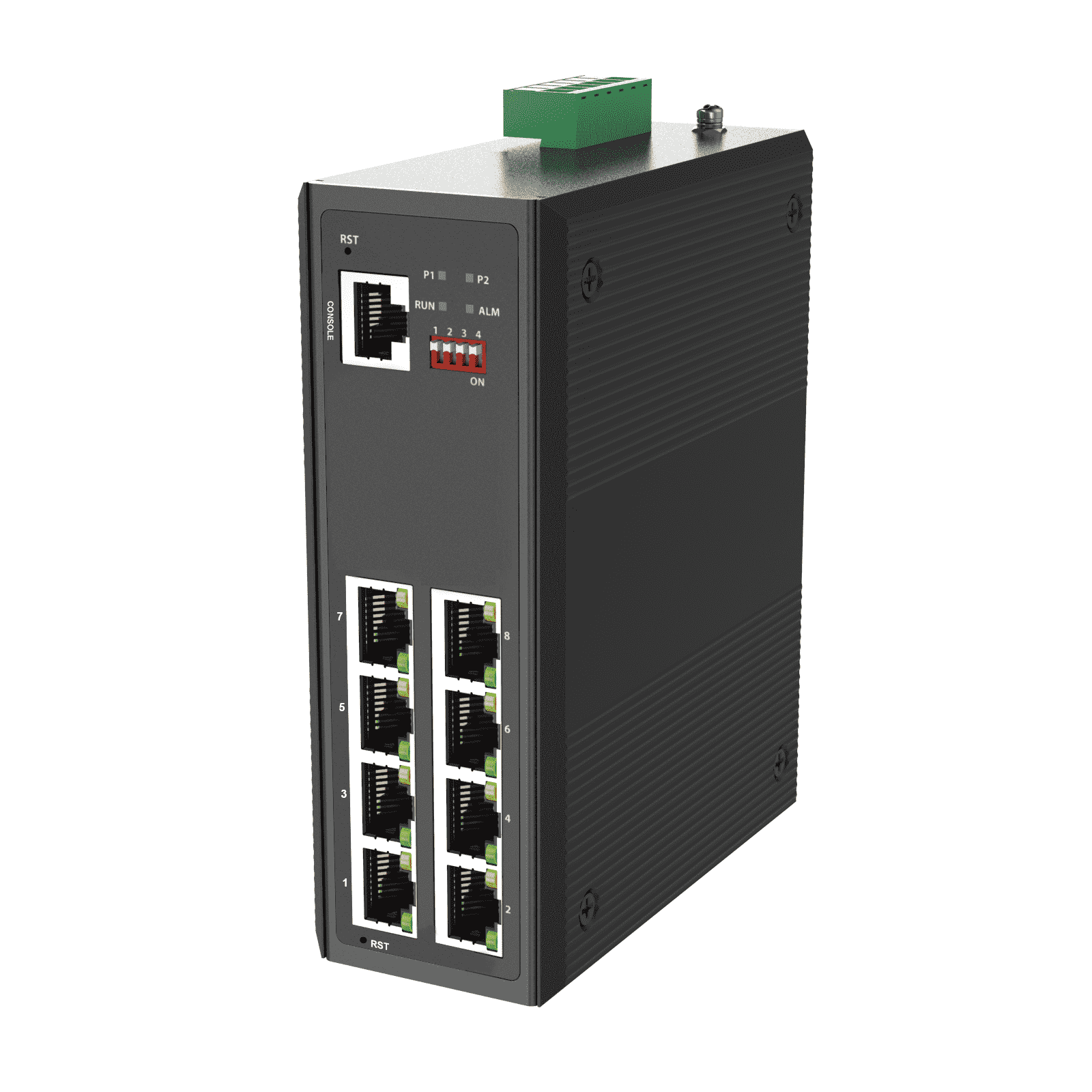

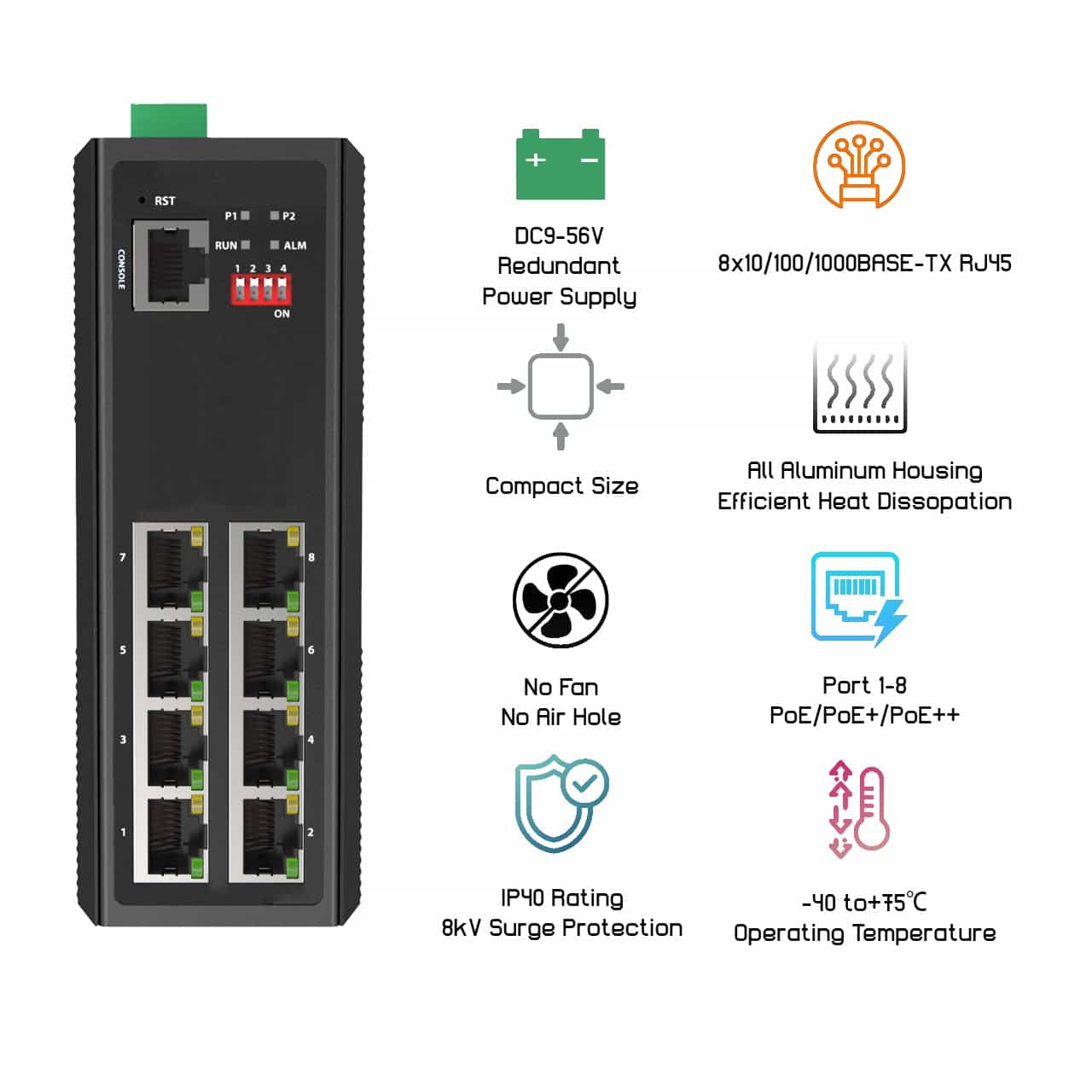

WXA-L2I08GM-PB240

8-Port 10/100/1000T, 12-56VDC  Input,802.3af/at/bt

Mounting Options

► Default DIN-Rail Bracket installed;

Power Options

► Power Supply is to be purchased separately
