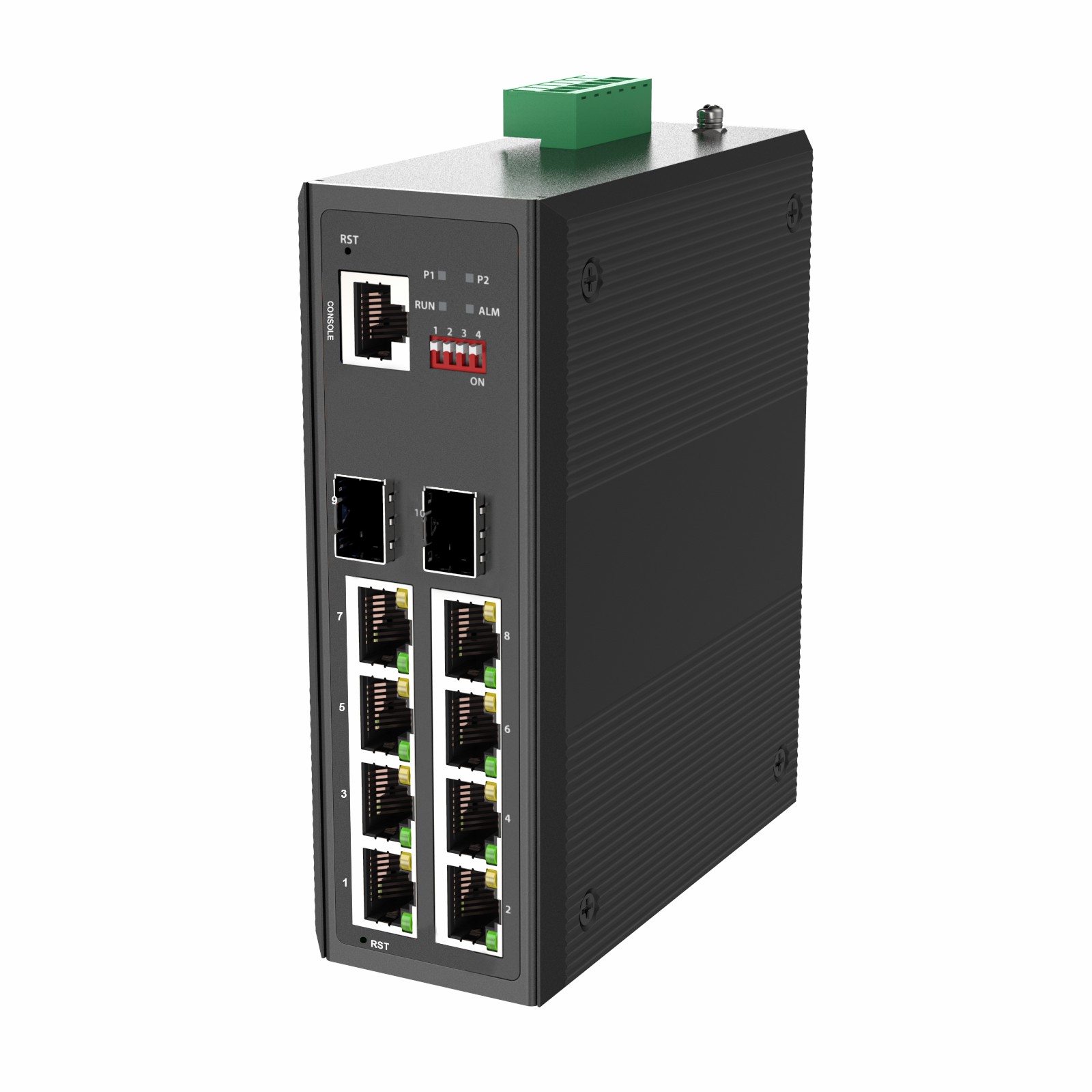

8-Port Gigabit TX + 2-Port Gigabit FX L2+ Managed Industrial Ethernet Switch

8-Port Gigabit TX + 2-Port Gigabit FX L2+ Managed Industrial Ethernet Switch

Model:WXA-L2I08GM-2SFP

►   8 x 10/100/1000BASE-T ports with Auto-MDI/MDI-X function

►   Supports Auto-Negotiation and 10/100Mbps half/full duplex and 1000Mbps full duplex

►   9~56VDC wide range power input



￥ 0.00
0.00

Product Description

Model:WXA-L2I08GM-2SFP

►   8 x 10/100/1000BASE-T ports with Auto-MDI/MDI-X function

►   Supports Auto-Negotiation and 10/100Mbps half/full duplex and 1000Mbps full duplex

►   9~56VDC wide range power input

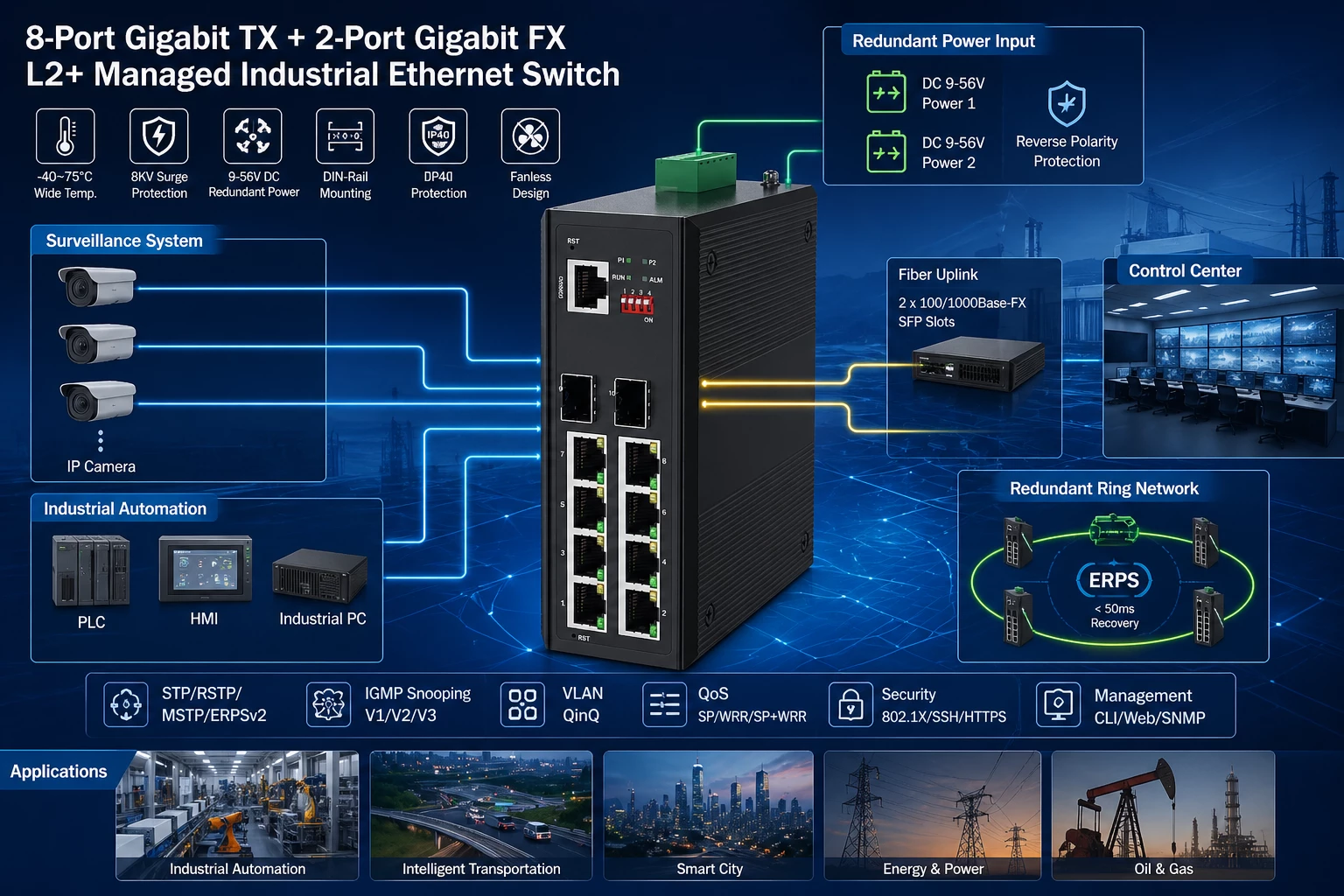

WXA-L2I08GM-2SFP is the new-generation managed industrial switch features 8×10/100/1000Base-TX ports and 2 gigabit uplink ports, delivering stable, reliable Ethernet transmission. Boasting robust design and reliability, it supports rich management functions, plus network redundancy protocols (STP/RSTP/MSTP/ERPS) and IGMP for multicast traffic—ideal for IP CCTV deployments.

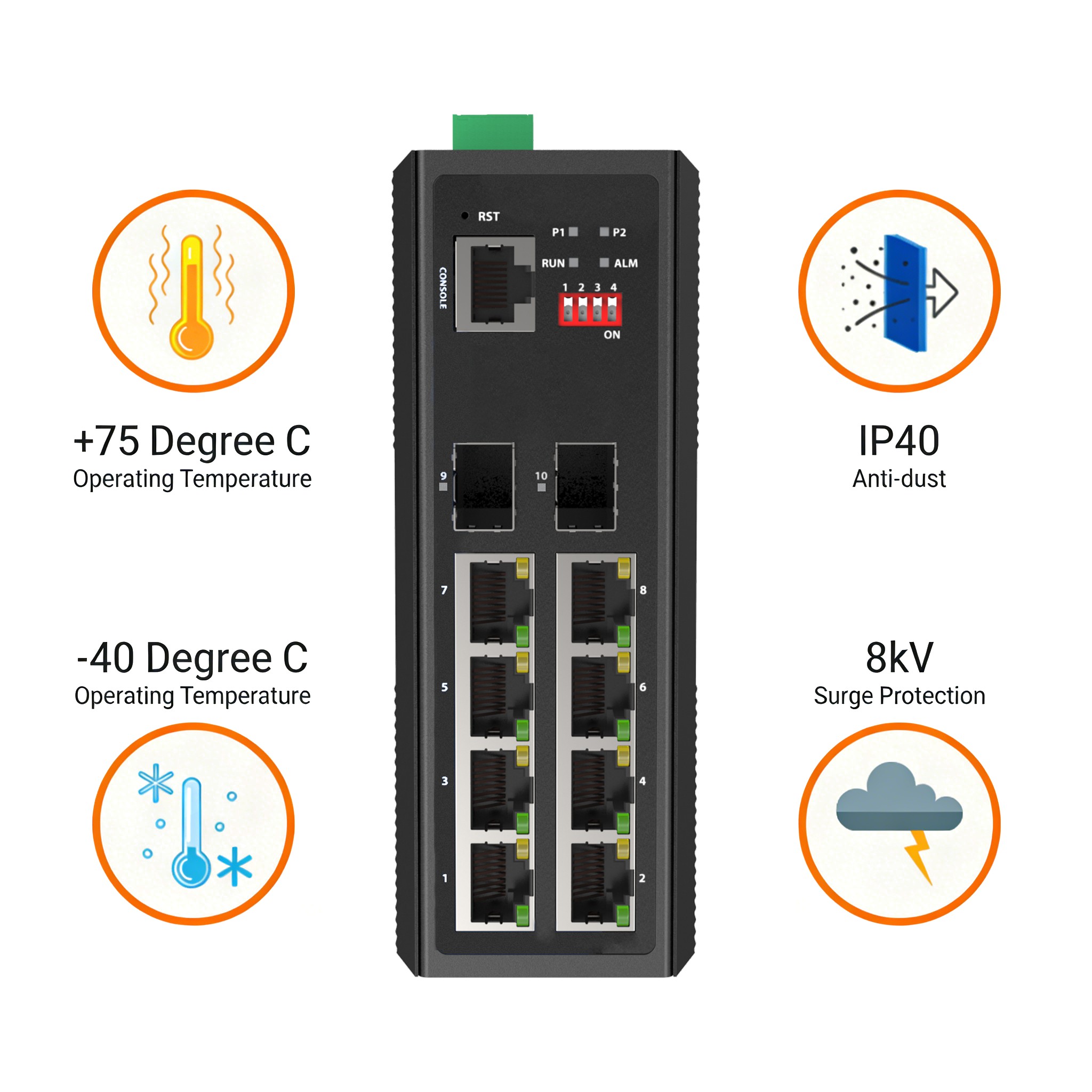

Equipped with dual redundant power inputs, the switch ensures uninterrupted operation for mission-critical, always-on applications. It operates in a wide industrial temperature range (-40~75℃) and comes in a rugged IP40 enclosure, supporting DIN rail or wall mounting. Perfect for harsh environments, it fits industrial networks, intelligent transportation systems (ITS), military, and utility applications where conditions exceed commercial product specifications.



  • 8x10/100/1000Base-TX RJ45 ports, 2x100/1000Base-FX fiber ports

  •  Provide SC/FC/ST/LC interface fiber port, support single/dual fiber transmission

  •  Support Auto-MDIX, and full/half duplex self-negotiation mode

  •  Support 10K bytes giant frame, compatible with various extension protocol

  •  8K MAC address table

  •  Full gigabit L2+ management, easy to manage the industrial network by CLI/WebGUI/NMS

  •  Build up a redundant network with STP/RSTP/MSTP/ERPSv2

  •  RADIUS, IEEE 802.1X, SNMPv3, HTTPs and SSH to enhance network security

  •  Bandwidth management prevents unpredictable network status with ”Lock Port” to restrict access to authorized MAC addresses

  •  QoS, Priority mode based on 802.1P, Port & DSCP, queue scheduling algorithm including SP, WRR&SP+WRR

  •  Support IEEE802.3az energy efficient Ethernet technology

  •  IP40 Aluminium case, Fanless design

  •  Electric 8KV surge protection, easy to use in outdoor environment

  •  -40 to +75℃ operating temperature

  •  9-56V DC redundant power with reverse polarity protection

  •  Power input polarity protection design, no worry about wrong operation

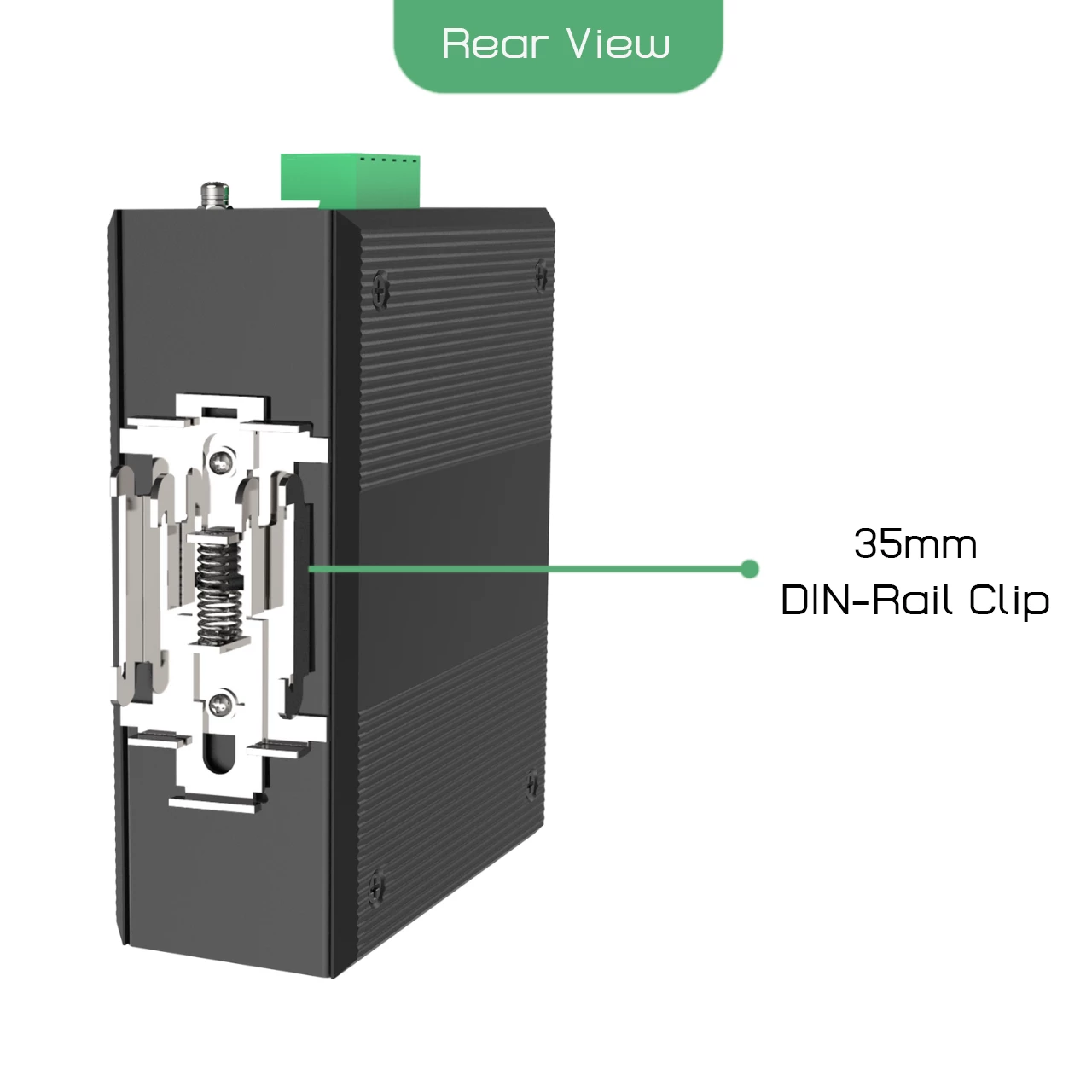

  •  DIN-rail and wall mount installation

  •  Optional support for IEEE 802.3 af/at/bt PoE

  •  Optional management function



Ethernet

Standards

IEEE 802.3 (10BaseT), 802.3u (100BaseT(X)/100BaseFX), 802.3ab (1000BaseT(X)), 802.3z (1000BaseSX/LX/LHX/ZX), 802.3x (Flow Control), 802.3ad (Port Trunk with LACP); IEEE 802.1D-2004 (STP), 802.1w (RSTP), 802.1s (MSTP), 802.1p (CoS), 802.1Q (VLAN Tagging), 802.1X (Authentication)


Packet Buffer

4Mbits


Max Packet Length

Up to 10K Bytes


MAC Address Table

8K


Transmission Mode

Store and Forward (full/half duplex)


Switching Performance

Latency: < 7μs; Backplane Bandwidth: 24Gbps; Packet Forwarding Rate: 1488100 pps (64Byte)

Interfaces

RJ45

8×10/100/1000Base-TX


Fiber Port

2×100/1000Base-FX

LED Indicators

Power

Steady on when connected


RJ45 Ports

Link/Act: Steady on when connected, blinking during data transmission


Fiber Ports

Link/Act: Steady on when connected, blinking during data transmission

Software

Redundancy Protocols

Supports STP/RSTP/MSTP/ERPSv2 (Sub-50ms), Link Aggregation


Multicast Support

IGMP Snooping V1/V2/V3, GMRP, GVMP, 802.1Q


VLAN

IEEE 802.1Q 4K VLAN, QinQ (Double VLAN)


Time Management

SNTP


QoS

Flow-based redirection/rate limiting/packet filtering; 8 output queues per port; 802.1P/DSCP priority mapping; Diff-Serv QoS; Scheduling algorithms: SP, WRR, SP+WRR


ACL

Port-based ACL, port+VLAN-based ACL; L2-L4 packet filtering (matches first 80 bytes); Supports filtering by MAC/IP/Destination IP/IP Protocol/TCP/UDP Port/VLAN, etc.


Diagnostic & Maintenance

Port mirroring, Syslog, Ping


Management Functions

CLI, WEB, SNMPv1/v2/v3, Telnet; EEE, LLDP, DHCP Server/Client (IPv4/IPv6), Cloud/MQTT


Alarm Management

1-way relay alarm output, RMON, TRAP


Security

Broadcast Storm Protection, HTTPS/SSLv3, AAA & RADIUS, SSH2.0; DHCP Snooping (Option 82), 802.1X; User hierarchical management, IP source guard, Port Isolation, ARP rate limiting, MAC filtering/binding, DDoS protection


Advanced L2+ Features

IPv4/IPv6 Management, Static Routing

DIP Switch

#1

ON: RSTP Disabled; OFF: RSTP Enabled (Default)


#2

ON: Port VLAN Enabled (LAN ports only communicate with SFP uplinks); OFF: Port VLAN Disabled (Default)


#3

ON: SFP Port 100M (Forced);

OFF: SFP Port 100/1000M (Auto-negotiation, Default)


#4

Function Reserved


Note:

DIP switch settings require device reboot to take effect.

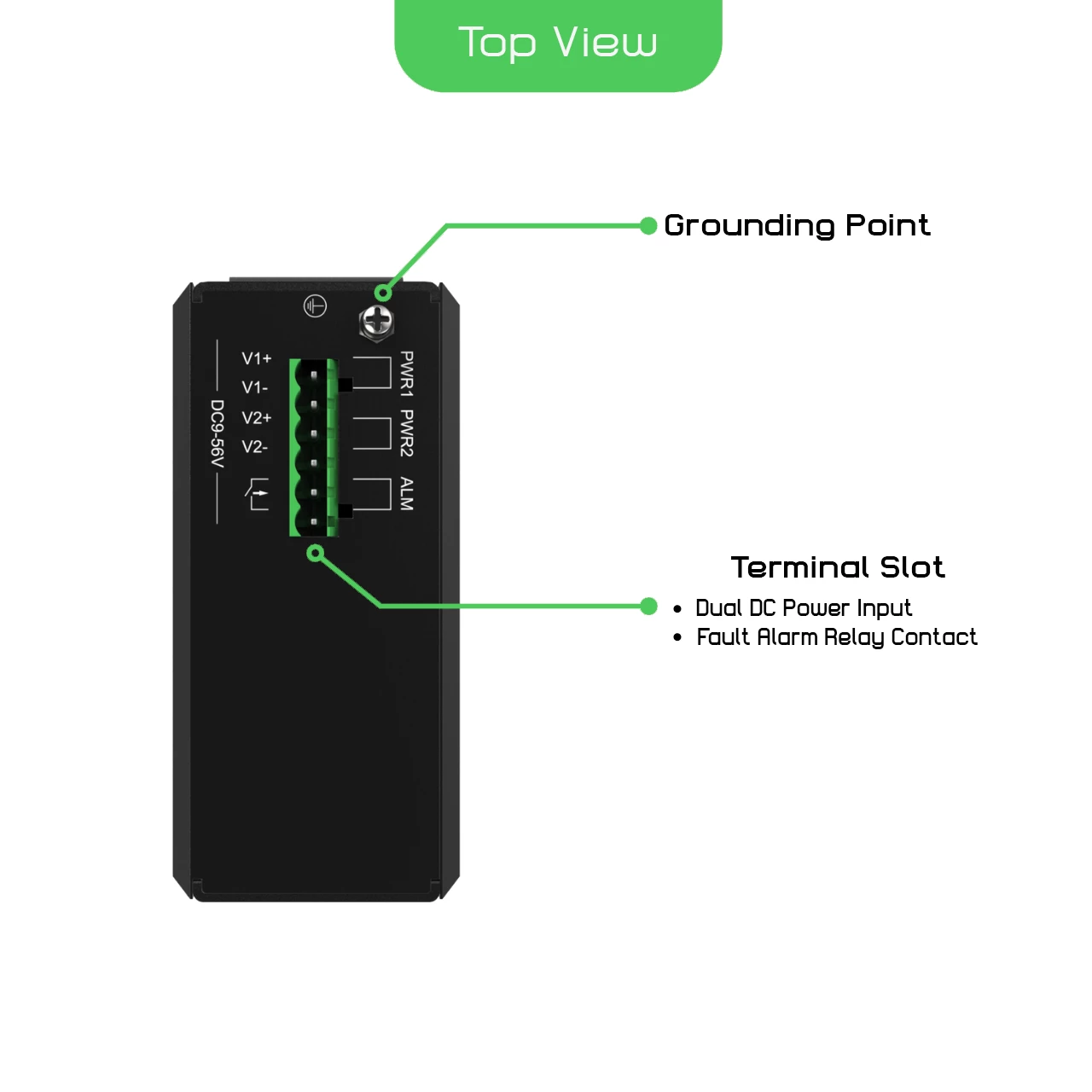

Electrical & Mechanical

Input Method

Phoenix terminal, DC jack


Redundant Input

DC 9-56V, dual redundant inputs


Protection Functions

Overload protection, reverse polarity protection


Power Consumption

< 10W under full load


Protection Grade

IP40 aluminum case


Cooling Mode

Natural cooling, fanless design


Dimensions (W×D×H)

138mm × 108mm × 49mm


Installation

DIN rail/wall-mountable


Weight

0.68Kg

Environmental

Operating Temperature

-40℃ ~ 75℃


Operating Humidity

5% ~ 90% non-condensing


Storage Temperature

-40℃ ~ 85℃



Certifications

MTBF

500,000 hours


EMI

FCC Part15 Subpart B Class A, EN 55022 Class A


EMS

EN61000-4-2 (ESD), EN61000-4-3 (RS), EN61000-4-4 (EFT), EN61000-4-5 (Surge), EN61000-4-6 (CS), EN61000-4-8, EN61000-4-11


Mechanical Reliability

IEC60068-2-27 (Collision), IEC60068-2-32 (Drop), IEC60068-2-6 (Vibration)


Safety Grade

EN60950-1


Model

Description

WXA-L2I08GM-2SFP

8-Port 10/100/1000T,2×100/1000Base-FX,9-56VDC  Input,802.3af/at/bt optional

Mounting Options

► Default DIN-Rail Bracket installed;

Power Options

► Power Supply is to be purchased separately
