Active 1000Mbps 4 Port PoE Extender

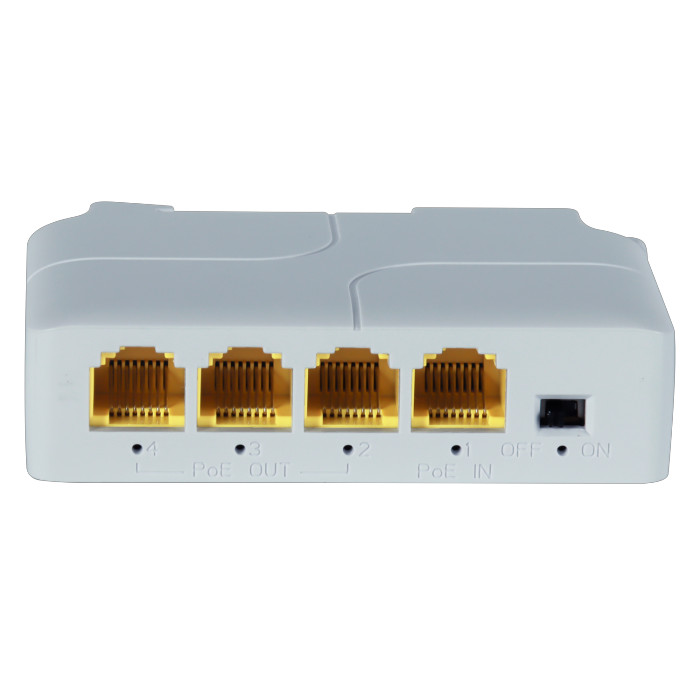

Active 1000Mbps 4 Port PoE Extender

Model:WXA-AT13G-A

1*IEEE802.3af/at (PoE) powered port input

3*IEEE802.3af/at (PoE) powered port output

With network and POE relay extension role


￥ 0.00
0.00

Product Description

Model:WXA-AT13G-A

1*IEEE802.3af/at (PoE) powered port input

3*IEEE802.3af/at (PoE) powered port output

With network and POE relay extension role


This is a 1000Mbps Ethernet PoE Extender, which provides 1*1000Mbps IEEE802.3af/at(PoE) powered port input and 3*1000Mbps IEEE802.3af/at(PoE) powered ports output. The whole power is 30W, and the average output power is 8W per port.

  • 1*IEEE802.3af/at (PoE) powered port input

  • 3*IEEE802.3af/at (PoE) powered port output

  • With network and POE relay extension role

  • Support Din-rail mounting

Network Standard

IEEE 802.3、IEEE 802.3u、IEEE 802.3x

Port

3*10/100/1000Mbps RJ45 power supply port

1*10/100/1000Mbps RJ45 receiving port

POE Power

The whole power is 30W

Output power of single port is 24W, average output power per port is 8W

POE Connection

POE input receiving wire core: 1/2+, 3/6-, 4/5+, 7/8-

POE output power supply core: 1/2+, 3/6-

100M Transmission

Performance

Store and forward

MAC address table 2k

Switching capacity 10Gbps

Forwarding Rate

10BASE-T:14880PPS/port

100BASE-tx：148800pps/port

1000BASE-tx：1488000pps/port

Port Function

Power priority mechanism, fast and forward, MAC automatic

learning and aging IEEE802.3X Full-duplex and backpressure for half-duplex mode

Environment

Operating Temperature：-10℃ - -55℃

Power

Input：DC44-57V，30W；Output：DC44-57V，24W

Weight &Size

55g

82mm×52mm×23mm


Model

Description

WXA-AT13G-A

1*1000Mbps IEEE802.3af/at(PoE) powered port input

and 3*1000Mbps IEEE802.3af/at(PoE) powered ports output
