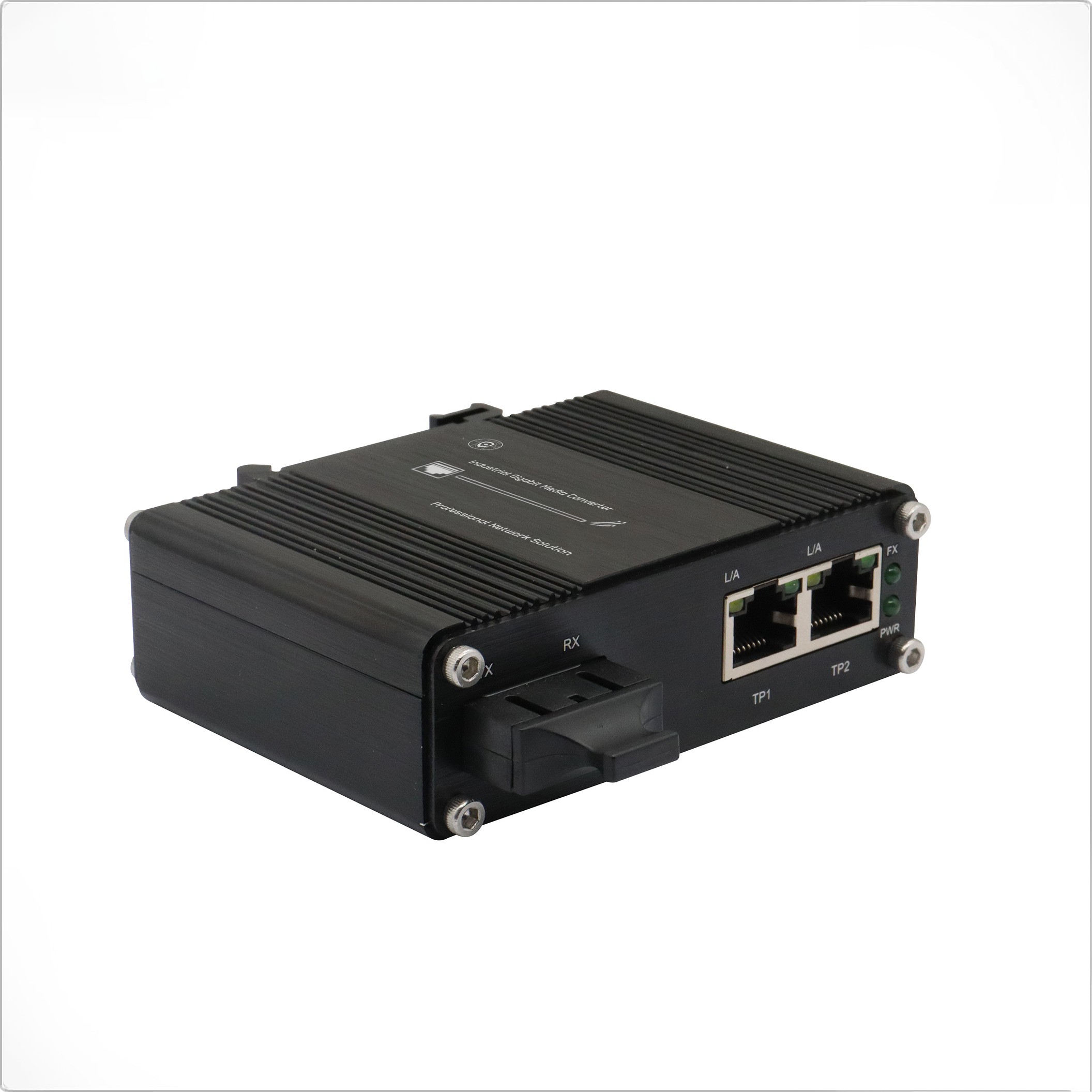

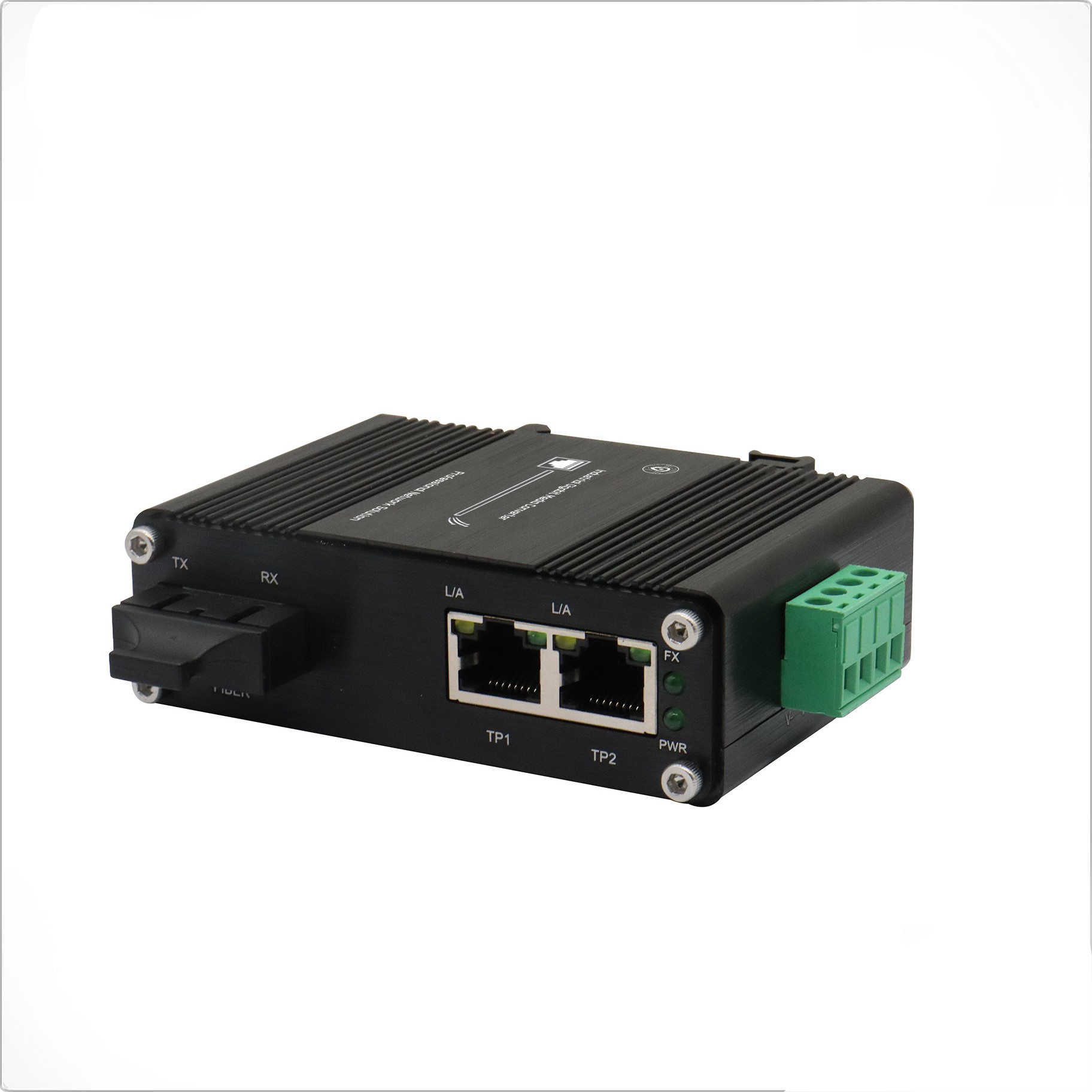

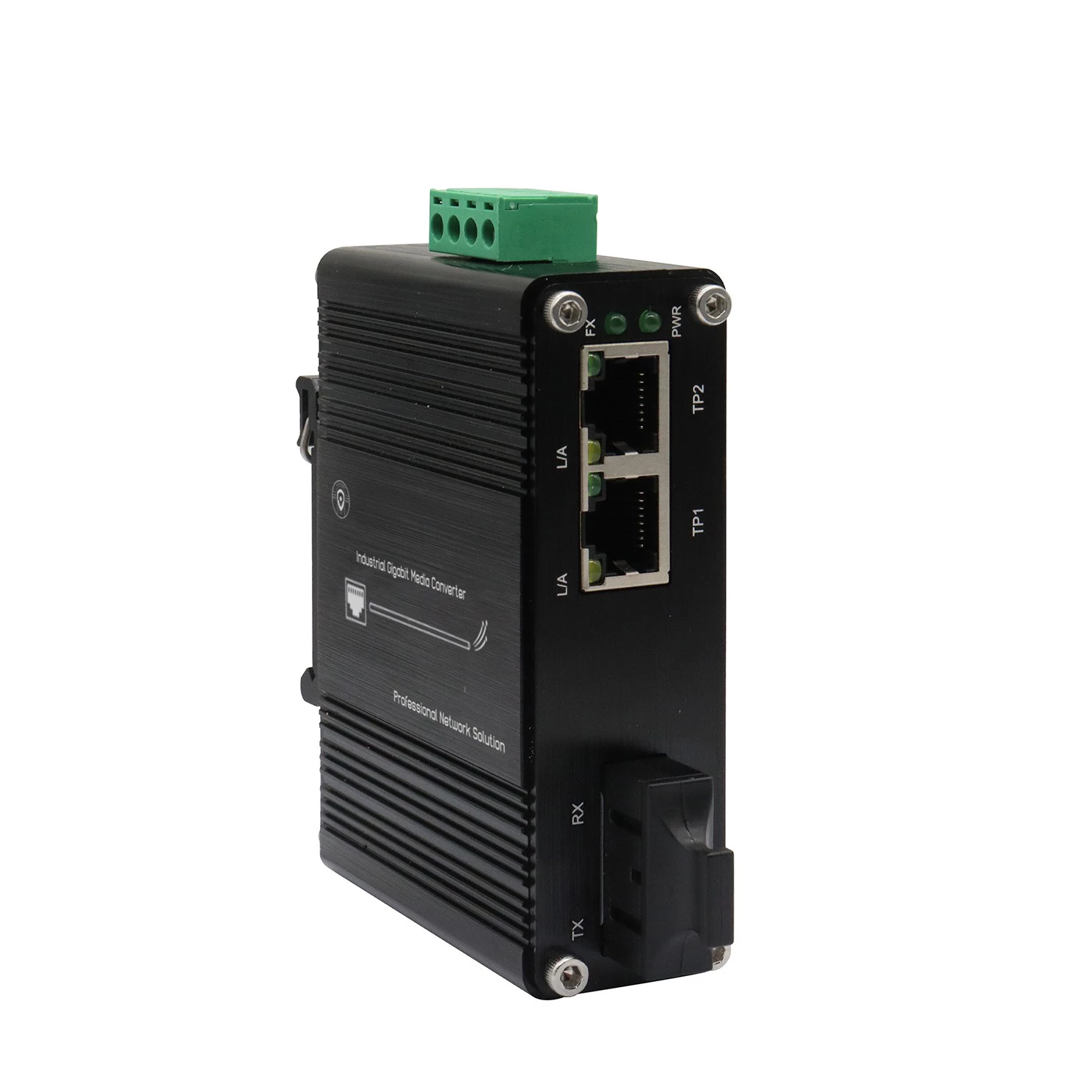

Mini Industrial Gigabit Media Converter 2-Port Gigabit RJ45 + 1-Port Gigabit SC

Mini Industrial Gigabit Media Converter 2-Port Gigabit RJ45 + 1-Port Gigabit SC

Model:WXA-I02G-1SC

►    2-Port 10/100/1000BASE-T RJ45 with auto MDI / MDI-X function

►    1-Port 1000Base-X

►    IEEE 802.3az Energy Efficient Ethernet (EEE)

►    12~48VDC Terminal Block Power Input


￥ 0.00
0.00

Product Description
Model:WXA-I02G-1SC

►    2-Port 10/100/1000BASE-T RJ45 with auto MDI / MDI-X function

►    1-Port 1000Base-X

►    IEEE 802.3az Energy Efficient Ethernet (EEE)

►    12~48VDC Terminal Block Power Input


WXA-I02G-1SC series hardened media converter is a high-performance industrial networking device tailored for copper-fiber hybrid network deployment. It is configured with 2×10/100/1000BASE-T Ethernet ports and 1×1000BASE-X fiber port (backward compatible with 100M bandwidth), realizing seamless bidirectional conversion between copper and fiber signals to satisfy multi-terminal access demands.
The Ethernet ports support flexible switching between half/full-duplex modes for compatibility with legacy and new network devices. With a rugged aluminum enclosure and -40°C~75°C wide temperature tolerance, it maintains consistent and reliable performance in extreme industrial environments like industrial workshops, outdoor security monitoring systems, and railway communication networks.

►   2 x 10/100/1000BASE-T RJ45 Auto-MDI/MDI-X Ports

►   1 x 1000BASE-X SC Port(Fiber Interface: LC/ST/FC Optional)

►   Supports Full/Half-duplex, Auto-negotiation

►   IEEE 802.3az Energy Efficient Ethernet (EEE)

►   Supports DIN-Rail & Wall-mount Installation

 IP40 Aluminum Case

►   Environmentally hardened  Operating Temperature: -40°C to 75°C (-40°F to 167°F)




IP Camera / Industrial Terminal
│
│ Ethernet Cable (Within 100m)
▼
[This Device: 2RJ45 + 1SC Industrial Gigabit Media Converter Non-PoE]
│
│ Single-mode / Multi-mode Fiber (2KM / 10KM / 20KM...)
▼
[Remote Side 1 Fiber 2 Ethernet Industrial Media Converter Non-PoE]
│
│ Ethernet Cable
▼
Core Switch / NVR Recorder / Aggregation Switch


Ethernet

Ethernet Standards

IEEE802.3 10Base-T, IEEE802.3u 100Base-TX, IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-X, IEEE 802.3az (EEE)


PoE Standards

-


Forwarding Mechanism

Store-and-Forward


Forwarding Rate

14,880pps (10Mbps), 148,800pps (100Mbps), 1,488,000pps (1000Mbps)


Packet Buffer Memory/Max Packet Length

1 Mbit/9K Bytes


Address Table Size

2K MAC Addresses

Interface

Connector/Optical Port

2x RJ45

1 x 1000Base-X SC

Electrical & Mechanical

Input Power

12~48VDC, 4-pin terminal block


Output Power

N/A


Power Consumption (Max.)

5W


LED Indicators

PWR (Power Status), L/A (Data LINK Status), SPD (Ethernet Status), 100M/1000M (Fiber LINK Status)


Dimensions (WxDxH)

95 x 70 x 30 mm


Weight

0.25Kg

Environmental

Operating Temperature

-40°C to 75°C (-40°F to 167°F)


Storage Temperature

-40°C to 85°C (-40°F to 185°F)


Relative Humidity

5% to 95% non-condensing


MTBF

> 200,000 hrs



Model

Description

WXA-I02G-1SFP

Mini Industrial Media Converter, 1-port 1000BASE-X + 2-port 10/100/1000BASE-T 12-48VDC

Mounting Options

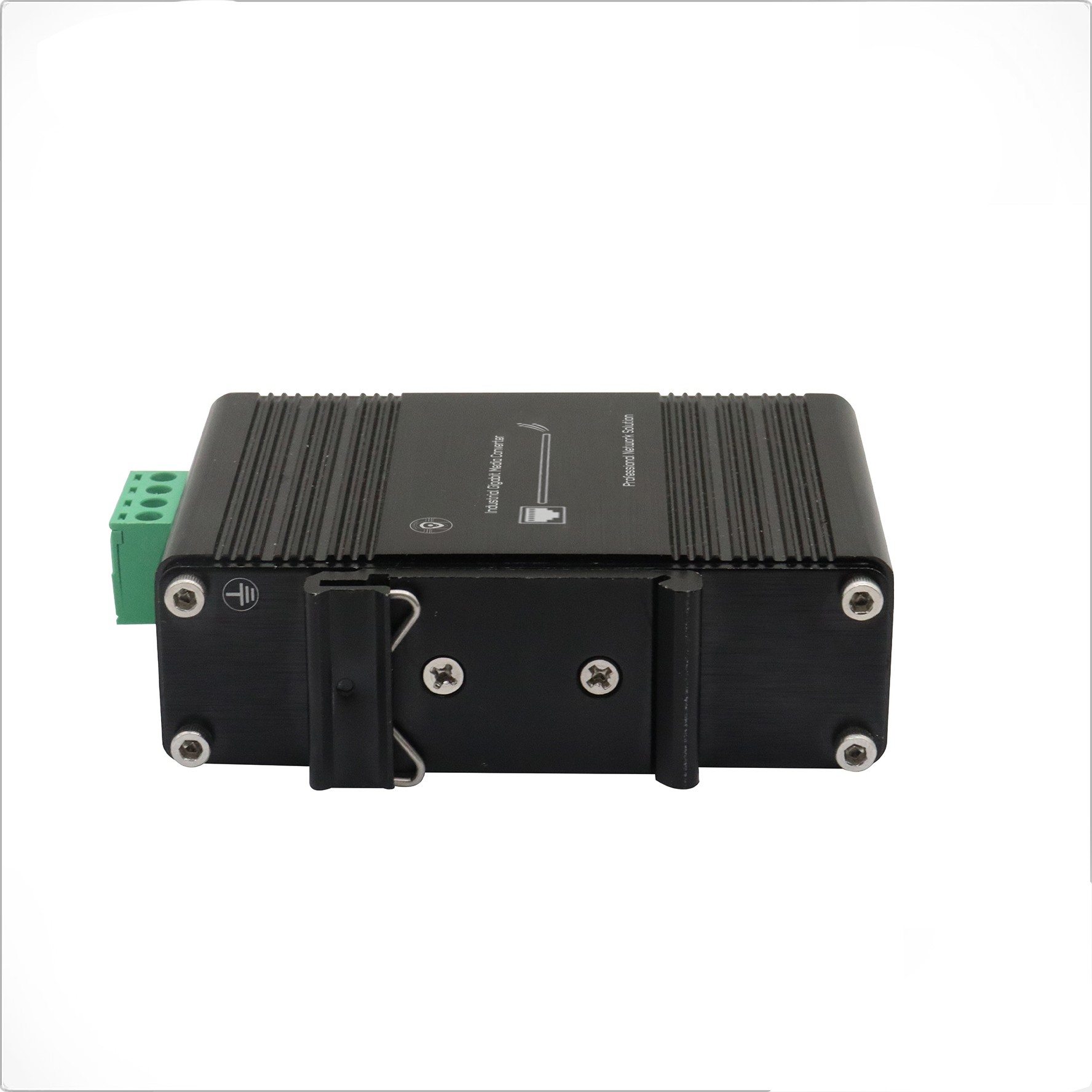

► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
