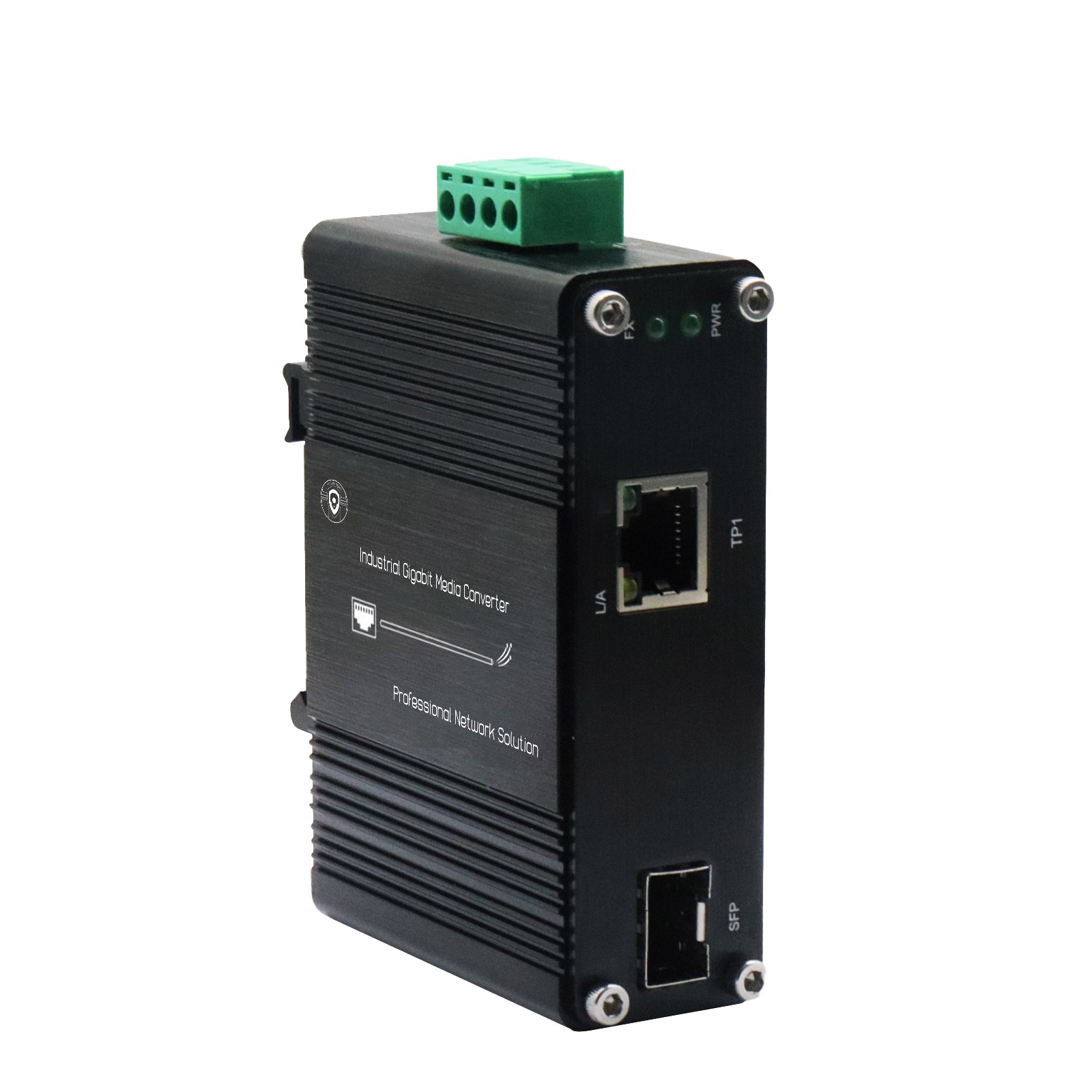

Mini Industrial Gigabit Media Converter 1-Port Gigabit RJ45 + 1-Port Gigabit FX

Shenzhen Weixiang an Technology Co., Ltd

position

Model:WXA-I01G-1SFP

► 1-Port 10/100/1000BASE-T RJ45 with auto MDI / MDI-X function

► 1-Port 100/1000Base-X

► IEEE 802.3az Energy Efficient Ethernet (EEE)

► 12-48VDC Terminal Block Power Input

￥ 0.00

Product Description

Model:WXA-I01G-1SFP

► 1-Port 10/100/1000BASE-T RJ45 with auto MDI / MDI-X function

► 1-Port 100/1000Base-X

► IEEE 802.3az Energy Efficient Ethernet (EEE)

► 12-48VDC Terminal Block Power Input

► 1 x 10/100/1000BASE-T RJ45 Auto-MDI/MDI-X Ports

► 1 x 100/1000BASE-X

► Supports Full/Half-duplex, Auto-negotiation

► IEEE 802.3az Energy Efficient Ethernet (EEE)

► Supports DIN-Rail & Wall-mount Installation

IP40 Aluminum Case

► Environmentally hardened Operating Temperature: -40°C to 75°C (-40°F to 167°F)

/		Non-PoE
Ethernet	Ethernet Standards	IEEE802.3 10Base-T, IEEE802.3u 100Base-TX, IEEE802.3ab 1000Base-T, IEEE802.3z 1000Base-X, IEEE 802.3az (EEE)
	PoE Standards	N/A
	Forwarding Mechanism	Store-and-Forward
	Forwarding Rate	14,880pps (10Mbps), 148,800pps (100Mbps), 1,488,000pps (1000Mbps)
	Packet Buffer Memory/Max Packet Length	1 Mbit/9K Bytes
	Address Table Size	2K MAC Addresses
Interface	Connector Optical Port	1x RJ45 1 x 100/1000Base-X
Electrical & Mechanical	Input Power	12~48VDC, 4-pin terminal block
	Output Power	N/A
	Power Consumption	3W (Max.)
	LED Indicators	PWR (Power Status), L/A (Data LINK Status), SPD (Ethernet Status), 100M/1000M (Fiber LINK Status)
	Dimensions (WxDxH)	95 x 70 x 30 mm
	Weight	0.25Kg
Environmental	Operating Temperature	-40°C to 75°C (-40°F to 167°F)
	Storage Temperature	-40°C to 85°C (-40°F to 185°F)
	Relative Humidity	5% to 95% non-condensing
	MTBF	> 200,000 hrs

Ordering Information

Model	Description
WXA-I01G-1SFP	Mini Industrial Media Converter, 1-port 100/1000BASE-X + 1-port 10/100/1000BASE-T
Mounting Options	► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
