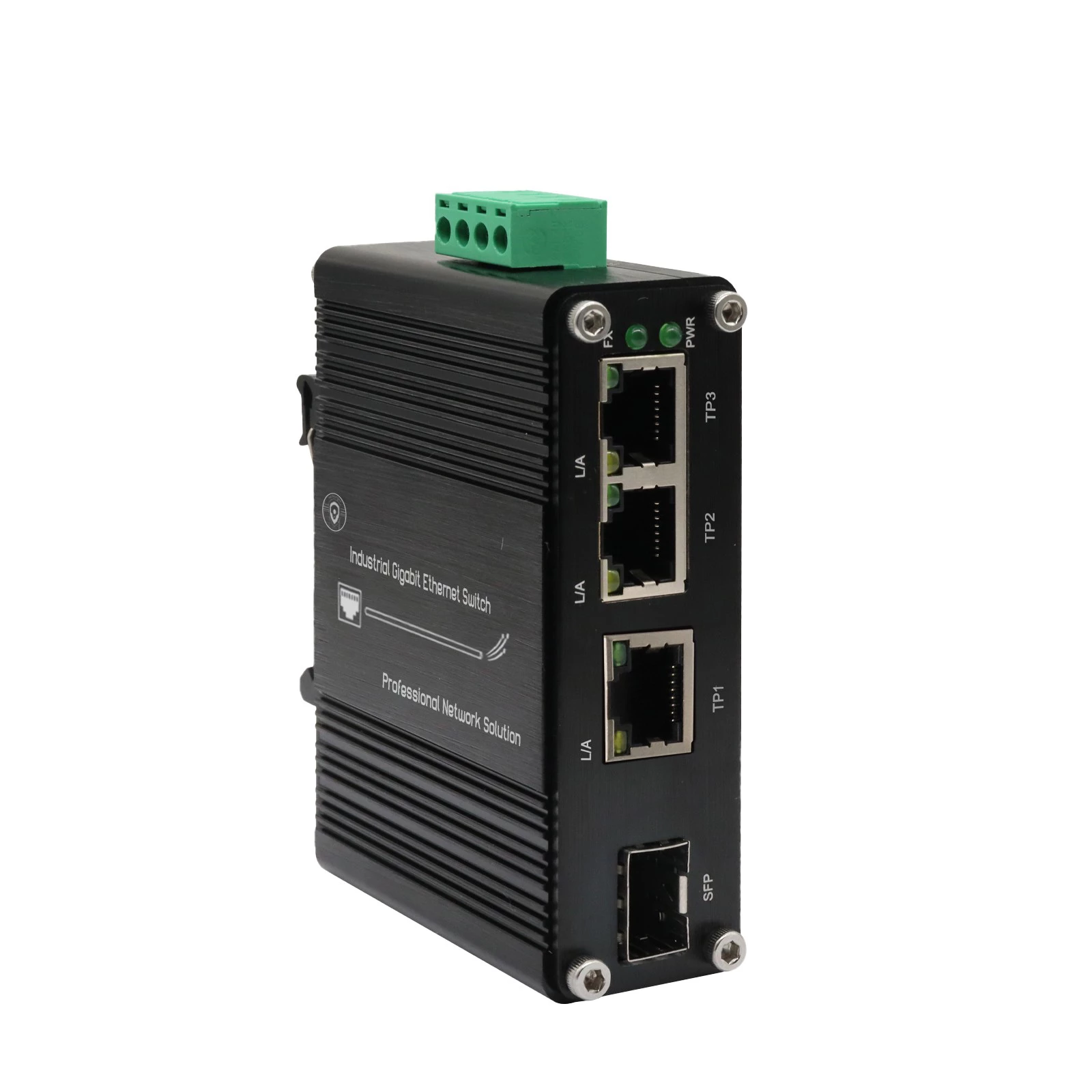

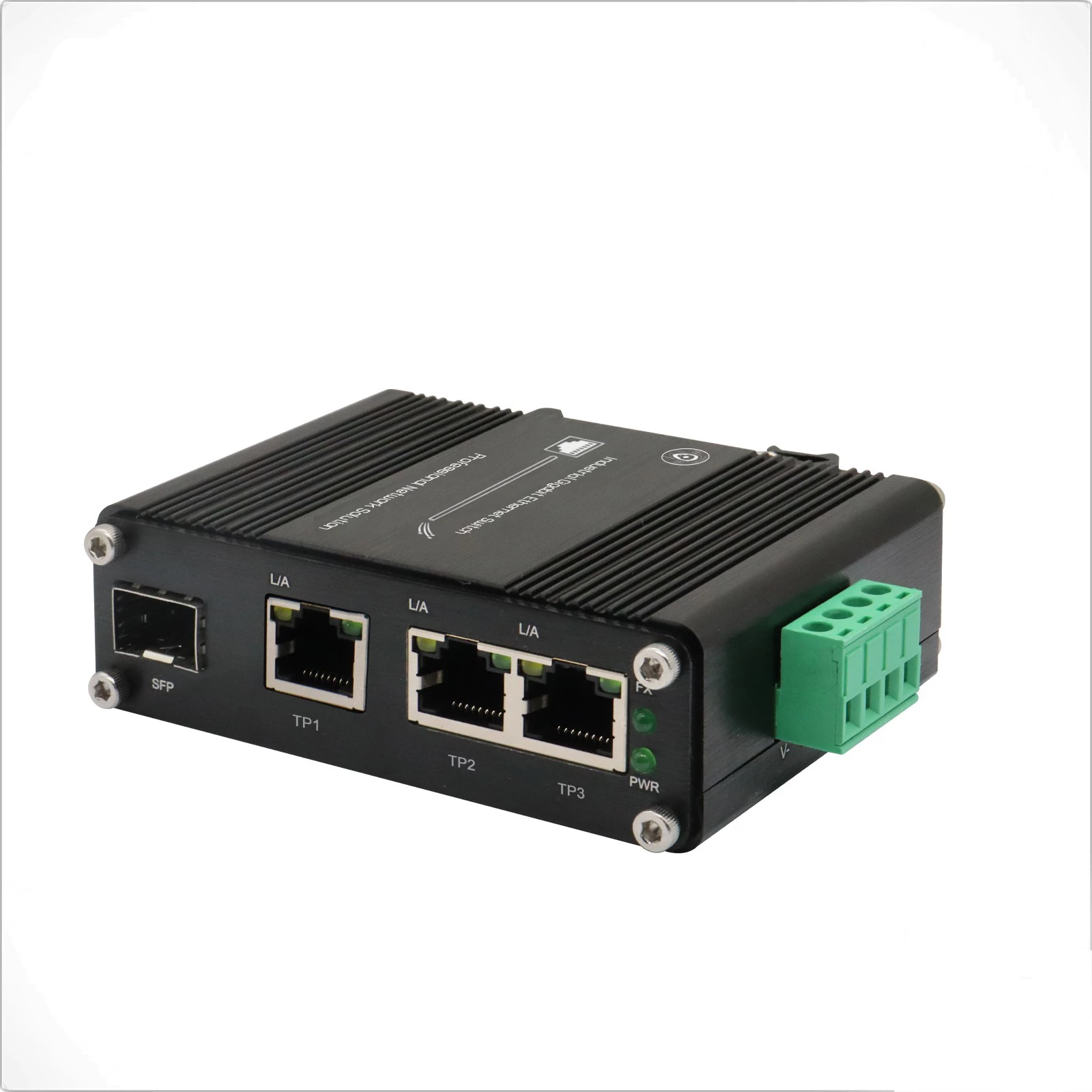

Mini Industrial 3-Port 10/100/1000T+1-Port 100/1000X SFP Gigabit Ethernet Switch

Mini Industrial 3-Port 10/100/1000T+1-Port 100/1000X SFP Gigabit Ethernet Switch

Model:WXA-I03G-1SFP

3-port 10/100/1000BASE-T RJ45 with auto MDI / MDI-X function
1 SFP Port, 100BASE-FX or 1000BASE-X Dual Mode (Auto-Detection)

12~48V DC Wide-Range Power Input


￥ 0.00
0.00

Product Description
Model:WXA-I03G-1SFP

3-port 10/100/1000BASE-T RJ45 with auto MDI / MDI-X function
1 SFP Port, 100BASE-FX or 1000BASE-X Dual Mode (Auto-Detection)

12~48V DC Wide-Range Power Input


WXA-I03G-1SFP is an industrial-grade Gigabit Ethernet Switch, featuring three 10/100/1000BASE-T copper ports and one 100/1000BASE-X SFP fiber port and packed in an IP40-rated rugged but compact-size case. It is a hardened grade product whose operating temperature range is -40°C to +75°C. The Ethernet port supports both half-duplex and full-duplex mode. Users can use different type of SFP modules (single-mode/multi-mode fiber, 1/2 core) as needed. With its reliable design and ease of use, the product is a great choice for integrating networks consisting of network devices such as IP cameras and wireless access points between remote locations.


►   3-port 10/100/1000BASE-T RJ45 with auto MDI / MDI-X function

►   1 SFP Port, 100BASE-FX or 1000BASE-X Dual Mode (Auto-Detection)

►   12-48VDC Terminal Block Power Input

►   Supports Full/Half-Duplex, Auto-Negotiation

►   IEEE 802.3az Energy Efficient Ethernet (EEE)

►   Supports DIN-Rail & Wall-mount installation

►   IP40 Aluminum Case

►   Environmentally Hardened Operating Temperature: -40°C to 75°C (-40°F to 167°F)


[IPC / WiFi AP / Field Sensor]      ↓ ↓ ↓ ↓ 3×Gigabit RJ45 Downlink Ports      ↓ Mini Industrial Switch (3GE+1SFP)      ↓ 1×SFP Fiber Uplink      ↓ Remote Central Network / Core Switch

Ethernet



Standards

IEEE 802.3/802.3u/802.3ab/802.3z/802.3x/802.3az (EEE)

Processing Type

Store-and-Forward

Forward Filter Rate

14,880/148,800/1,488,000 pps (10/100/1000Mbps)

Packet Buffer/Switch Fabric

4Mbit; 12Gbps

Max Packet Len/MAC Table

9K Bytes; 2K entries

Interface



Connector/Optical Port

3x RJ45; 1x SFP (1000Base-X/100Base-FX auto-detect)

Electrical & Mechanical



Input Power/Consumption

12~48VDC (4-pin terminal block); 5W Max

LED Indicators

PWR (Power), L/A (Ethernet LINK), FX (Fiber LINK)

Dimensions/Weight/Mounting

95×70×30mm; 0.25Kg; Aluminum Case (DIN-Rail/Wall-mount)

Environmental



Operating/Storage Temp

-40°C~75°C (-40°F~167°F); -40°C~85°C (-40°F~185°F)

Humidity/MTBF

5%~95% non-condensing; >200,000 hrs

Regulatory Approvals

Certifications

ISO9001, CE, FCC, RoHS

EMI/EMS

EN55022:2010+AC:2011 Class A; EN61000-3-2/3:2006+A1+A2/2013; EN55024:2010; IEC 61000-4-2/3/4/5/6/8



Model

Description

WXA-I03G-1SFP

Mini Industrial Ethernet Swtich, 1-port 100/1000X SFP Uplink + 3-port 10/100/1000M RJ45,12-48VDC

Mounting Options

► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
