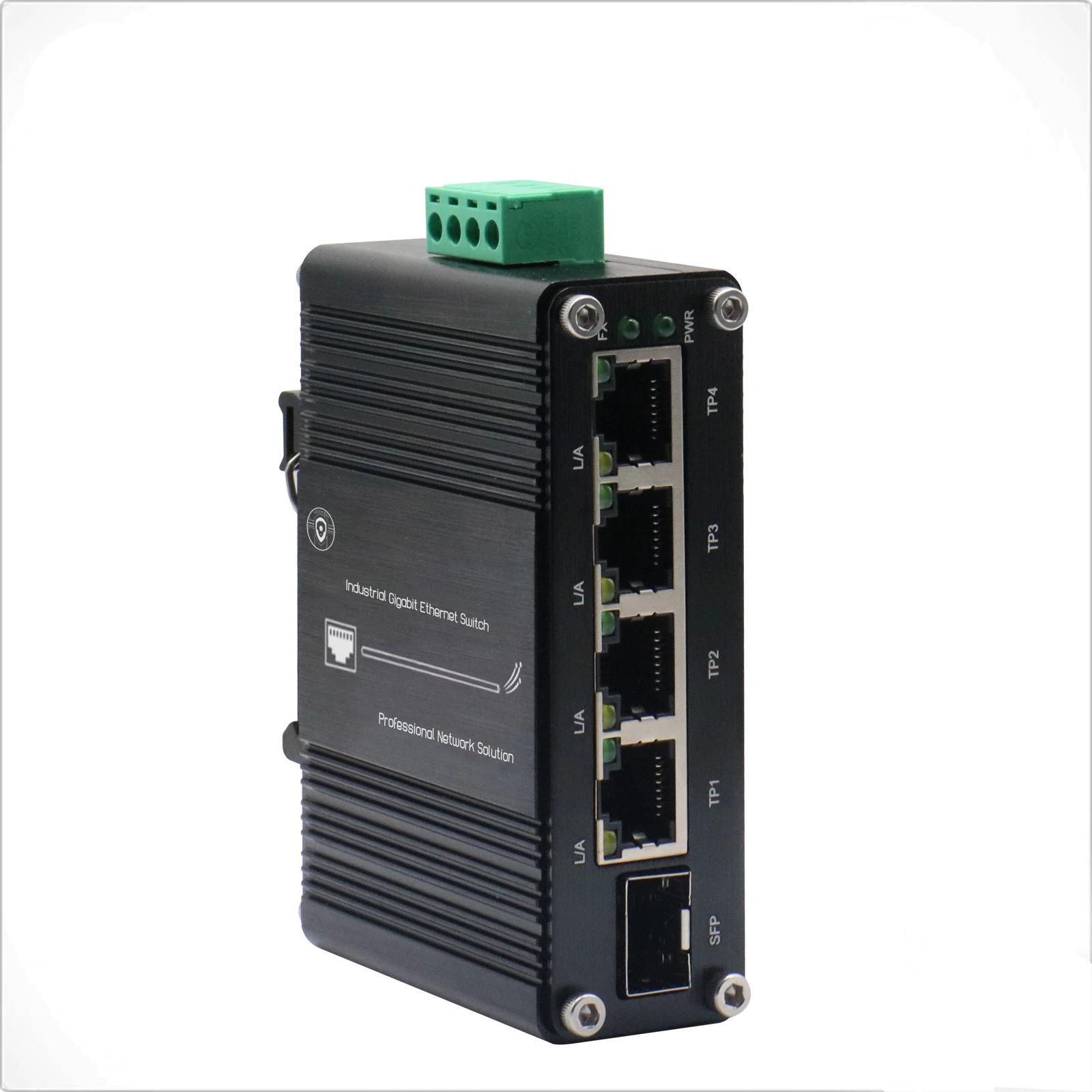

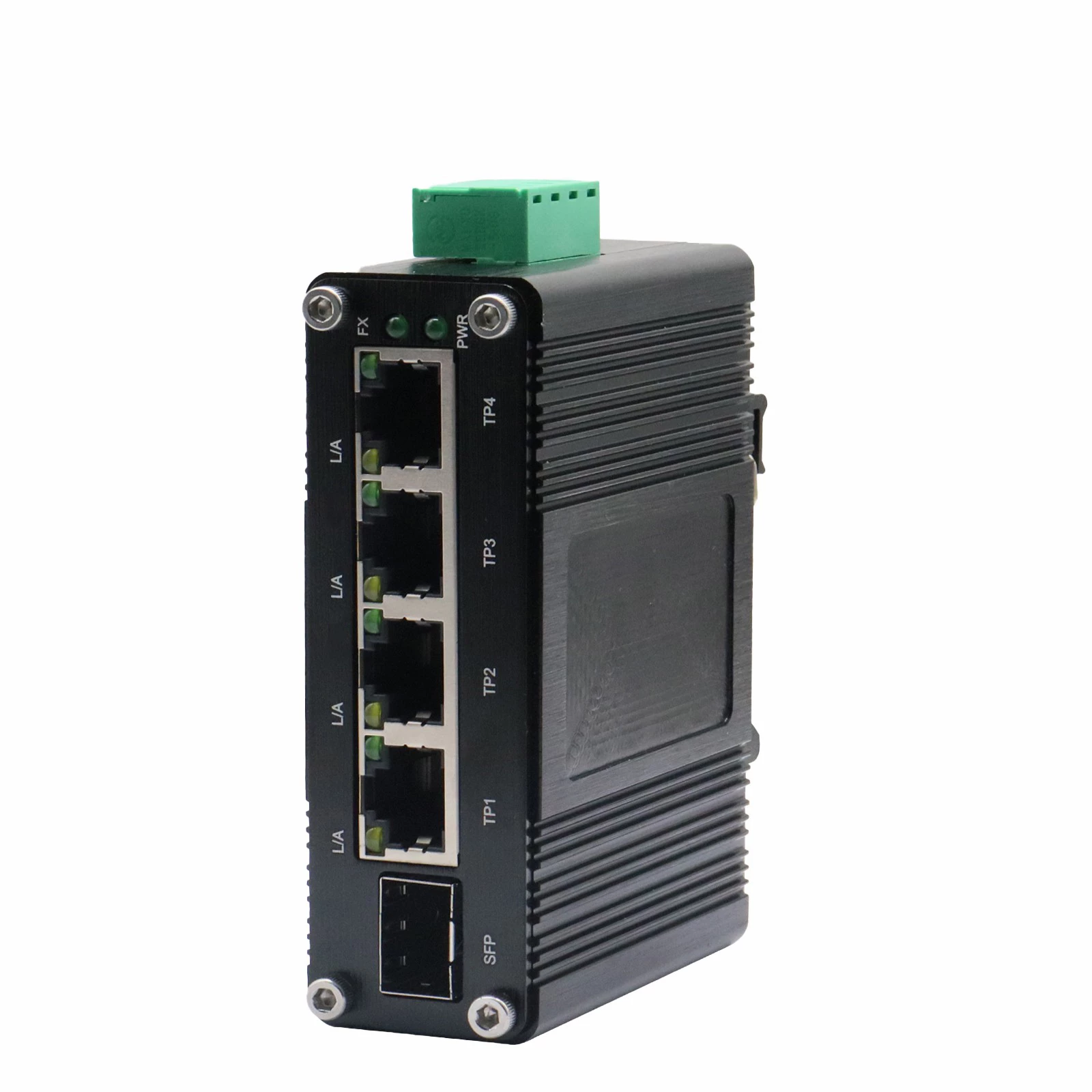

Mini Industrial 4-Port 10/100/1000T+1-Port 100/1000X SFP Gigabit Ethernet Switch

Mini Industrial 4-Port 10/100/1000T+1-Port 100/1000X SFP Gigabit Ethernet Switch

Model:WXA-I04G-1SFP

4-port 10/100/1000BASE-T RJ45 with auto MDI / MDI-X function
1 SFP Port, 100BASE-FX or 1000BASE-X Dual Mode (Auto-Detection)

12~48V DC Wide-Range Power Input


￥ 0.00
0.00

Product Description
Model:WXA-I04G-1SFP

4-port 10/100/1000BASE-T RJ45 with auto MDI / MDI-X function
1 SFP Port, 100BASE-FX or 1000BASE-X Dual Mode (Auto-Detection)

12~48V DC Wide-Range Power Input


WXA-I04G-1SFP is a mini industrial Gigabit Ethernet switch, featuring 4 x 10/100/1000BASE-T ports, 1 x 100/1000BASE-X SFP port, and a 12-48VDC wide-range power input. Engineered to meet rigorous industrial standards, it offers reliable, straightforward operation with resistance to vibration and shock, excelling in diverse harsh environments thanks to its wide operating temperature range.

Compliant with CE and FCC certifications, the switch has undergone 100% burn-in testing to ensure consistent performance in industrial applications. It serves as a cost-effective solution for industrial Ethernet connectivity needs.


►   4-port 10/100/1000BASE-T RJ45 with auto MDI / MDI-X function

►   1 SFP Port, 100BASE-FX or 1000BASE-X Dual Mode (Auto-Detection)

►   12-48VDC Terminal Block Power Input

►   Supports Full/Half-Duplex, Auto-Negotiation

►   IEEE 802.3az Energy Efficient Ethernet (EEE)

►   Supports DIN-Rail & Wall-mount installation

►   IP40 Aluminum Case

►   Environmentally Hardened Operating Temperature: -40°C to 75°C (-40°F to 167°F)


[IPC / WiFi AP / Field Sensor]      ↓ ↓ ↓ ↓ 4×Gigabit RJ45 Downlink Ports      ↓ Mini Industrial Switch (3GE+1SFP)      ↓ 1×SFP Fiber Uplink      ↓ Remote Central Network / Core Switch

Ethernet

Standards

IEEE 802.3/802.3u/802.3ab/802.3x/802.3az (EEE)

Forward & Filtering Rate

14,880/148,800/1,488,000 pps (10/100/1000Mbps)

Packet Buffer/Len

1Mbits; 10Kbytes

MAC Address Table

8K entries

Switch Fabric/Exchange Property

10Gbps non-blocking; Backplane:20Gbps, Forwarding rate:14.88Mpps

Interface

Connector (RJ45)

4x 10/100/1000Base-T

Optical Port

1x SFP (1000Base-X/100Base-FX auto-detect)

Environmental

Operating/Storage Temp

-40°C~80°C (-40°F~176°F); -40°C~85°C (-40°F~185°F)

Humidity/MTBF

5%~95% non-condensing; >200,000 hrs

Electrical & Mechanical

Input Power/Consumption

12~48VDC (4-Pin Terminal Block); <6W

Protection (Overload/Polarity)

Automatic Resettable; Present

Dimensions/Weight/Mounting

95×70×29mm; 0.25Kg; Aluminum Case (DIN-Rail/Wall-mount)

LED Indicators

PWR (Power), L/A (Link/Activity)

Regulatory Approvals

Certifications

ISO9001, EN55022:2010+AC:2011 Class A, EN61000-3-2/3:2006+A1+A2/2013, EN55032:2017, IEC 61000-4-2/3/4/5/6/8



Model

Description

WXA-I04G-1SFP

Mini Industrial Ethernet Swtich, 1-port 100/1000X SFP Uplink + 4-port 10/100/1000M RJ45,12-48VDC

Mounting Options

► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
