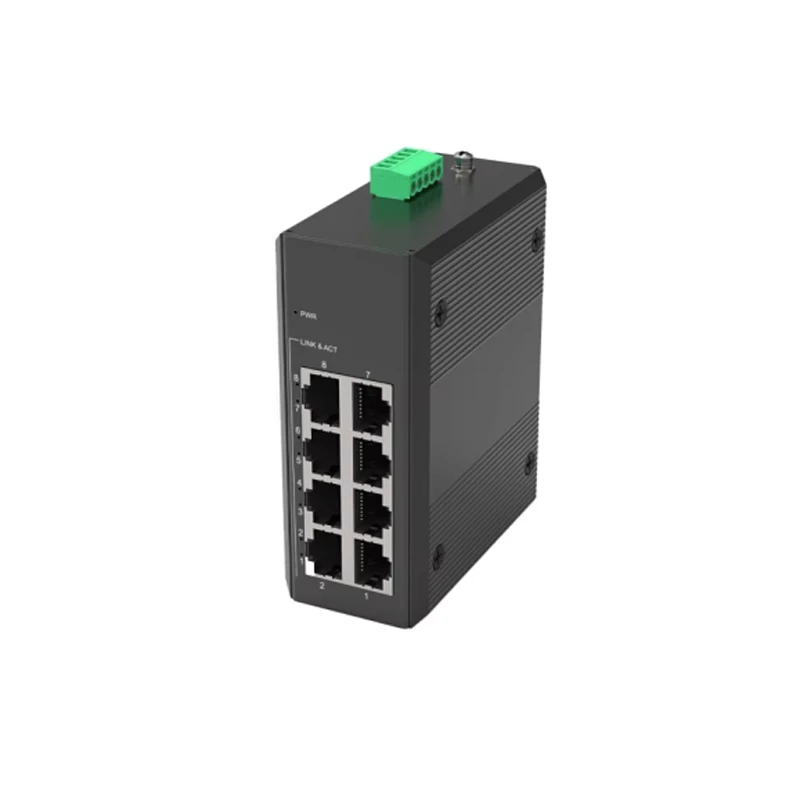

Industrial 8-Port Fast Ethernet Switch

Industrial 8-Port Fast Ethernet Switch

Model:WXA-I08G-100M

8-port 10/100BASE-T RJ45 with auto MDI / MDI-X function
12-56VDC Input


￥ 0.00
0.00

Product Description

Model:WXA-I08G-100M

8-port 10/100BASE-T RJ45 with auto MDI / MDI-X function
12-56VDC Input


This is an 8-port 10/100Mbps Fast Ethernet switch designed for small business networking. It provides a simple way to build stable and efficient network access.

Featuring a rugged design, it is ideal for industrial and outdoor surveillance applications and can operate reliably in harsh environments. The switch supports plug-and-play for quick and easy deployment. It can be installed via DIN-rail or wall mounting to suit different installation needs.

LED indicators allow real-time status monitoring of connected devices including IP cameras, wireless access points, and computers through the 10/100Base-TX RJ45 ports.


  •  Support up to 8 ports x 10/100Base-T
  •  Full/Half-duplex self-adaptation -MDI/MDIX automatic recognition
  • Jumbo Frame:9K，20G backplane bandwidth
  • Support IEEE802.3AZ high-efficiency energy-saving technology
  • 4KV anti-static protection
  • Support power input polarity protection, no worries about the reverse connection
  • Aluminium shell, fanless design
  • Plug and play

Field End Devices
IP Cameras / AP / Industrial Terminals
         │
         ▼
┌─────────────────────────────────────┐
              Industrial 8‑Port Fast Ethernet Switch
└───────────────┬─────────────────────┘
                                    │
                        RJ45 Access Ports
                                    │
                                    ▼
                   Control Room / Network Host

Ethernet

Standards

IEEE 802.3/802.3u/802.3ab/802.3x/802.3az (EEE)

Forward & Filtering Rate

14,880/148,800 pps (10/100Mbps)

Packet Buffer

2Mbits

MAC Address Table

4K entries

Switch Fabric

Backplane:20Gbps

Interface

RJ45 Port

8x 10/100Base-T RJ45 (auto-MDI/MDI-X)

Environmental

Operating/Storage Temp

-40°C~75°C; -40°C~85°C

Humidity/MTBF

5%~95% non-condensing; >200,000 hrs

Electrical & Mechanical

Input Power/Consumption

9~56VDC (Terminal Block); <6W

Protection (Overload/Polarity)

Automatic Resettable; Present

Dimensions/Weight/Mounting

100×78×40mm; 0.3Kg; Aluminum Case (DIN-Rail)

LED Indicators

RJ45 Link/Act: connect-always; data exchange-twinkle

Fiber Link/Act: connect-always; data exchange-twinkle

Regulatory Approvals

Certifications

CE,FCC,RoHS



Model

Description

WXA-I08G-100M

Industrial PoE Swtich, 8-port 10/100M RJ45, 12-56VDC

Mounting Options

► Din-rail Mount Bracket is included.
